7

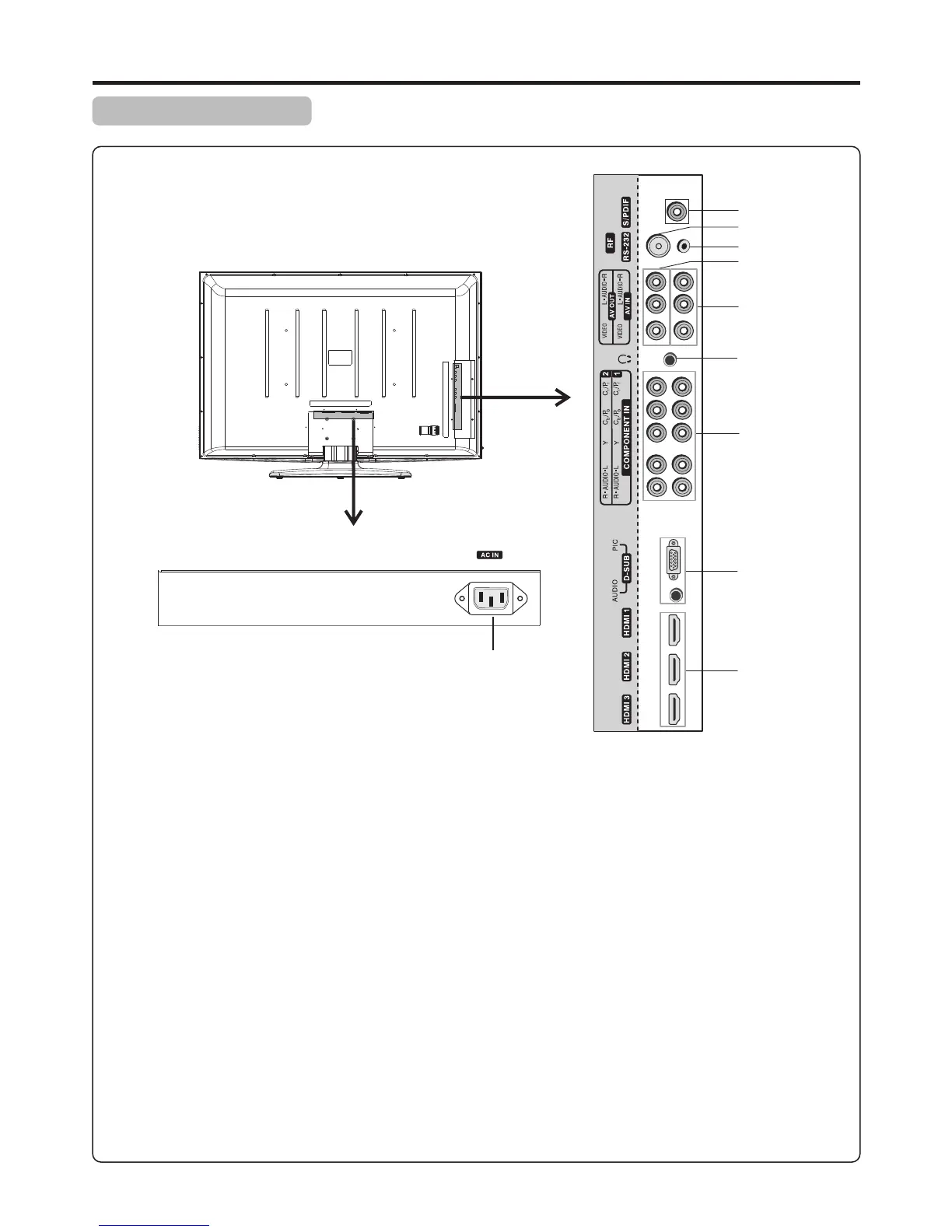

Main Unit (rear view)
Identification of Controls (Continued)
1. S/PDIF digital audio out terminal(coaxial)
Connect to the digital audio input of a digital audio component.
2. Antenna input
Connect to your cable system or outdoor antenna.
3. RS232 interface
For service use . The user cannot operate the unit through this terminal.
4. AV outputs(Video, Audio L, R)
Connect to your VCR to record programs.
5. AV inputs (Video, Audio L, R)
Receive video/audio signal from external sources such as VCR or DVD player.
6. Headphone jack
Connect to your headphones.
7. COMPONENT 1/2 inputs
Connect to the audio and component output jacks of a DVD player or Set-Top Box.
8. D-SUB input
Connect to the D-SUB/AUDIO output jack on your computer.
9. HDMI 1/2/3 interface
To connect with those equipments with HDMI or DVI interface, for example, Set-top box or DVD player. (A
HDMI-to-DVI adapter cable is required when you are connecting a DVI-equipped device to this TV.)
10. AC Power input
Connect to AC power cord.
7
9
8
5
6
4
3
2
1
10
