EVO1Y | LAB1Y Operating Instructions 11

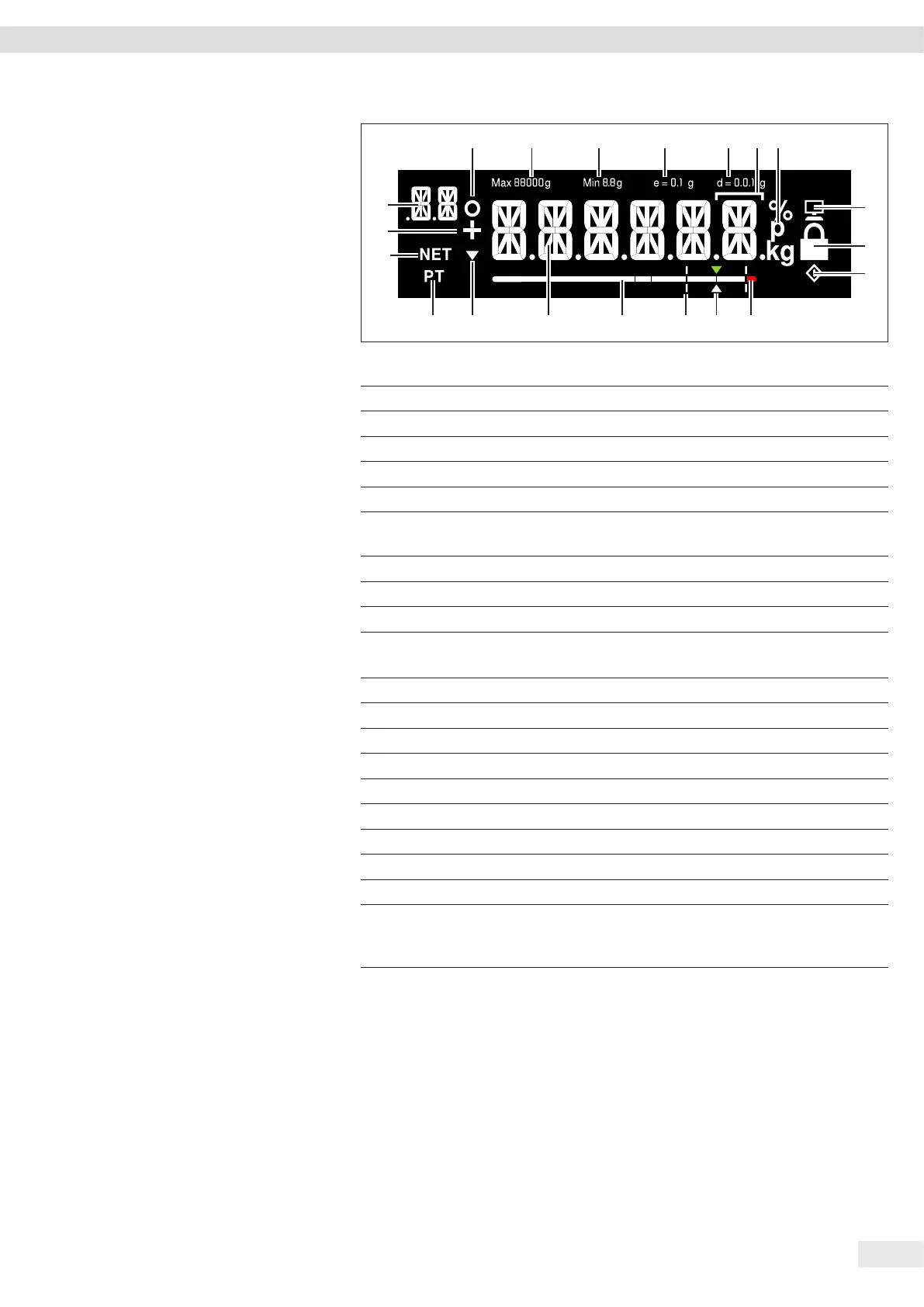

Device Overview
Item Function
1 Activated function in the menu list (see Chapter 3.4, page 12)
2 Maximum weighing range
3 Minimum load Min (verified models only)
4 Verification scale interval e (verified models only)
5 Readability of the scale (scale interval d)
6
In verified mode for devices where e ≠ d: The frame indicates a scale inter-
val (standard scale interval d is smaller than verification scale interval e)
7 Weight unit and stability indicator
8 Communication with the PC
9 Activate “LOCK” function, or function activated
10
l symbol: indicates that an internal process is in progress
Verified models: indicates an invalid weight value
11 Tolerance range has been exceeded
12 Target value for bar graph
13 Tolerance range
14 Bar graph: scaled display showing capacity usage (in percent)
15 Fourteen segment display
16 Trend display
17 Info on weight entry via application keypad (preset tare)
18 Net value
19 Plus (or minus) sign of the weight
20 Display:
− SETUP level
− Component/factor for paint-mixing applications
20
19
18
17 16 15 14 13 11
8
9
10
12
1 2 3 4 5 76
