- 8 -

1. boiler cover ( body)

2. insulation

3. water jacket

4. ash box

5. return water connector pipe

6. front charge – cleaning door

7. glow prevention grate

8. water grates

9. ceramic deflector

10. retort

11. furnace door

12. aeration canal lid of retort

13. ash box door

14. air intake dosage flap

15. air draft regulator

16. connecting strip

17. hot water connector pipe

18. upper washout hole cover

19. smoke conduit clearing hole

20. smoke throttle

21. smoke conduit

22. fuel storage bin

23. thermometer

24. controller

25. safety-valve

26. lateral washout hole door

27.feeder driver mechanism

28. revisory hole flap

29. feeder temperature sensor

30. blowing fan

31. blowdown connection

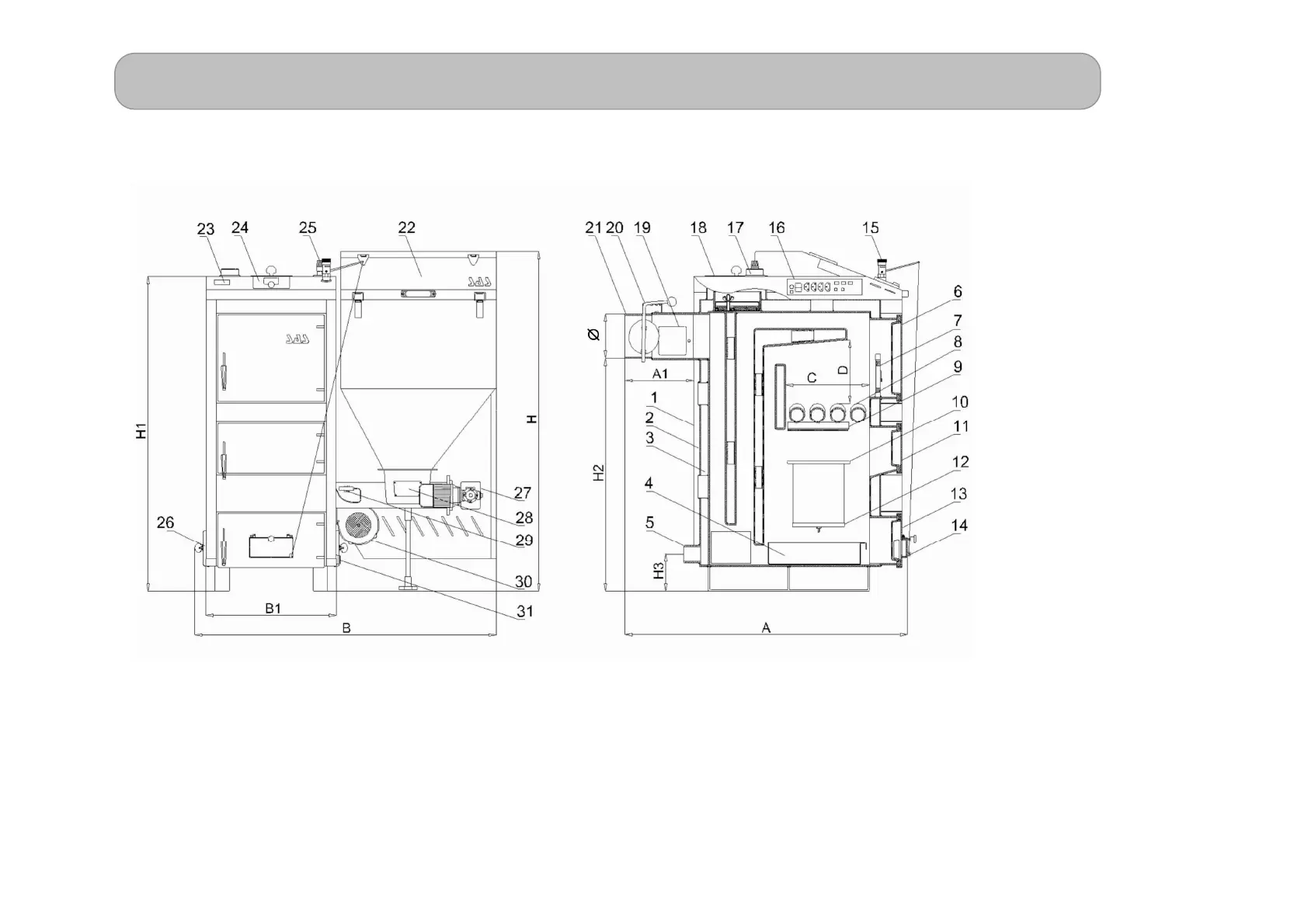

CONSTRUCTION SCHEME OF SAS MULTI BOILER
