SC12E
12 POINT STEEL CUTTERS

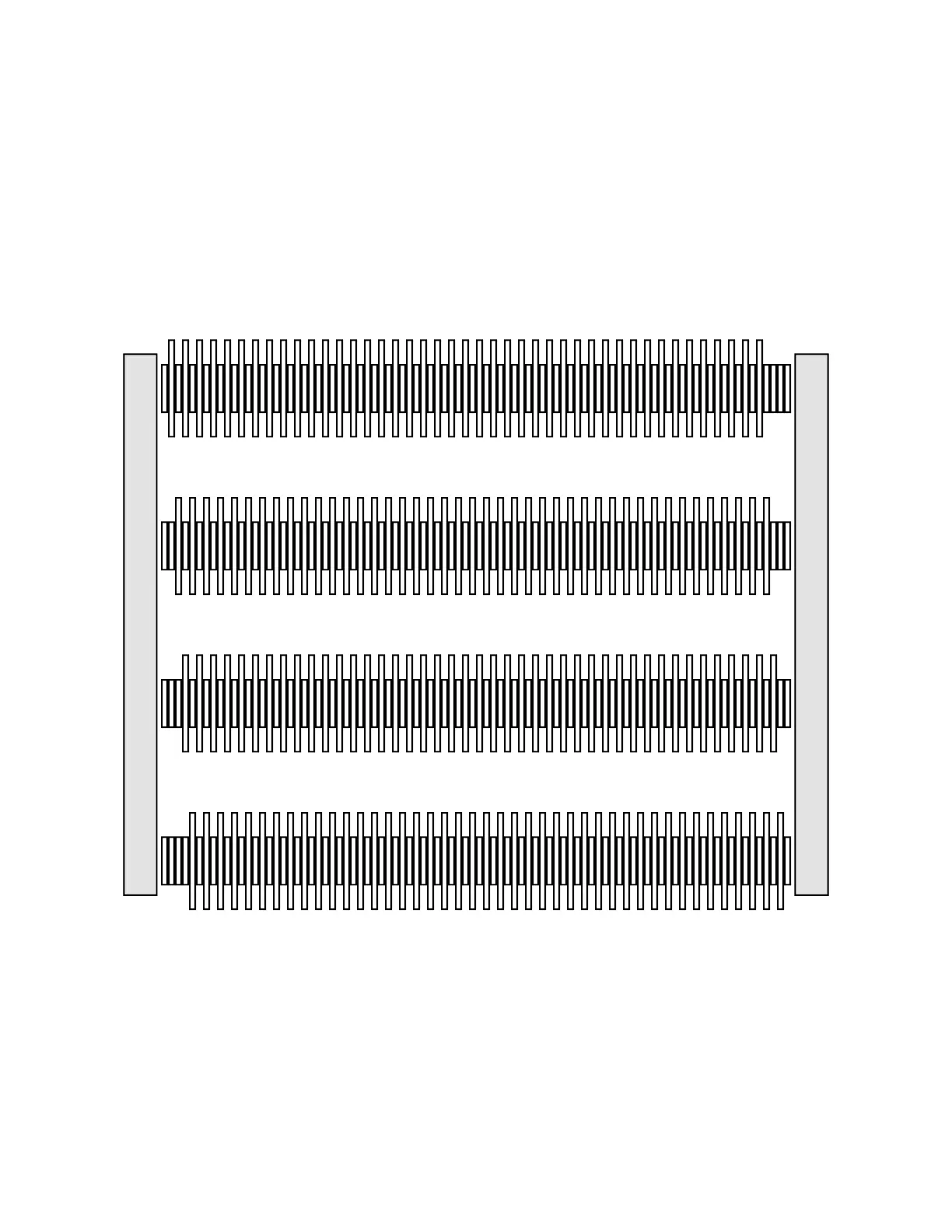

Theoretical Assembly
LB VA 30 S Cutter Set - 800.LB.172/184
Components: 172 Cutters - 630.03.07
184 Spacers - 630.03.06
Attention: There can be a difference in number of spacers, but there must be a clearance of 1/8”
to 3/16” between the supporting segments.
FULL CUTTING WIDTH
