2 ACX-210 SATEL
Operating temperature range...............................................................................-10°C...+55°C
Maximum humidity ..........................................................................................................93±3%
Dimensions ..................................................................................................... 21 x 41 x 13 mm
Weight.................................................................................................................................10 g

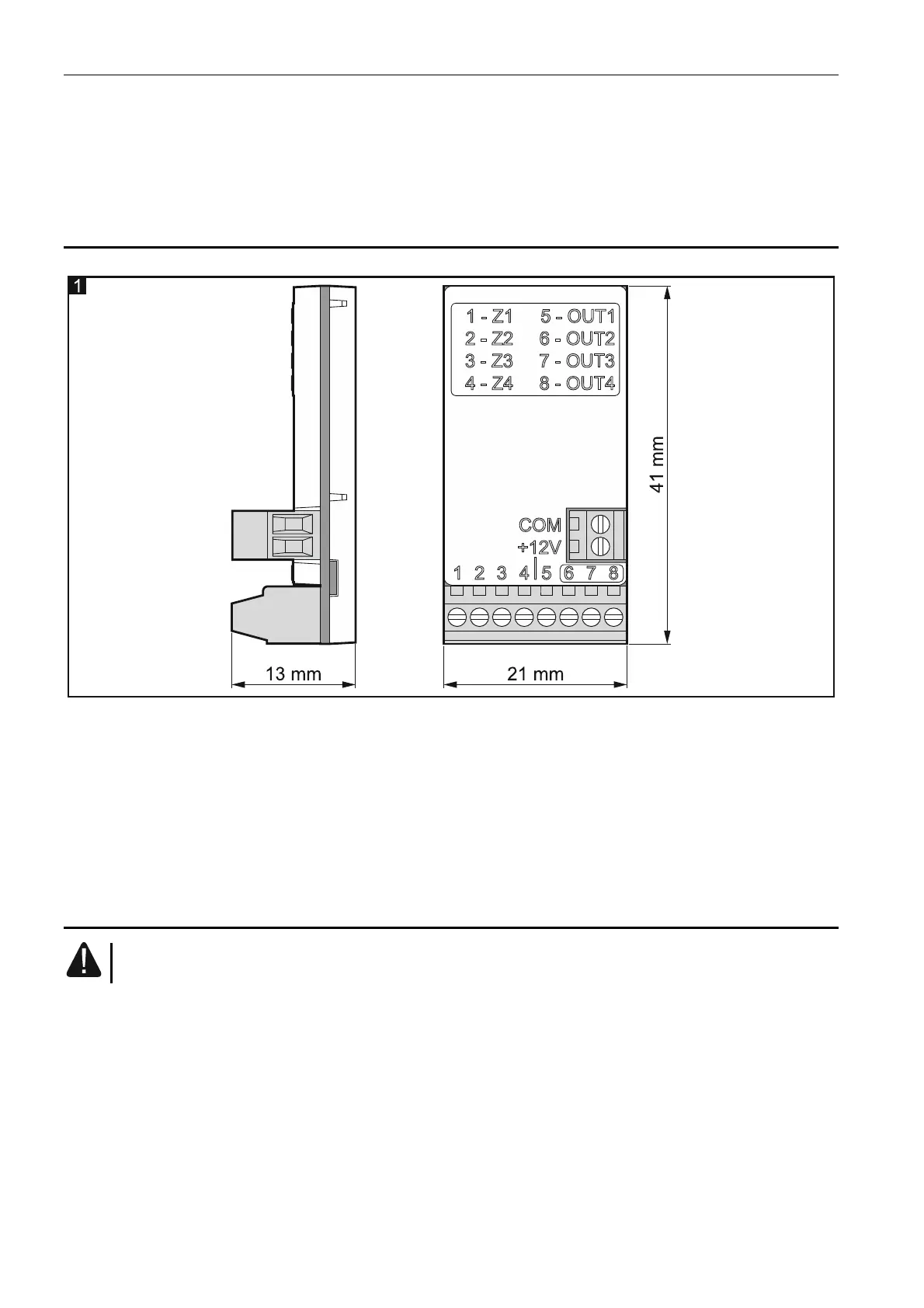

3. Module description
Terminals
COM - common ground.
+12V - power input.
1…4 - zone (Z1…Z4).
5…6 - OC type output (OUT1…OUT4) (shorted to common ground when in active
state).
4. Installation
Disconnect power before making any electrical connections.
The ACX-210 expander should be installed indoors, in spaces with normal air humidity.
Remember that thick walls, metal partitions, etc. will reduce the range of the radio signal. It is
recommended that the expander be mounted high above the floor. This will allow you to get a
better range of radio communication and avoid the risk of the expander being accidentally
covered by people moving around the premises. Installing the device in close vicinity of
electrical systems is not recommended, since it can adversely affect the range of radio
signal. Because of its mini size, the expander can be installed e.g. in a detector enclosure.
The expander may be powered directly from the control panel, from an expander with power
supply, or from a power supply unit with current limitation up to 3 A.
The following tools will be useful during installation:
blade screwdriver 1.8 mm,
