The INT-KWRL2 wireless keypad enables operation and programming of the INTEGRA and
INTEGRA Plus control panels with firmware version 1.19 (or newer). The device is designed
for work within the ABAX 2 / ABAX two-way wireless system. This manual applies to the
keypad with firmware version 3.00 (or newer), which is supported by:
ABAX 2: ACU-220 / ACU-280 controller,
ABAX: ACU-120 / ACU-270 controller (firmware version 5.04 or newer).
The ABAX 2 / ABAX controller must be connected to the expander bus (controller
terminals CKE and DTE) and the keypad bus (controller terminals CKM and DTM) of
the INTEGRA / INTEGRA Plus alarm control panel.
In the ACU-220 / ACU-280 controller, switches 9 and 10 must be set in OFF position.
In the ACU-120 / ACU-270 controller, switch 8 must be set in OFF position.
The keypad is not supported by the ARU-100 and ARU-200 radio signal repeaters or
by the INTEGRA 128-WRL control panel.

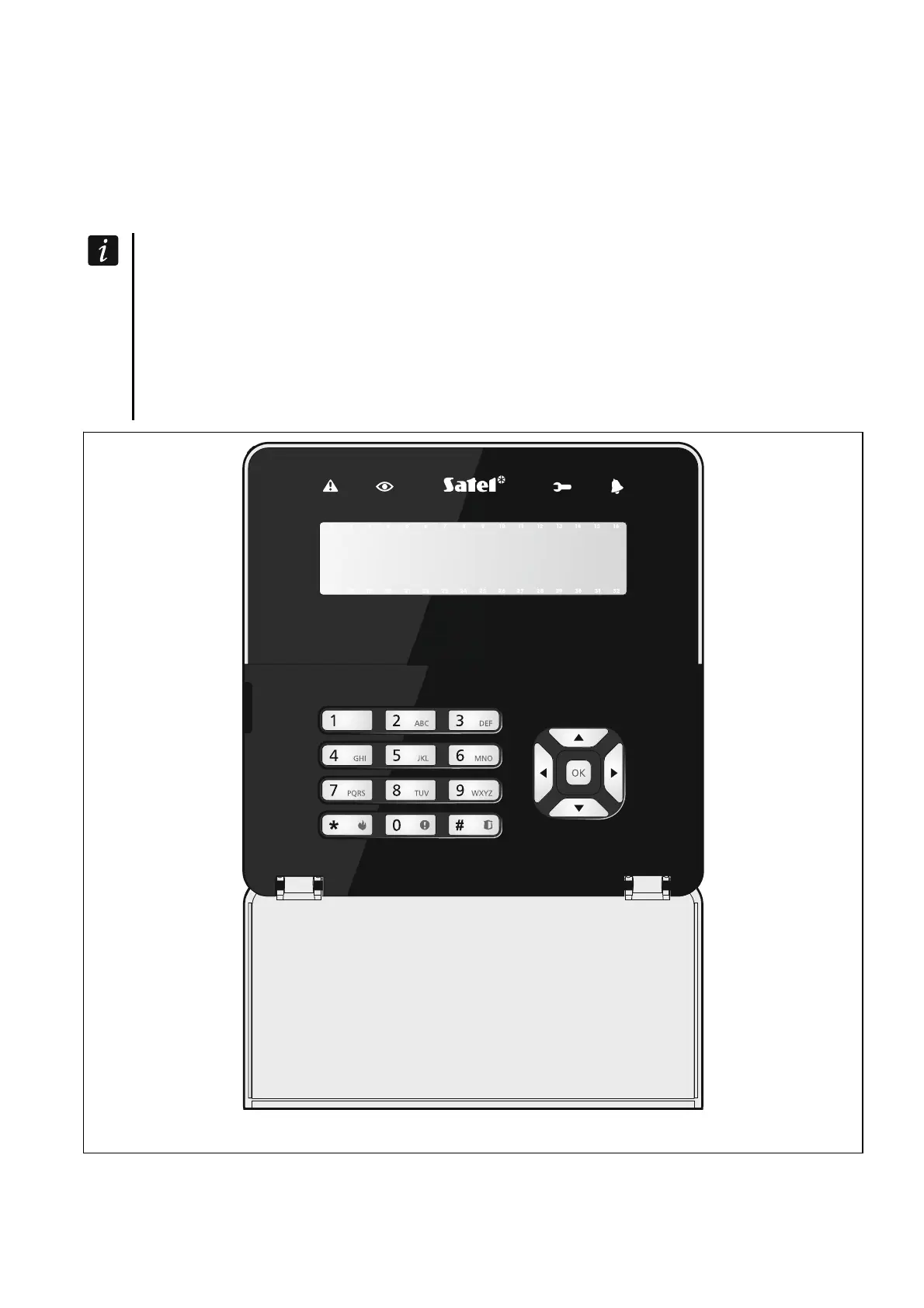

Fig. 1. INT-KWRL2 keypad.
