4 SATEL SP-500
Description of terminals:
+SO- – optical signaling terminals
+SA- – acoustic signaling terminals
TMP – tamper circuit terminals
R
INTEGRA 32
COM
OUT1
COM
COM COM COMOUT2
+KPD DTM CKM +EX CK
AUX
Z1
DT
OUT1 COMCOM
COM
Z1
OUT2
SP-500
SO TMP TMP
SA
+
+

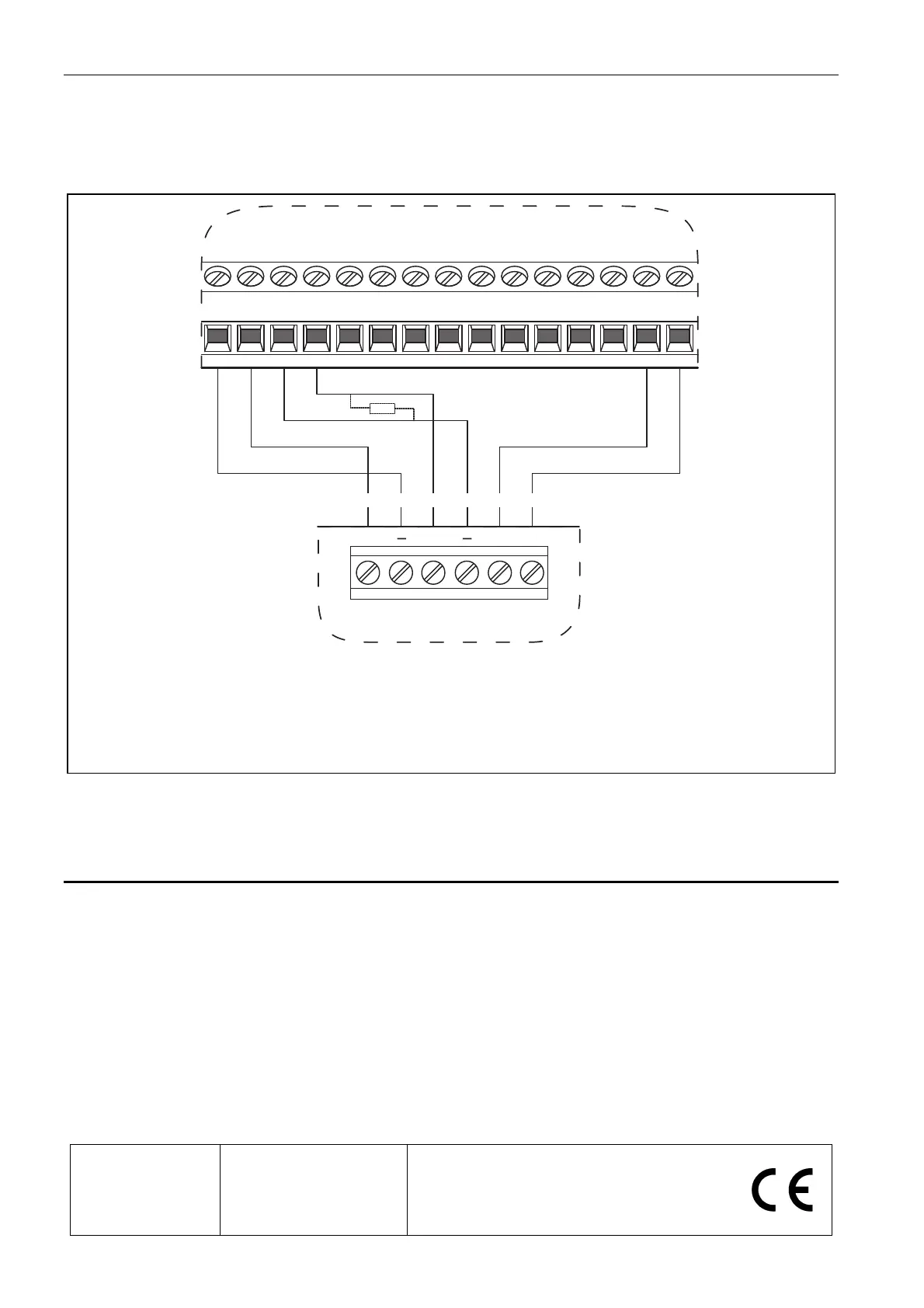

Fig. 5. Method of connecting the SP-500 siren to high-current outputs of INTEGRA 32
control panel. Output OUT1 triggers optical signaling and output OUT2 – acoustic signaling
(the high-current outputs with normal polarization – activation means that +12 V voltage is
supplied). Zone Z1 should be programmed as 24 h tamper zone, and outputs OUT1 and
OUT2 as alarm outputs (BURGLARY or FIRE/ BURGLARY).
Some control panels may require a resistor R (about 1kΩ) to be installed between the +SA-
terminals in the siren. Otherwise, the siren will buzz silently when switched off.
5. Technical Data
Supply voltage .................................................................................................... 12V DC ±20%
Average current consumption when signaling
acoustic signaling ...................................................................................... 250 mA
optical signaling ..........................................................................................35 mA
Sound intensity ................................................................................................... approx.120 dB
Environmental class ................................................................................................................ III
Working temperature......................................................................................... -35
o
C…+55
o
C
Siren dimensions ......................................................................................... 300 x 195 x 97mm
Siren weight ...................................................................................................................... 651 g
SATEL sp. z o.o.
ul. Schuberta 79
80-172 Gdańsk
POLAND
tel. (+48 58) 320 94 00
www.satel.pl
info@satel.pl
Latest EC declaration of conformity and
product approval certificates can be
downloaded from our Web site www.satel.pl
