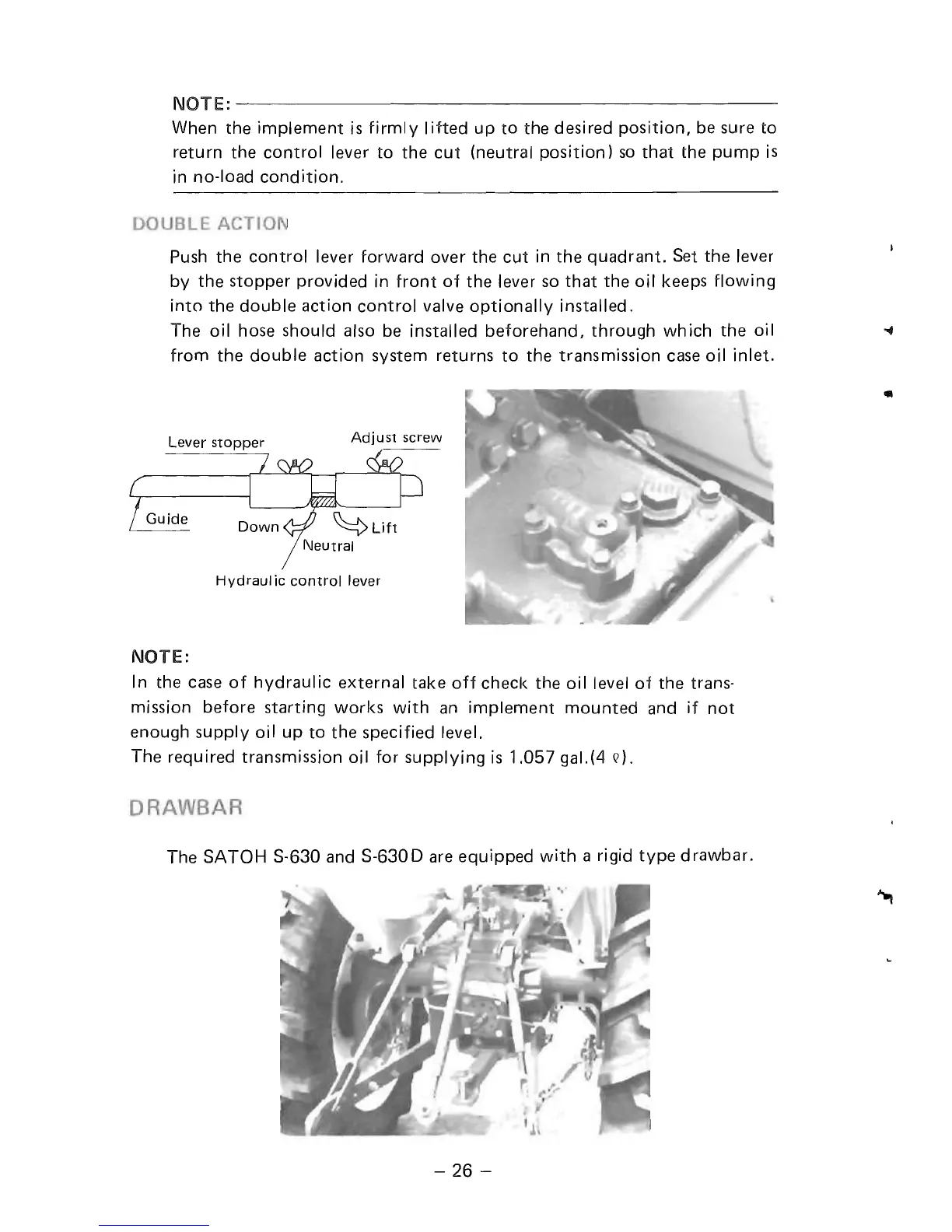

NOTE:--------------------------------------------
When
the
implement
is
firmly lifted up
to
the desired position, be sure
to
return the control lever
to
the
cut
(neutral position)
so
that
the
pump
is
in
no-load condition.
Push the control lever forward over the
cut
in
the
quadrant. Set
the
lever
by
the
stopper provided
in
front
of
the
lever so
that
the oil keeps flowing
into the double action control valve optionally installed.
The oil hose should also be installed beforehand, through which
the
oil
from
the
double action system returns
to
the transmission case oil inlet.
Adjust
screw
Hydraulic
control
lever
NOTE:
In
the case
of
hydraulic external take
off
check
the
oil
level
of
the trans-
mission before starting works with
an
implement mounted and
if
not
enough supply oil up
to
the
specified level.
The required transmission oil for supplying
is
1.057 gal.(4
Q).
The SATOH S-630 and
S-6300
are equipped with a rigid
type
drawbar.
-
26-
