3

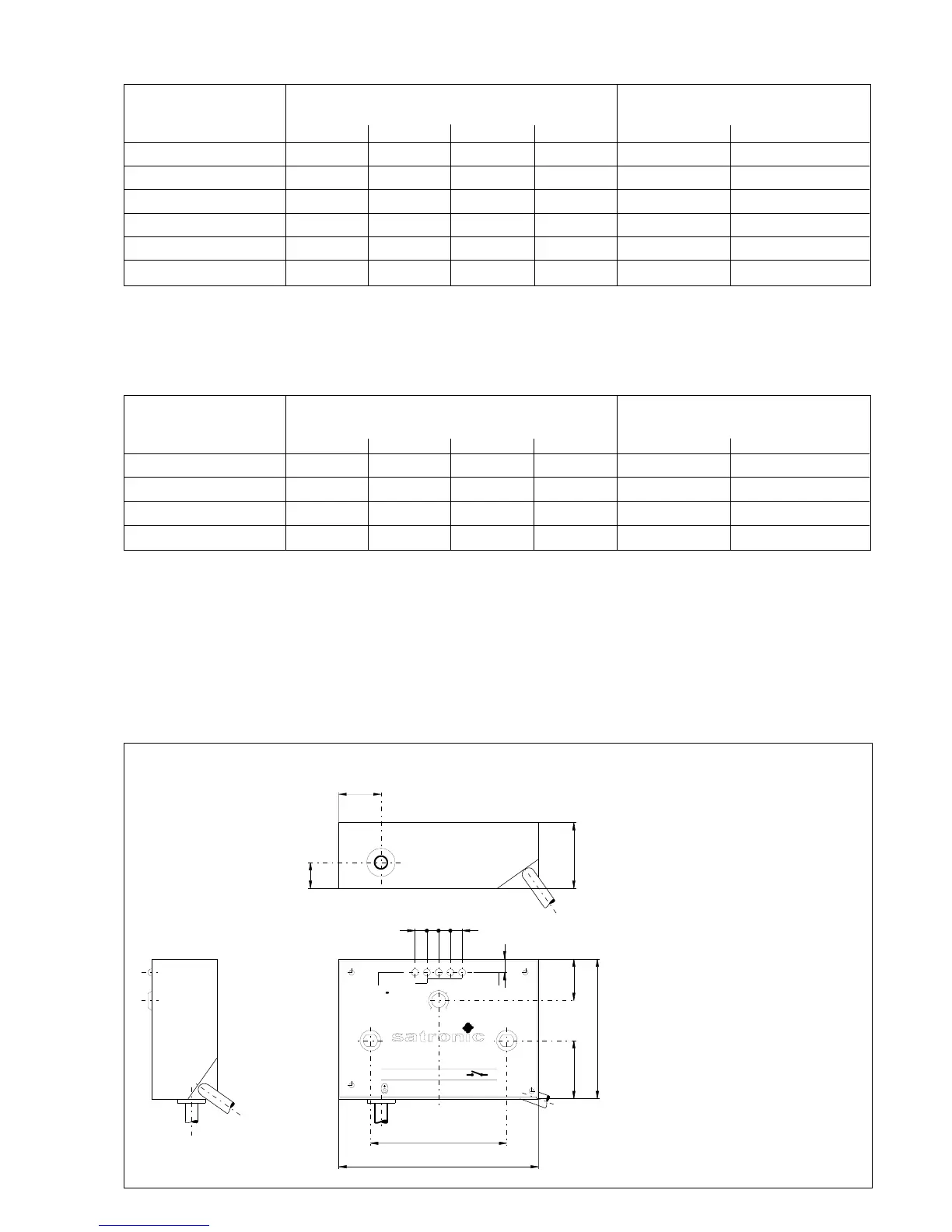

CONNECTING THE IRD 810 TO SATRONIC OIL BURNER CONTROL BOXES (PHOTO-CELL CONNECTION)
Control box type IRD 810 - cable core colours max. cable length IRD
corresponding to control box (m)
terminal no. brown light blue black black multiple cables laid separately
TF 801 9 8 1 2 2 10
TF 802 9 8 1 2 2 10
TF 830 9 8 1 2 2 10
TF 832 9 8 1 2 2 10
TF 834 9 8 1 2 2 10
TMO 720- 4 20 8 1 2 2 200
CONNECTING THE IRD 820 TO SATRONIC OIL BURNER CONTROL BOXES (IONISATION PROBE CONNECTION)
Control box type IRD 820 - cable core colours max. cable length IRD
corresponding to control box (m)
terminal no. brown black light blue multiple cables laid separately
MMI 810 9 2 8 2 200
MMI 812 9 2 8 2 200
MMG 810 9 2 8 2 200
TMG 740-2 / 740-3 20 1 8 2 200
IRD 810 AND 820 DETECTOR
50Hz 3VA˜220V
IRD 810
SR1
IP41
Swiss made by Satronic
s
06
24
3
15
bei Vorspulung
keine Anzeige
bei Betrieb
min. 3 LED
18
11
28
58
85
25 18
59.5
5
5 555
2A
Connection to burner control box,
standard cable length 0.5 m
IRD 810/820
