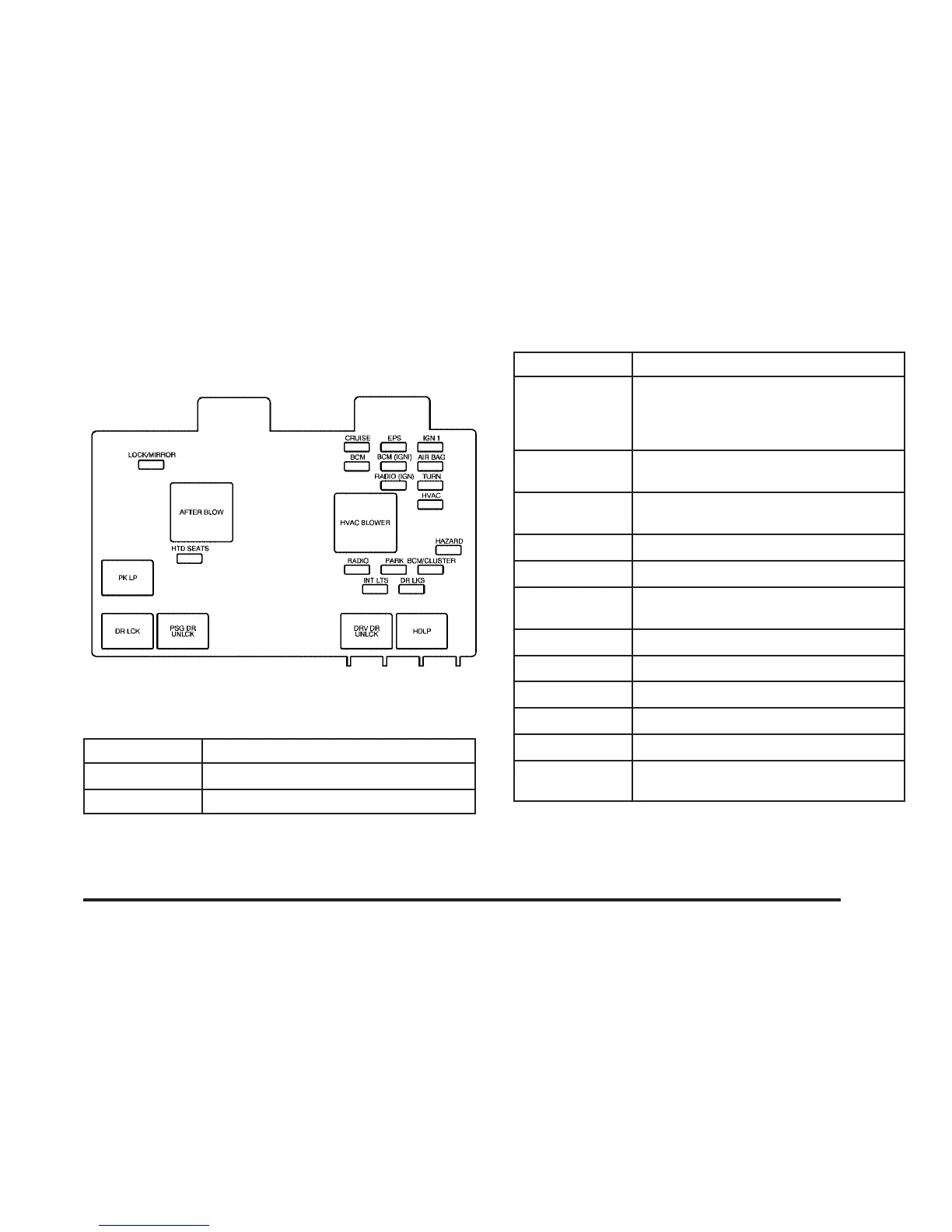

Instrument Panel Fuse Block
The instrument panel fuse block is located on the
passenger’s side of the lower console.
Fuses Usage
CRUISE Cruise Control Switch, Brake Switch
EPS Electronic Power Steering
Fuses Usage
IGN 1
Instrument Cluster, Brake
Transmission Shift Interlock
Solenoid, Traction Switch, Fog
Lamp Switch
LOCK/
MIRROR
Power Door Locks, Power Mirror,
Entry Control
BCM
Body Control Module, Front Wipers,
Windows, Sunroof
BCM (IGN 1) Body Control Module
AIR BAG Sensing and Diagnostic Module
RADIO (IGN)
Radio, Power Mirror, Premium
Radio Amplifier
TURN Turn Lamps
HVAC HVAC Control Head
HAZARD Hazard Lamps
HTD SEATS Heated Seats
RADIO Radio, Data Link Connector
PARK
Park Lamps, Taillamps, Side Marker
Lamps, License Lamps
381
