å

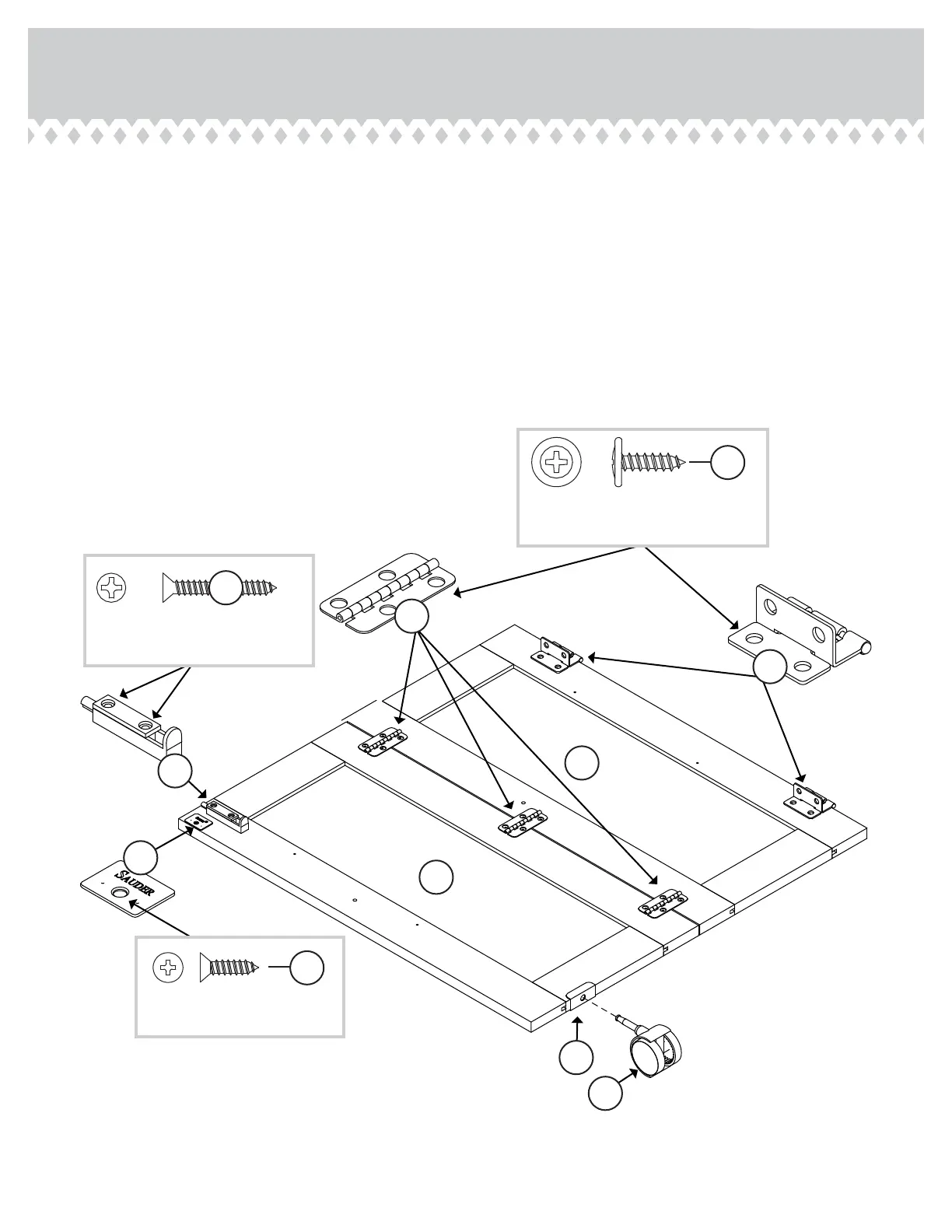

Fasten the LOOSE HINGES (U) to the LEFT DOOR (L). Use four BLACK 9/16" LARGE HEAD SCREWS (II).
å
Fasten the HINGES (W) to the CENTER DOOR (J) and LEFT DOOR (L). Use twelve BLACK 9/16" LARGE
HEAD SCREWS (II)
å
Fasten a STRIKE PLATE (Y) to the CENTER DOOR (J). Use a BLACK 1/2" FLAT HEAD SCREW (JJ).
å
Fasten a SLIDE CATCH (DD) to the CENTER DOOR (J). Use two BROWN 1" FLAT HEAD SCREW (HH).
å
Place a CASTER BRACKET (T) over the hole in the edge of the CENTER DOOR (J).
å
Push the stem of the CASTER (Z) through the hole in the CASTER BRACKET and completely into the hole in the
CENTER DOOR (J).
Step 11
411615www.sauder.com/services
Page 15
J
L
T
U
Z
Y
DD
W
BLACK 1/2” FLAT HEAD SCREW
(1 used for the STRIKE PLATE)
JJ
BLACK 9/16" LARGE HEAD SCREW
(16 used for the HINGES)
II
BROWN 1" FLAT HEAD SCREW
(2 used for the SLIDE CATCH)
HH
To Next Page
