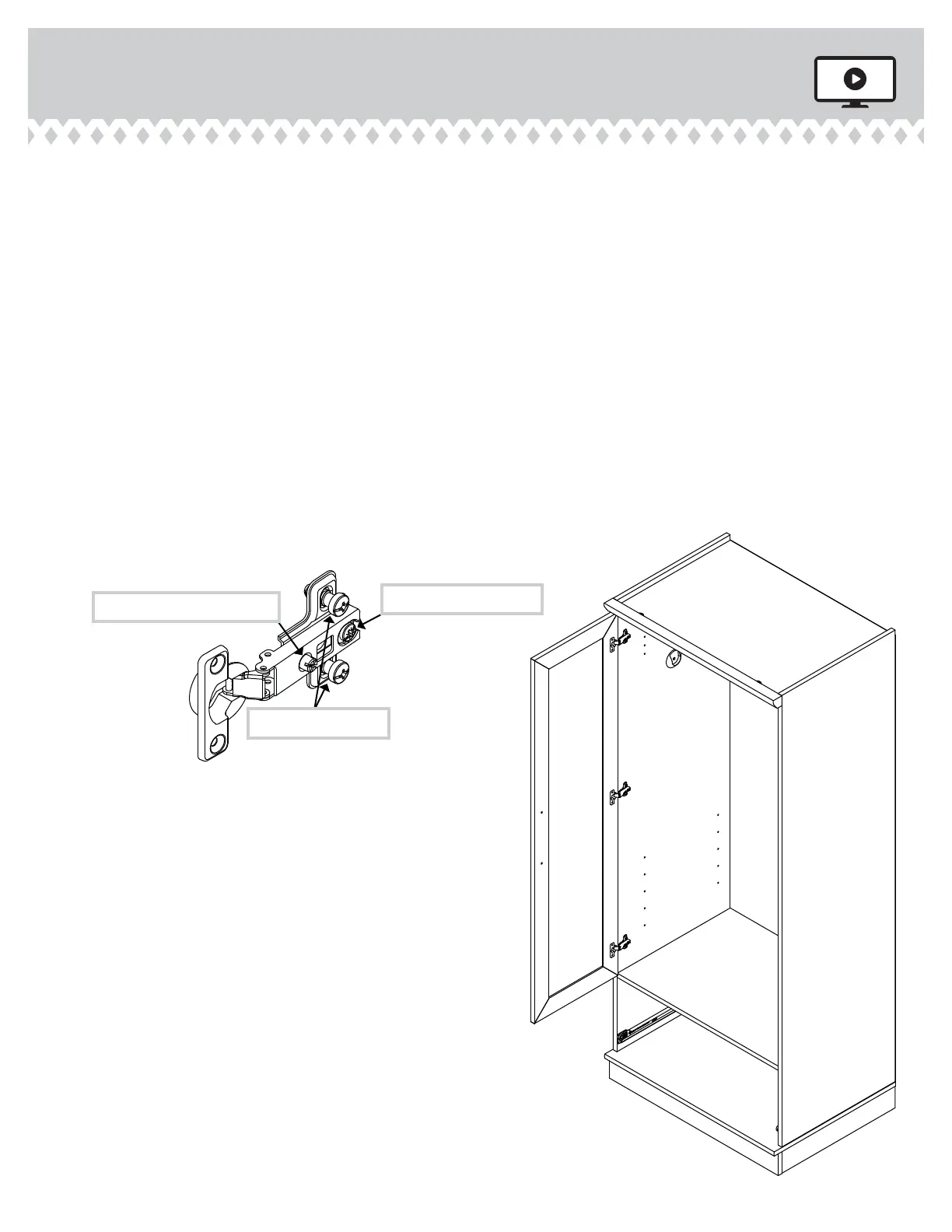

Refer to the enlarged diagram to identify the parts on the HINGES.
å
The DOORS may need some adjustments. Follow the text below to make
needed adjustments.
å
DOOR ADJUSTMENTS:
å
To adjust the DOORS from side to side (horizontal), loosen the mounting
screw several turns, then turn the adjusting screw in or out. Tighten the
mounting screw after making adjustments.
å
To adjust the DOORS up and down (vertical), loosen both vertical adjustment
screws. Move the DOORS up or down to the desired location. Tighten the
screws after making adjustments.
å
To adjust the DOORS in or out (depth), loosen the mounting screw one turn
and move the DOORS in or out, as needed. Tighten the mounting screw after
making adjustments.
Page 15
Adjusting screw (horizontal)
Mounting screw (depth)
(vertical adjustment)
