Step 23
å

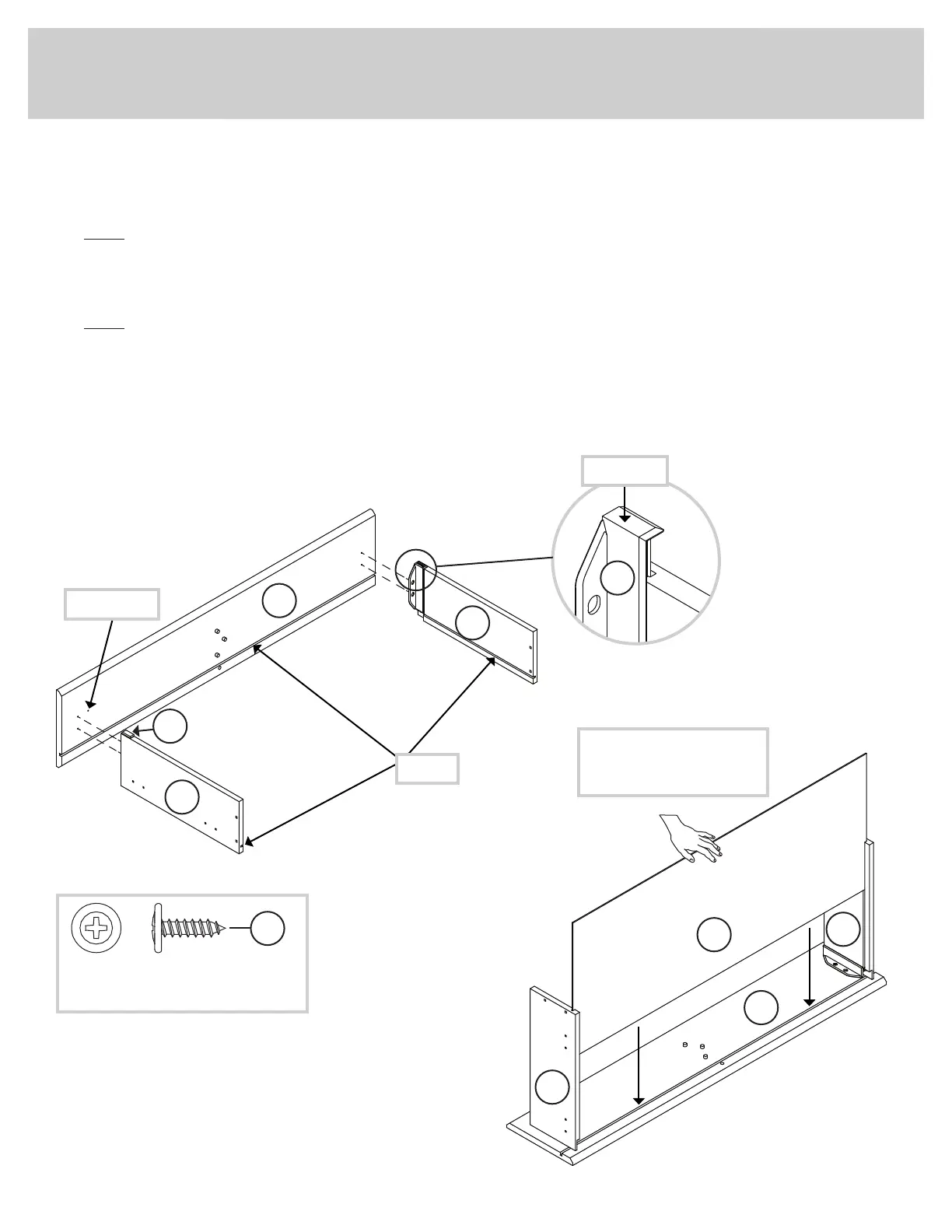

Pull the DRAWER FRONT BRACKETS (8G) apart and slide them into the grooves in the
DRAWER SIDES (D44 and D45). You may need to gently tap them in with a hammer.
å
NOTE: The DRAWER FRONT BRACKETS are marked "RH" and "LH" for easy identifi cation.
å
Fasten the RIGHT DRAWER FRONT (T) to the DRAWER FRONT BRACKETS (8G). Use four
BLACK 9/16" LARGE HEAD SCREWS (1S).
å
NOTE: The RIGHT DRAWER FRONT has a locator hole. This DRAWER FRONT will always
be positioned on the right side of the Storage Bed.
å
Slide the DRAWER BOTTOM (B19) into the grooves in the DRAWER SIDES (D44 and D45)
and RIGHT DRAWER FRONT (T).
å
Repeat this step for the other drawer using the LEFT DRAWER FRONT (S).
413852www.sauder.com/service
Page 27
T
T
BLACK 9/16" LARGE HEAD SCREW
(8 used in this step)
1S
D44
With the palm of your hand,
tap the DRAWER BOTTOM
down into the groove.
D45
D44
D45
B19
Unfi nished surface
8G
8G
Push down
Groove
Locator hole
