Step 1
Look for this icon. It means a
video assembly tip is available at
www.sauder.com/service/tips
å
Assemble your unit on a carpeted fl oor or on the empty carton
to avoid scratching your unit or the fl oor.
å

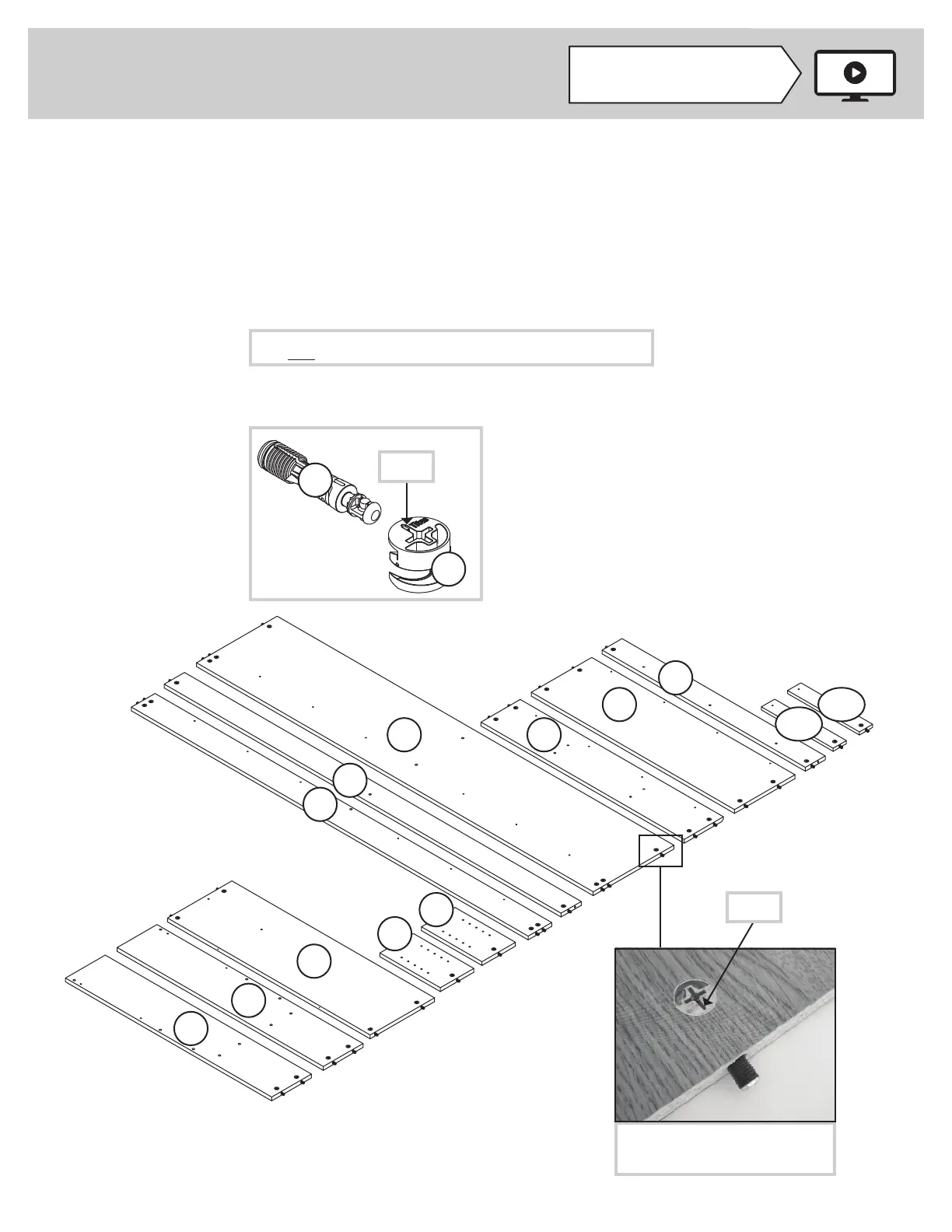

Push thirty-four HIDDEN CAMS (1F) into the ENDS (A and B),
UPRIGHTS (C2 and D), PANELS (G2, H2, and I2), SHELF (L), and
BRACES (M, N, and M67). Then, insert a CAM DOWEL (2F) into
each HIDDEN CAM.
413852www.sauder.com/service
Page 5
Do not tighten the HIDDEN CAMS in this step.
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
A
B
C2
D
G2
H2
I2
L
M
N
D
M67
M67
(34 used)
Arrow
1F
2F
