Sauder 415546 - Step 11: Drawer Assembly

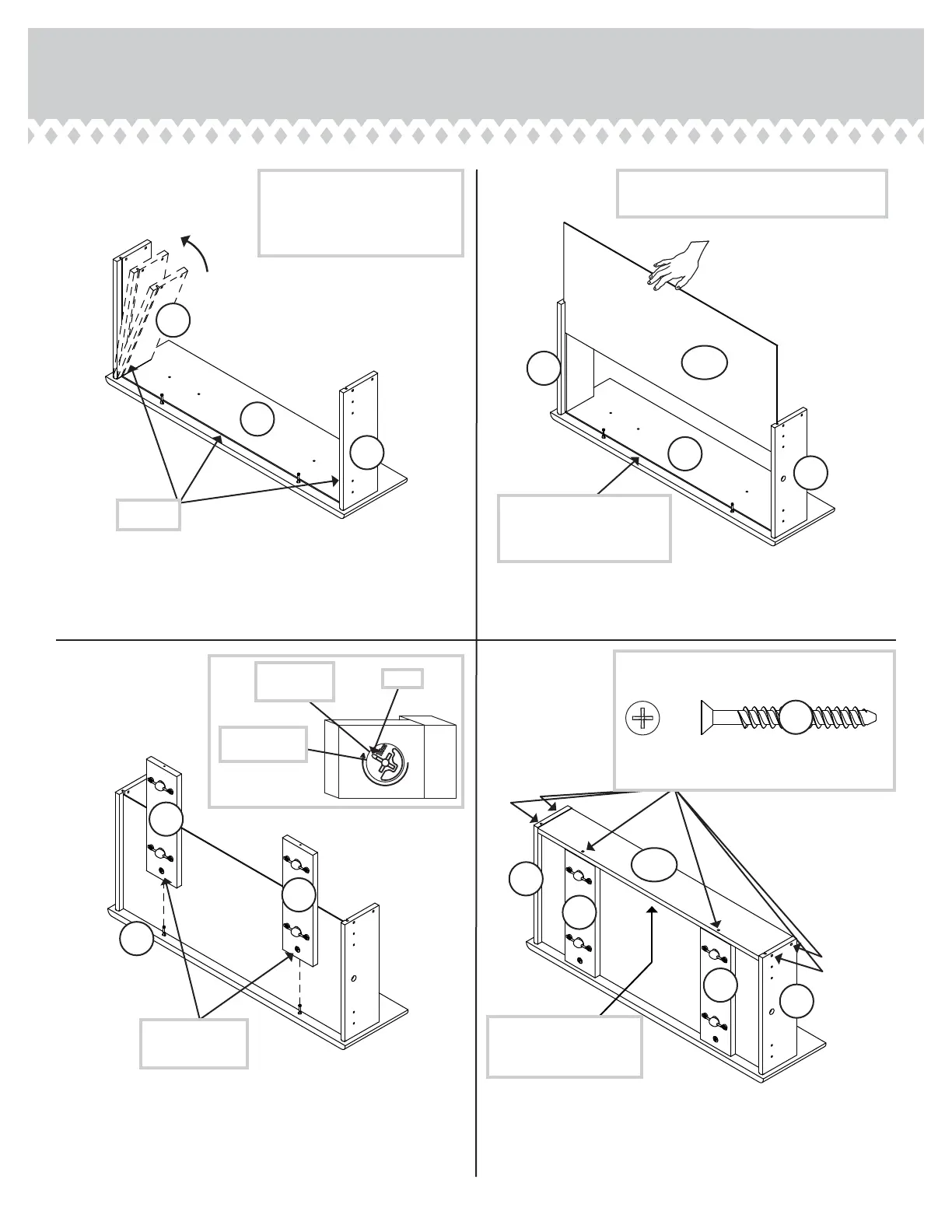

Step 11
å
Insert the DRAWER SIDES (D16 and D17) at an angle
into the slot at each end of the DRAWER FRONT (E2).
å
Slide the DRAWER BOTTOM (D987) into the grooves
in the DRAWER SIDES (D16 and D17) and DRAWER
FRONT (E2).
å
Fasten two DRAWER BRACES (G) to the DRAWER
FRONT (E2). Tighten two HIDDEN CAMS.
å
Fasten the DRAWER BACK (D219) to the DRAWER
SIDES (D16 and D17) and DRAWER BRACES (G). Use six
BLACK 1-9/16" FLAT HEAD SCREWS. Repeat this step
for the other drawer.
12
34
Be sure the DRAWER
BOTTOM inserts into the
DRAWER FRONT roove.
With the palm of your hand, tap the
DRAWER BOTTOM down into the roove.
Arrow
Maximum
210 derees
Minimum
190 derees
Unfi nished
surface
The tabs should insert freely
into the slots. Gently tilt the
DRAWER SIDES side to side
until the tabs slip into the slots.
E2
D16
D17
Groove
D987
E2
D16
D17
G
G
E2
Surface with
HIDDEN CAM
G
G
D16
D17
D219
30S
Start each screw a few turns before
completely tihtenin any of them.
BLACK 1-9/16" FLAT HEAD SCREW
(12 used in this step)
Be sure the DRAWER
BOTTOM inserts into the
DRAWER BACK roove.
415546www.sauder.com/services
Pae 15
