Step 3
å
NOTE: Before beginning this step, separate the NARROW EXTENSION
SETS (AAA and BBB) from the WIDE EXTENSION SETS (CCC and DDD).
Do not confuse these SETS once they are separated.
å

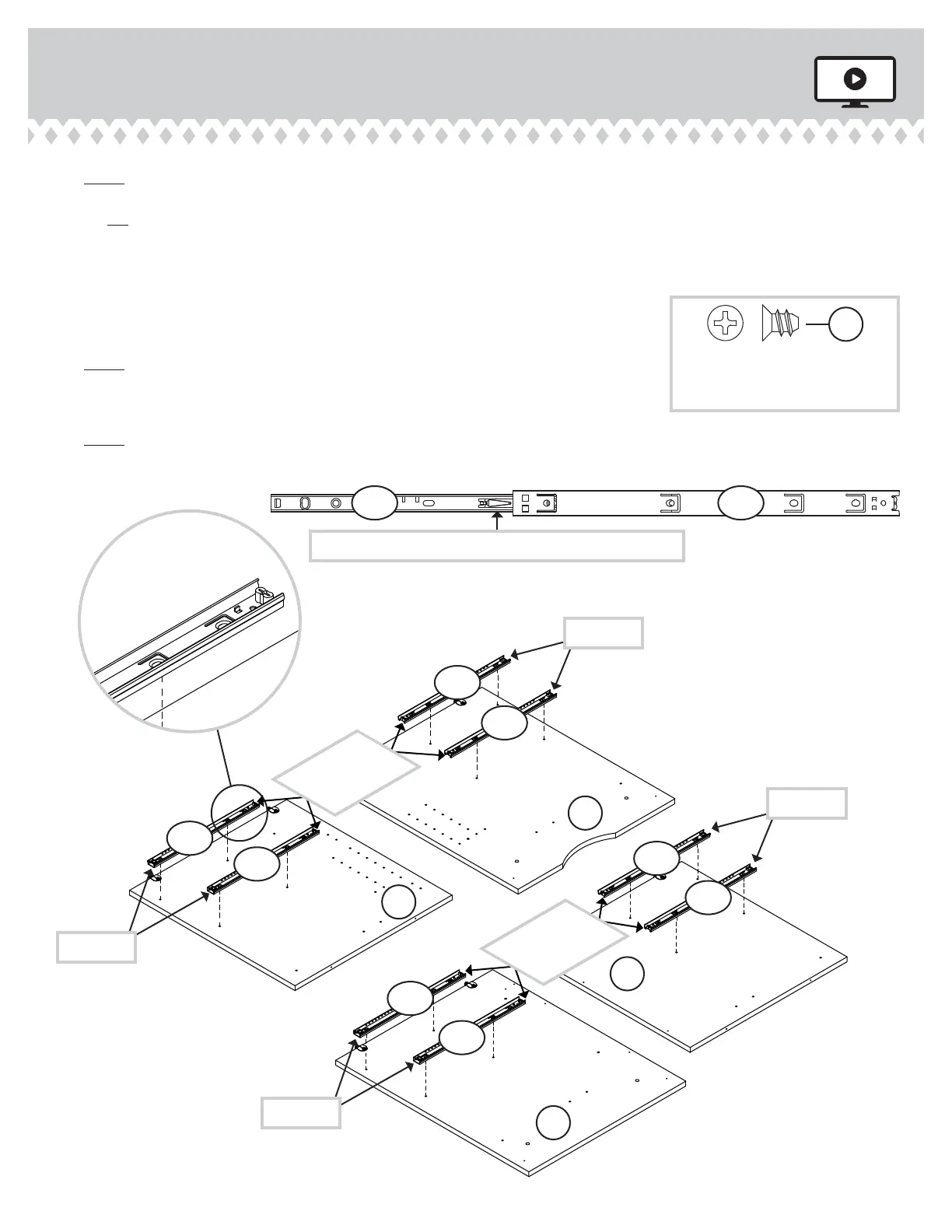

Separate the NARROW EXTENSION SLIDES (BBB) from the NARROW EXTENSION
RAILS (AAA) as shown in the upper diagram below. Be prepared, the parts are greasy.
å
Fasten the NARROW EXTENSION RAILS (AAA) to the ENDS (B3 and C3) and
UPRIGHTS (D2 and E2). Use sixteen GOLD 5/16" FLAT HEAD SCREWS (3S).
å
NOTE: For each EXTENSION RAIL, turn a SCREW into the hole shown in the enlarged
diagram. Then, slide the inner cartridge of the EXTENSION RAIL in to fi nd the other
hole that lines up with the hole in the END and UPRIGHT. Turn a SCREW into this hole.
å
NOTE: The EXTENSION SLIDES will be used later for the DRAWERS.
416513 www.sauder.com/servicesPage 10
C3
B3
D2
E2
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
Push the release lever in and pull the SLIDE from the RAIL.
AAABBB
Narrow
Extension
Rails
Open end
Open end
Open end
Open end
Narrow
Extension
Rails
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
Surface with
TWIST-LOCK®
FASTENERS
GOLD 5/16" FLAT HEAD SCREW
(16 used in this step)
3S
To Next Page
