Sauder WHISKER - Hardware Usage Guide; How to Use Cam Lock System

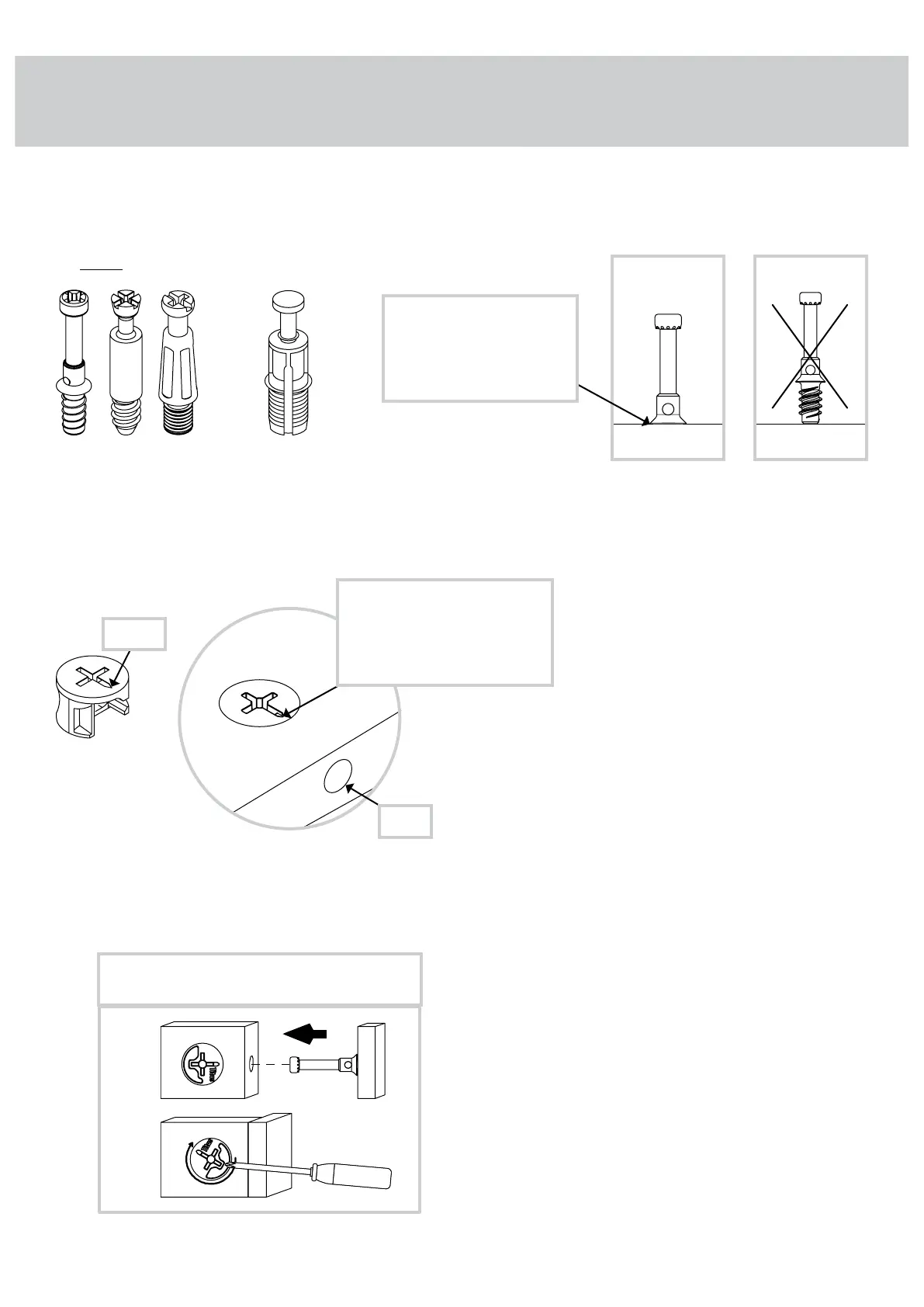

HOW TO USE A HIDDEN CAM & CAM SCREW OR CAM DOWEL
NOTE: Various CAM SCREWS or a CAM DOWEL may be used.
Cam Dowel
Cam Screws
Turn the CAM SCREW
or gently tap the
CAM DOWEL until the
shoulder is against the
surface of the part.
1.
3.
Insert the CAM SCREW or CAM DOWEL into
the HIDDEN CAM. Tighten the HIDDEN CAM.
1
2
2.
Arrow
Push a HIDDEN CAM into
the part. The arrow in
the HIDDEN CAM must
point toward the hole in
the edge of the board.
Hole
Hidden Cam
429610whiskersupport.com Page 5
