Main Components:
 Themachineconsistsofanelectricalmotorthat,throughagear
box,operatesaworm.Thewormfeedsthemeattotheknifeandgrinder
plate.Severaltypesofgrinderplatesareavailable.Theplateshaveholes
withdifferentdiameters.Thetypeofplateischosendependingonthe
desiredgroundmeatcharacteristics.
Thefeedthroatandwormreceiveaspecialtreatmenttoisolateand
facilitatethecleaning.Theknifeanddiscaremadeofhardmaterialto
providealonglifecuttingquality.
Technical Data:
•Voltage:110V•Frequency:60Hz•Consumption:1,2kW/h•Height:
380mm•Width:380mm•Depth:710mm•NetWeight:45kg•Gross
Weight:49kg•AverageProduction:300kg/h
Installation:
Themeatgrindermustbeinstalledonalevel,non-skidsurfacewitha
maximumrecommendedheightof850mmbyqualiedorexperienced
people.Infrontofthegrindingdevicemustbeleftasuitablespace
toreceiveatraytocollecttheprocessedmeat.Checkthevoltageof
themachine.Theunitvoltagemustbethesameasthepowersource.
Groundingwiremustalwaysbeconnected.
Pre-Operation:
Checkifthemachineisrm,nomovementshallbeallowedonthe
supportingsurface.Itisrecommendedthatthemachinebecarefully
cleanedbeforerstoperation.(Cleanasexplainedinthe“Cleaning”

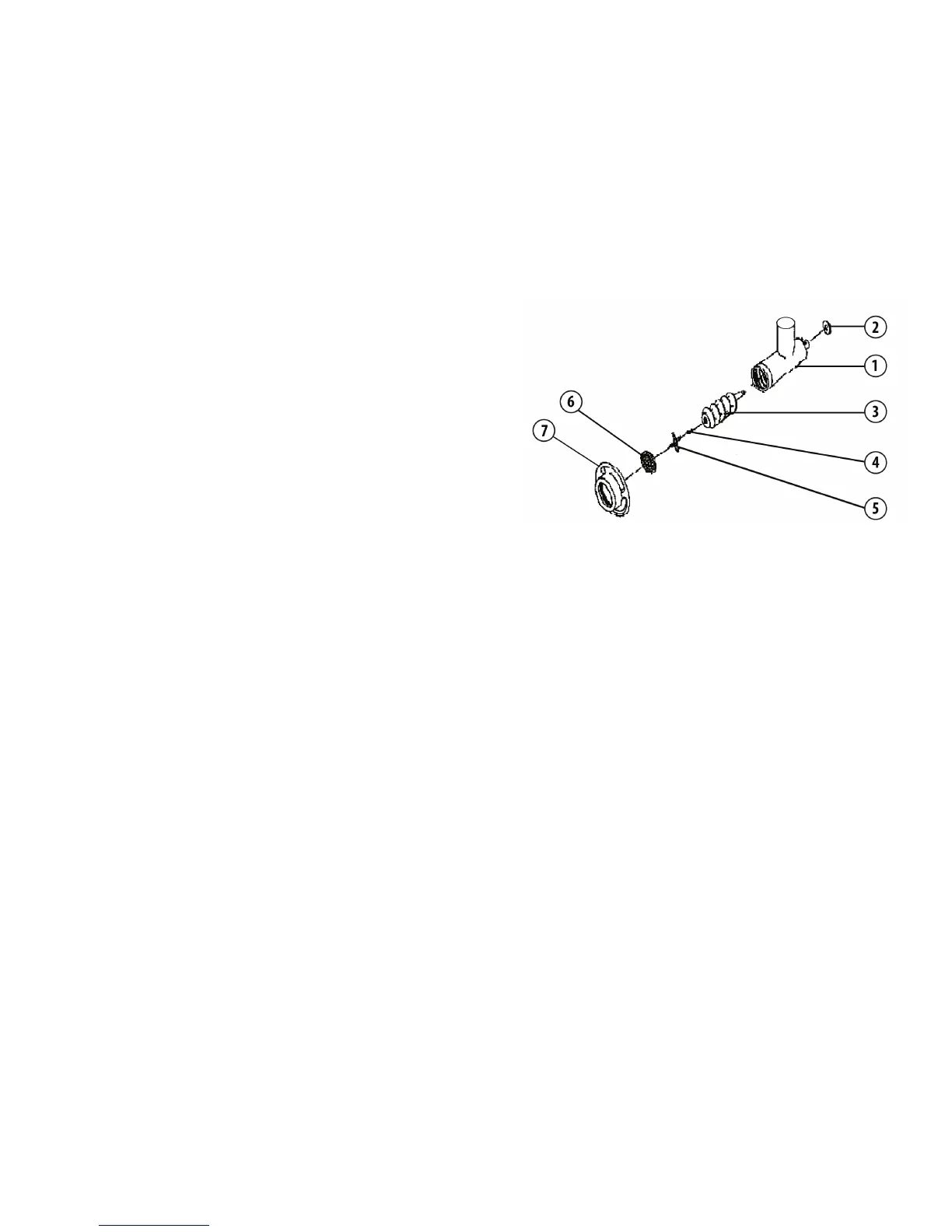

section)Aftercleaning,reassemblethecomponentsfollowingtheorder
showninthepicturebelow.Thencheckifallremovablecomponentsare
reassembledproperly.Turnlockingringcounterclockwiseuntilitappliesa
slightpressureontheholeplateandontheknife.
NOTE: Donottightenthelockingringtoomuch,asanexcessive
pressureontheholeplateandknifemayleadtotheirabnormalwear.
NOTE:Assemblethecomponentsfollowingtheordershownabove.
Itisrecommendedthatyoufollowtheordercarefully.Assemblingthe
componentsinadifferentordercouldcauseseriousdamagetothe
grindingdevice.Whenre-installingtheknifeinthewormstud,makesure
thatthecuttingedgeisfacingoutwardswiththeatedgeushwiththe
grinderplate.
Yourmeatgrinderisnowreadytooperate.
Operation:
Startthemachine.TSM-22grindersareveryhighspeedmachinesand
thereforetheyneedafastfeedingtoo.Putthemeatlumpsonthetray
andusethestompertopushthemeatintothefeedthroatwhereitwillbe
suckedinbytheworm.Feedmeatataconstantrateforbettergrinding.
IMPORTANT: Onlyusethestompertopushthemeatintothefeed
throat.Neveruseyourhandsoranyotherkindofinstrument.Itisstrongly
recommendedthatthemeatchoppernotbeoperatedwithoutmeatin
feed,thereforeneverletthemachinetoworkwithoutloading.Ifit
happens,thetemperaturemayriseashighas180°Finapproximately
3minutes,causingseriousdamagetothegrindingcomponents.Never
leaveanykindofknives,metalhooksorotherinstrumentsonthetray.
