HCX-4KHDR40 | 009-1673-00 | 180906
Copyright 2018 Savant Systems, LLC
2 of 2 45 Perseverance Way, Hyannis, MA 02601
Savant.com | 508.683.2500

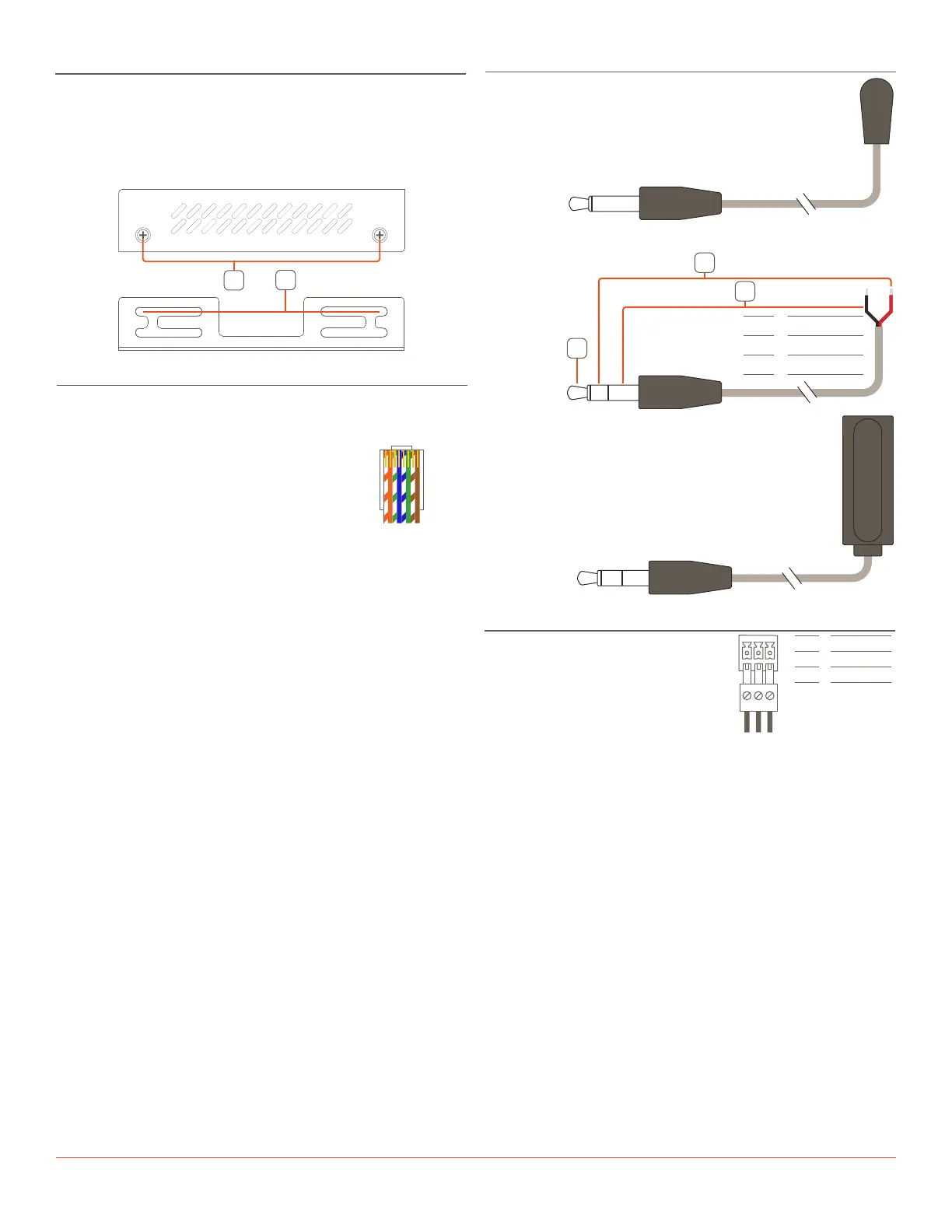

Installation
An HDBaseT extender can be placed on a standard 1U rack shelf. Or
the extender can be installed using the included mounting brackets.
To install the mounting brackets follow the steps below.
1. Remove the two case screws on the side of the device
(Shown in the image below).
2. Align the bracket using the top holes.
NOTE: This will leave an air gap behind the device.
3. Replace the case screws attaching the bracket.
Category 6 or greater twisted pair cable with RJ45 connectors
between the transmitter and the receiver is recommended.
TIA/EIA-568B straight-through wiring connections must be used.
Transport Distance (4K)
Cat6 115ft (35m)
Cat6a/7 131ft (40m)
Transport Distance (1080P)
Cat6 197ft (60m)
Cat6a/7 230ft (70m)
HDBaseT Cable Information
RJ-45 Connector
(Gold pins facing up)
TIA/EIA-568B
1
2
IR Wiring
IR Emitter
Connect to 3.5 mm IR Out to control a IR device.
3
2
1
Pin 1
IR - (Black)
Pin 2 IR + (Red)
Pin 3
Not Used
IR Connector Cable
Connect to 3.5 mm IR In to pass-through IR control from a Savant
Controller.
IR Receiver
Connect to 3.5 mm IR In to pass-through IR control. Not
commonly used in a Savant Deployment.
IR Control is pass-through only.
RS-232 control signal pass-through only.
Serial control connection are made using
a 3-pin Control Connector supplied with
the device. The wire slips into the hole and
locks with a screw located at the top of
the connector.
RS-232 Wiring
Pin 1
Ground
Pin
2
Transmit
Pin 3
Receive
1 3
2
