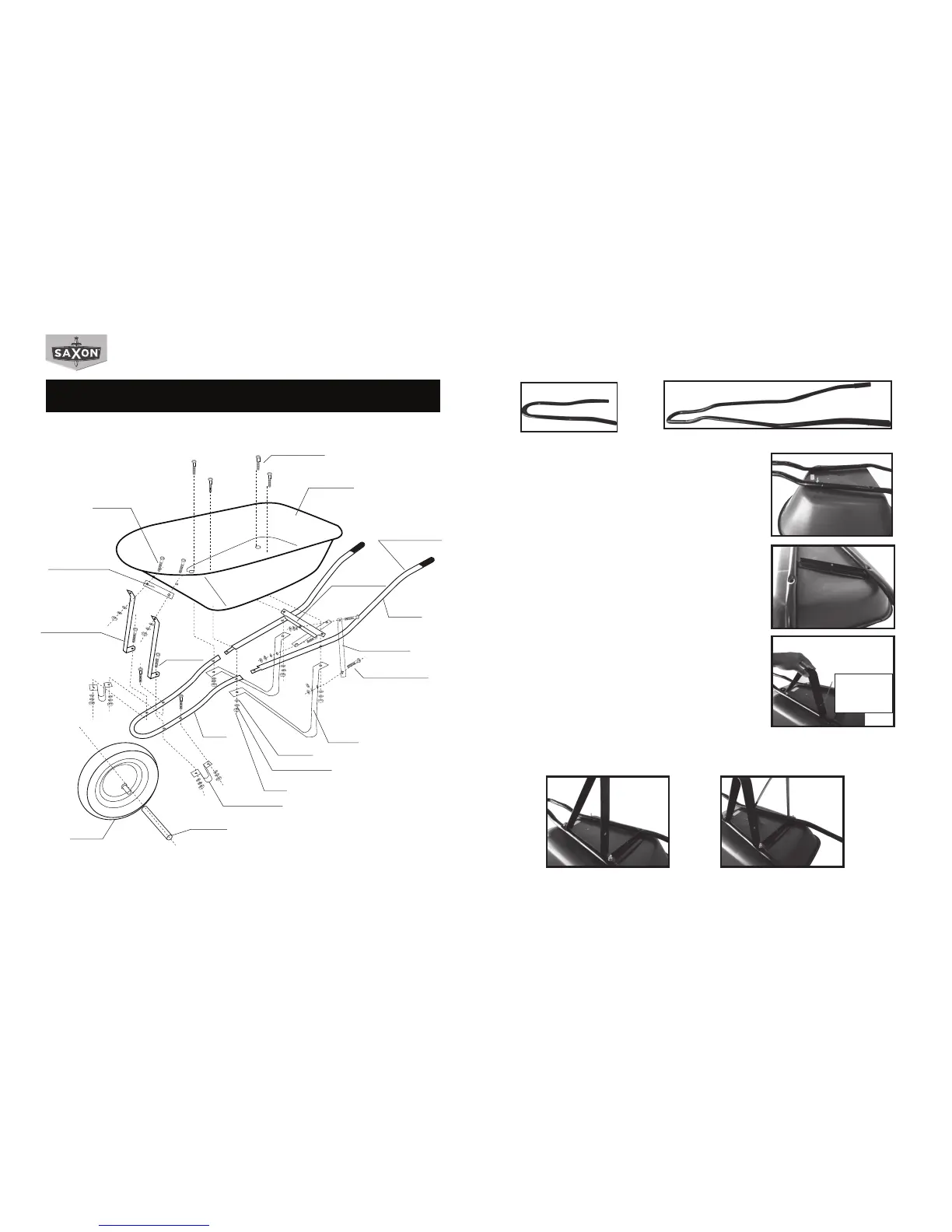

ASSEMBLY
Step 1: Join the fork (A) and the handle grips (B) together.
Step 2: Turn the tray (C) on to its side, and connect the handles to the
tray using the long bolt (N). Insert this bolt through the front tray holes
and loosely tighten.
Step 3: Slide the frame brace (D) between the tray and the rear holes
of the handle grips.
Step 4: While holding the wheelbarrow tray on it’s side, place one leg
(E) onto the handle grips and insert the long bolt (N) through the rear
hole of the tray, frame brace, handle and leg. Secure with spring
washer, washer and nut (hand tighten only).
Step 5: While holding the wheelbarrow tray on its side, remove the nut from the bolt inserted in step 2. Then
insert the long bolt (N) through the tray, handle and leg and secure using a spring washer, washer and nut.
Repeat on the other side.
2 of 4 3 of 4
A. Fork
C. Tray
B. Handle Grips
D. Frame Brace
G. Front Support
I. Axle Bracket
Nuts
Spring Washers
Washers
E.Leg
F.Leg Brace
Handle
H. Support Plate
J. Axle
L.Bolt Small
K. Wheel
M. Bolt Medium
M. Bolt Medium
N. Bolt Long
60 LITRE GARDEN WHEELBARROW
(Item No. 3350437)
Assembly Instructions
This side
facing up
Make sure
hole faces to
the back
