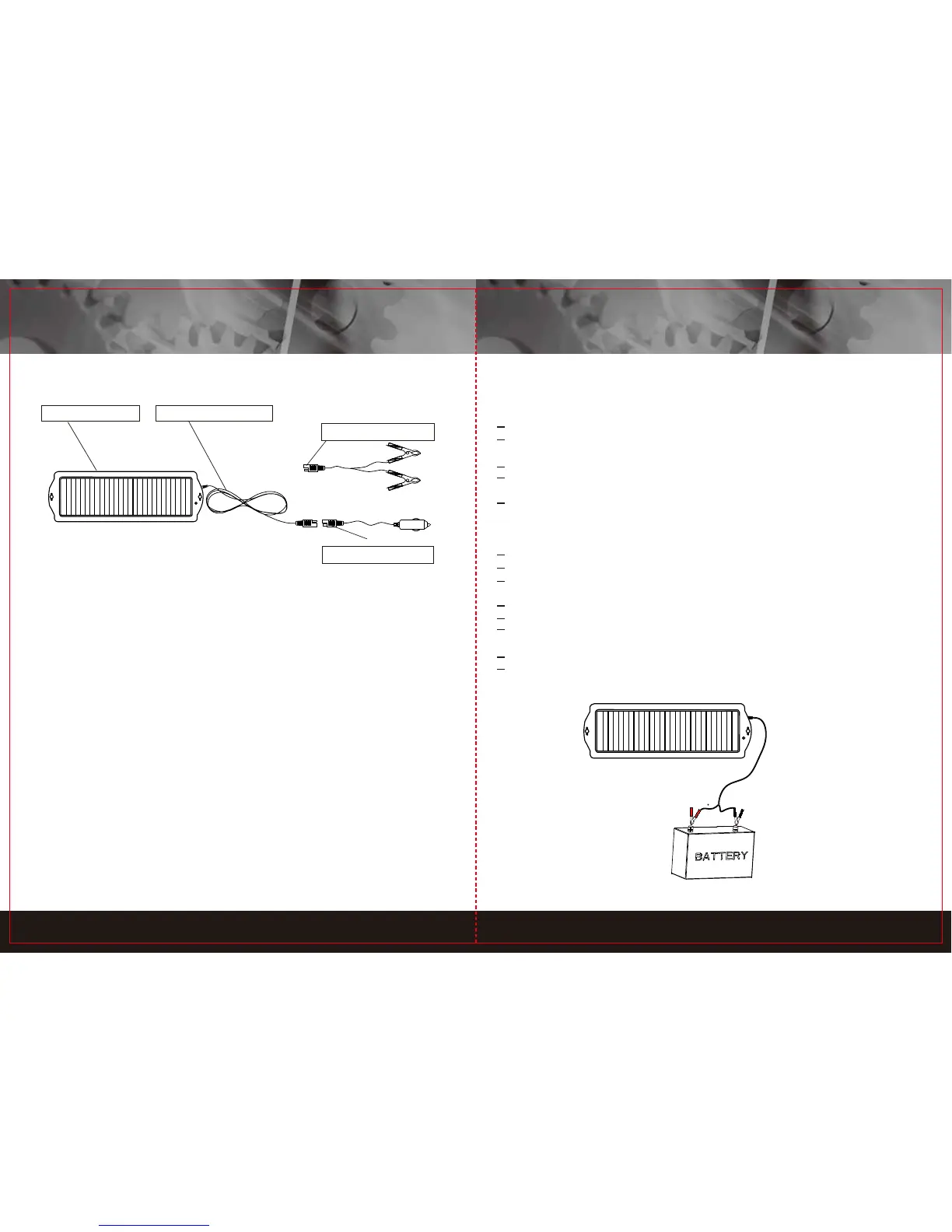

5. BATTERY CHARGER DIAGRAM
6. CHARGING INSTRUCTIONS
Amorphous panel
12V Cigarette Plug
Step 1. Electrolyte Level Check
Prior to charging the battery, remove the vent caps on the battery (For sealed
maintenance free batteries check the state of charge indicator). If electrolyte
levels are low ensure to add demineralised water to the correct level indicated
on the battery.
Step 2. Voltage Check
Prior to connecting the SCA solar maintenance battery charger, ensure that the
battery voltage is adequate enough to receive charge. If the battery does not
contain enough voltage the maintenance charger will not be able to provide ade
quate current to maintain your battery.
Please Note: The SCA solar maintenance battery charger will not charge
from zero volts.
*For voltage requirements see Technical Specifications
Step 3. Connect SCA solar maintenance battery charger to battery
There are two (2) options for connecting the SCA solar maintenance battery
charger to a battery
i. Connect SCA solar maintenance battery charger to a battery 12V Battery
Clamps
ii. Connect SCA solar maintenance battery charger to a battery 12V Cigarette
Plug(where 12V Cigarette Plug is provided)
i. Connect using 12V Battery Clamps
Solar Connection Lead
12V Battery Clamps
DO NOT start the vehicle while the charger is connected to the battery with
cigarette lighter or Battery Clamps. Electrical surges from the engine when
starting and running may damage your charger.
Important ! The black lead & clamp indicates (-/Negative) and the red lead &
clamp indicates (+/Positive). Ensure that the correct polarity is connected to
prevent a short circuit. This unit is not reverse polarity protected.
Ensure the battery is in a safe location on a stable surface with adequate ventilation
Ensure the correct Personal Protective Equipment is being worn I.e. Gloves and Eye
Wear
(If applicable) ensure the batteries vent caps are loosened or removed
Connect the suction caps to the SCA solar maintenance battery charger (Where
applicable)
Attach to the windshield either inside or outside of the vehicle OR on a surface that
is close to the battery
(* SCA Maintenance Charger is NOT waterproof or water resistant and must be in a
well ventilated area)
Connect the 12V Battery Clamps to the SCA Maintenance Charger
Connect the RED Battery Clamp to the Positive Terminal (+/Positive) on the battery
Connect the BLACK Battery Clip to the Negative Terminal (-/Negative) on the battery
When ready to disconnect
Disconnect the BLACK lead (Battery Clamp) from the Negative Terminal (-/Negative)
Disconnect the RED lead (Battery Clip) from the Positive Terminal (+/Positive)
Using a Voltmeter check the voltage of the battery before connecting it back in the
vehicle
If required, replace the vent caps on the battery
Ensure that the battery has been secured correctly
