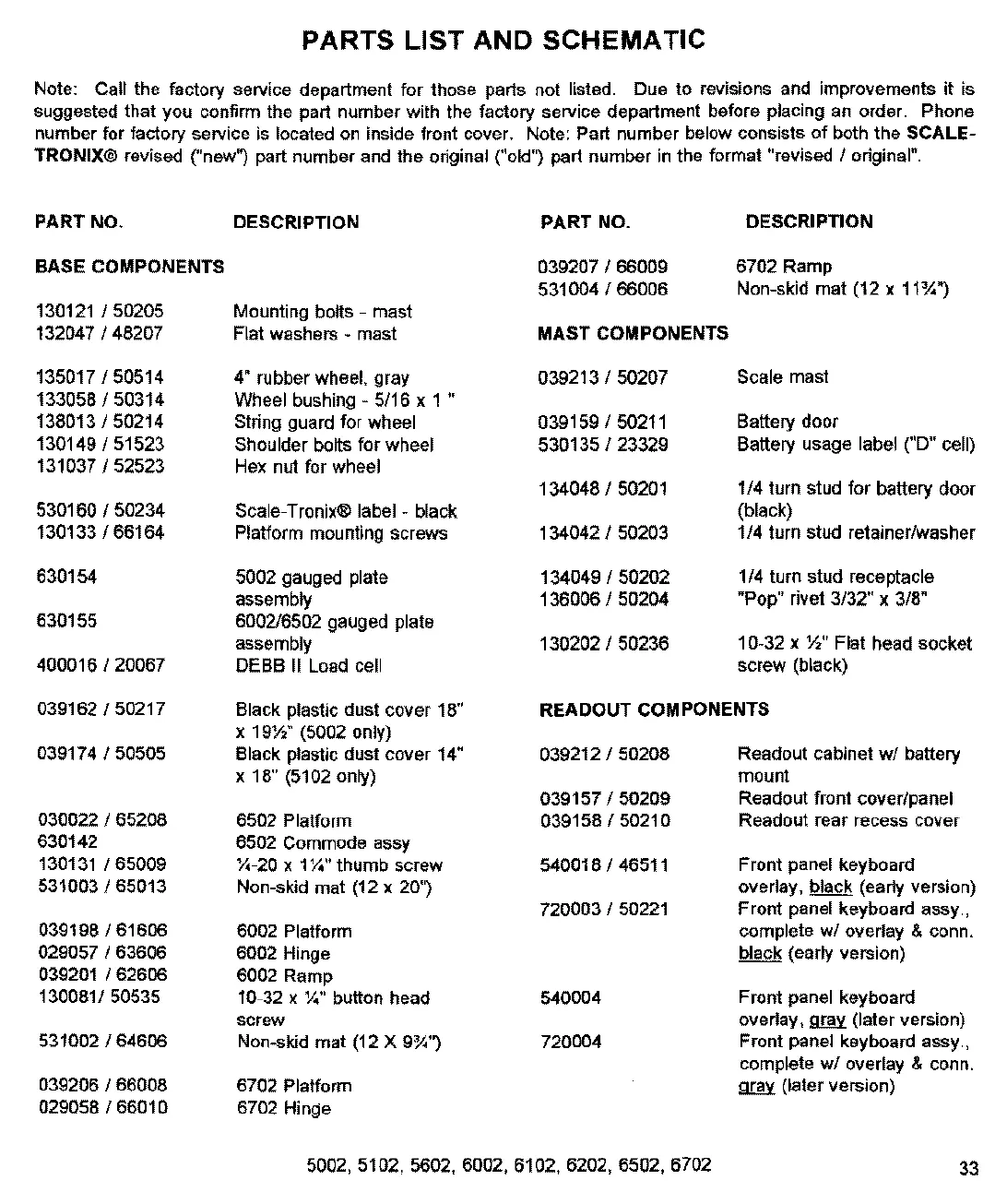

PARTS LIST AND SCHEMATIC
Note: Call the factory service department for those parts not listed. Due to revisions and improvements it is
suggested that you confirm the part number with the factory service department before placing an order. Phone
number for factory service is located on inside front cover. Note: Part number below consists of both the SCALE-
TRONIXG revised ("new") part number and the original ("old") part number in the format “revised / original”.
PART NO.
BASE COMPONENTS
130121 / 50205
132047 / 48207
135017 / 50514
133058 / 50314
138013 / 50214
130148 / 51523
131037 / 52523
530160 / 50234
130133 / 66164
630154
630155
400016 / 20067
039162 / 50217
039174 / 50505
030022 / 65208
630142
130131 / 65009
531003 / 65013
039198 / 61608
029057 / 63606
039201 / 62606
130081/ 50535
531002 / 64606
039206 / 66008
029058 / 66010
DESCRIPTION
Mounting bolts - mast
Flat washers - mast
4" rubber wheel, gray
Wheel bushing - 5/16 x 1"
String guard for wheel
Shoulder bolts for wheel
Hex nut for wheel
Scale-Tronix® label - black
Platform mounting screws
5002 gauged plate
assembly
6002/6502 gauged plate
assembly
DEBB Il Load cell
Black plastic dust cover 18"
x 19%" (5002 only)
Black plastic dust cover 14°
x 18" (5102 only)
6502 Platform
8502 Commode assy
4-20 x VA" thumb screw
Non-skid mat (12 x 20")
6002 Platform
6002 Hinge
6002 Ramp
10-32 x 4" button head
screw
Non-skid mat (12 X 934")
6702 Platform
6702 Hinge
PART NO. DESCRIPTION
039207 / 66009
531004 / 66006
6702 Ramp
Non-skid mat (12 x 11%")
MAST COMPONENTS
039213 / 50207 Scale mast
039159 / 50211
530135 / 23329
Battery daor
Battery usage label ("D" cell)
134048 / 50201 1/4 turn stud for battery door
(black)
134042 / 50203 1/4 turn stud retainerwasher
134049 / 50202
136006 / 50204
1/4 turn stud receptacle
"Pop" rivet 3/32" x 3/8"
130202 / 50236 10-32 x %" Fiat head socket
screw (black)
READOUT COMPONENTS
039212 / 50208 Readout cabinet w/ battery
mount
039157 / 50209 Readout front cover/panel
039158 / 50210 Readout rear recess cover
540018 / 46511 Front panel keyboard
overlay, black (early version)
Front panel keyboard assy.,
complete w/ overlay & conn.
black (early version)
720003 / 50221
540004 Front panel keyboard
overlay, gray (later version}
720004 Front panel keyboard assy.,
complete w/ overlay & conn.
gray (later version)
5002, 5102, 5602, 6002, 6102, 6202, 6502, 6702 33
