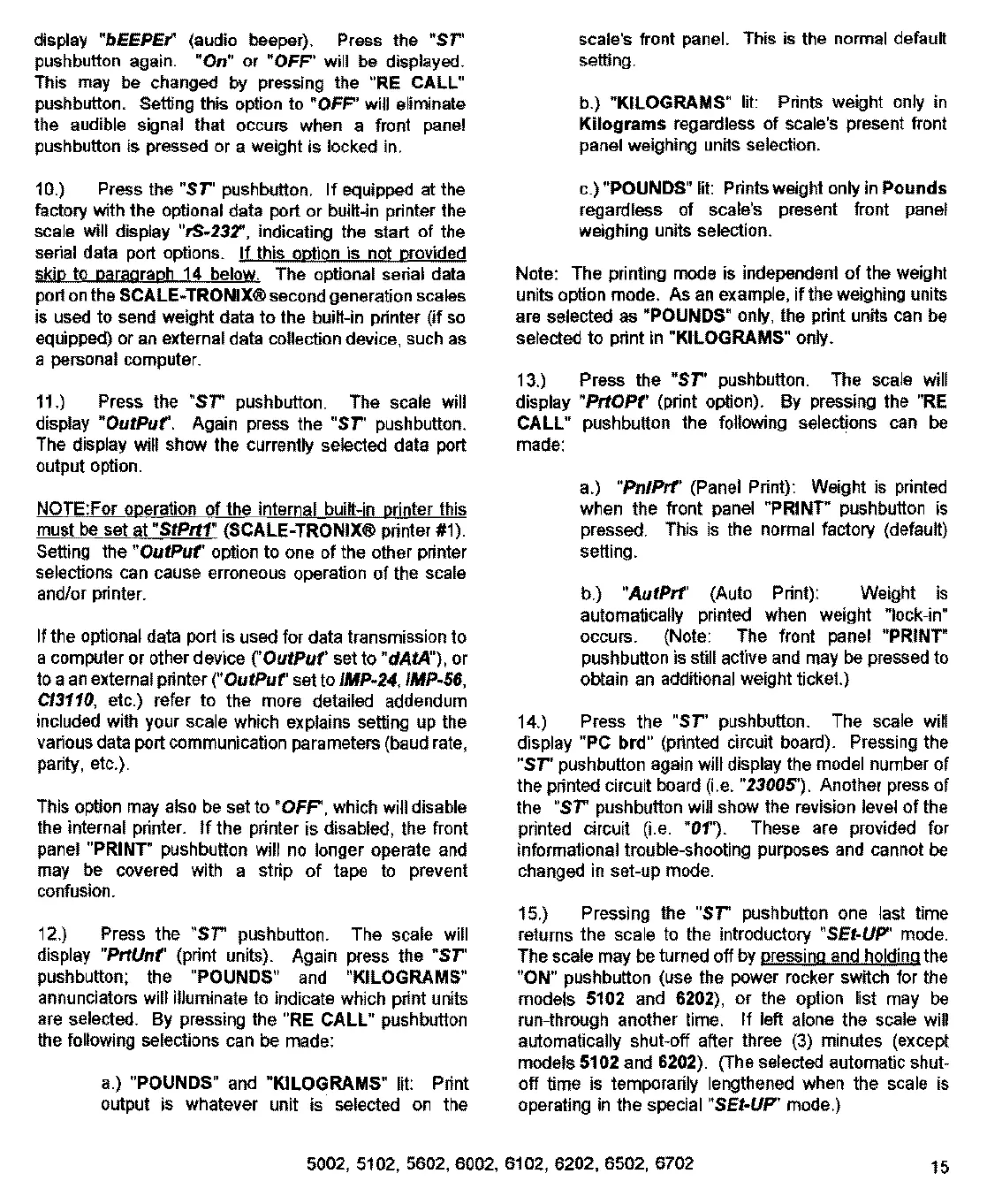

display “BEEPEr (audio beeper). Press the "ST"
pushbutton again. "On" or “OFF” will be displayed.
This may be changed by pressing the “RE CALL"
pushbutton. Setting this option to "OFF" will eliminate
the audible signal that occurs when a front pane!
pushbutton is pressed or a weight is locked in.
10) Press the "ST" pushbutton. If equipped at the
factory with the optional data port or built-in printer the
scale will display "rS-232", indicating the start of the
serial data port options. If this option is not provided
skip to paragraph 14 below. The optional serial data
port on the SCALE-TRONIX® second generation scales
is used to send weight data to the built-in printer (if so
equipped) or an external data collection device, such as
a personal computer.
11) Press the "ST" pushbutton. The scale will
display "OutPuť. Again press the "ST" pushbutton.
The display will show the currently selected data port
output option.
NOTE:For operation of the internal built-in printer this
must be set at "StPrt1" (SCALE-TRONIX® printer #1).
Setting the "OutPuf' option to one of the other printer
selections can cause erroneous operation of the scale
and/or printer.
If the optional data port is used for data transmission to
a computer or other device ("OutPuť set to "dAtA"), or
to a an external printer "OutPuť set to IMP.24, IMP-56,
С13110, ас.) refer to the more detailed addendum
included with your scale which explains setting up the
various data port communication parameters (baud rate,
parity, etc.).
This option may also be set to "OFF", which will disable
the internal printer. If the printer is disabled, the front
pane! "PRINT" pushbutton will no longer operate and
may be covered with a strip of tape to prevent
confusion.
12) Press the "ST" pushbutton. The scale will
display "PrtUnt' (print units). Again press the "ST"
pushbutton, the "POUNDS" and "KILOGRAMS"
annunciators will illuminate to indicate which print units
are selected. By pressing the "RE CALL” pushbutton
the following selections can be made:
a.) "POUNDS" and "KILOGRAMS" lit: Print
output is whatever unit is selected on the
scale's front panel. This is the normal default
setting.
b.) "KILOGRAMS" lit: Prints weight only in
Kilograms regardiess of scale's present front
panel weighing units selection.
e.) "POUNDS" Hit. Prints weight only in Pounds
regardless of scale's present front panel
weighing units selection.
Note: The printing mode is independent of the weight
units option mode. As an example, if the weighing units
are selected as "POUNDS" only, the print units can be
selected to print in "KILOGRAMS" only.
13) Press the "ST" pushbutton. The scale will
display "PrtOPt’ (print option). By pressing the "RE
CALL" pushbutton the following selections can be
made:
a.) "PniPrť (Panel Print): Weight is printed
when the front panel "PRINT" pushbutton is
pressed. This is the normal factory (default)
setting.
b) “AufPrf' (Auto Print): Weight is
automatically printed when weight “lock-in”
occurs. (Note: The front panel "PRINT"
pushbutton is still active and may be pressed to
obtain an additional weight ticket.)
14.) Press the "ST" pushbutton. The scale will
display "PC brd” (printed circuit board). Pressing the
"ST" pushbutton again will display the model number of
the printed circuit board (i.e. "23005°). Another press of
the "S7™ pushbutton will show the revision level of the
printed circuit fe. "01. These are provided for
informational trouble-shooting purposes and cannot be
changed in set-up mode.
15) Pressing the "ST" pushbutton one last time
returns the scale to the introductory "SEt-UP" mode.
The scale may be turned off by pressing and holding the
“ON” pushbutton (use the power rocker switch for the
models 5102 and 6202), or the option list may be
run-through another time. If left alone the scale will
automatically shut-off after three (3) minutes (except
models 5102 and 6202). (The selected automatic shut-
off time is temporarily lengthened when the scale is
operating in the special "SEt-UP" mode.)
§002, 5102, 5602, 6002, 6102, 6202, 6502, 6702 15
