MOUNTING THE POWER UNIT
INSTALLING THE SIGNAL CABLE
Twist down to see hole to put wire in, put stripped wire in hole (making sure the two bare
wires do not touch) then twist up to tighten.
The unit can be mounted indoors or outdoors in an upright vertical position on a wall
or other non-enclosed area. NOTICE: If mounting the power unit outside, it must
be kept out of the direct sunlight. The installer must supply the mounting screws
for the type of surface the unit will be mounted on. (We recommend a number 8
screw)
Insert the pre-stripped end of the signal cable into one of the two signal terminals and tighten.
Follow instruction on how to wrap pipe with wire on next two pages (pages 6 &7).
5
LED light. See
details on bottom
of page 7.

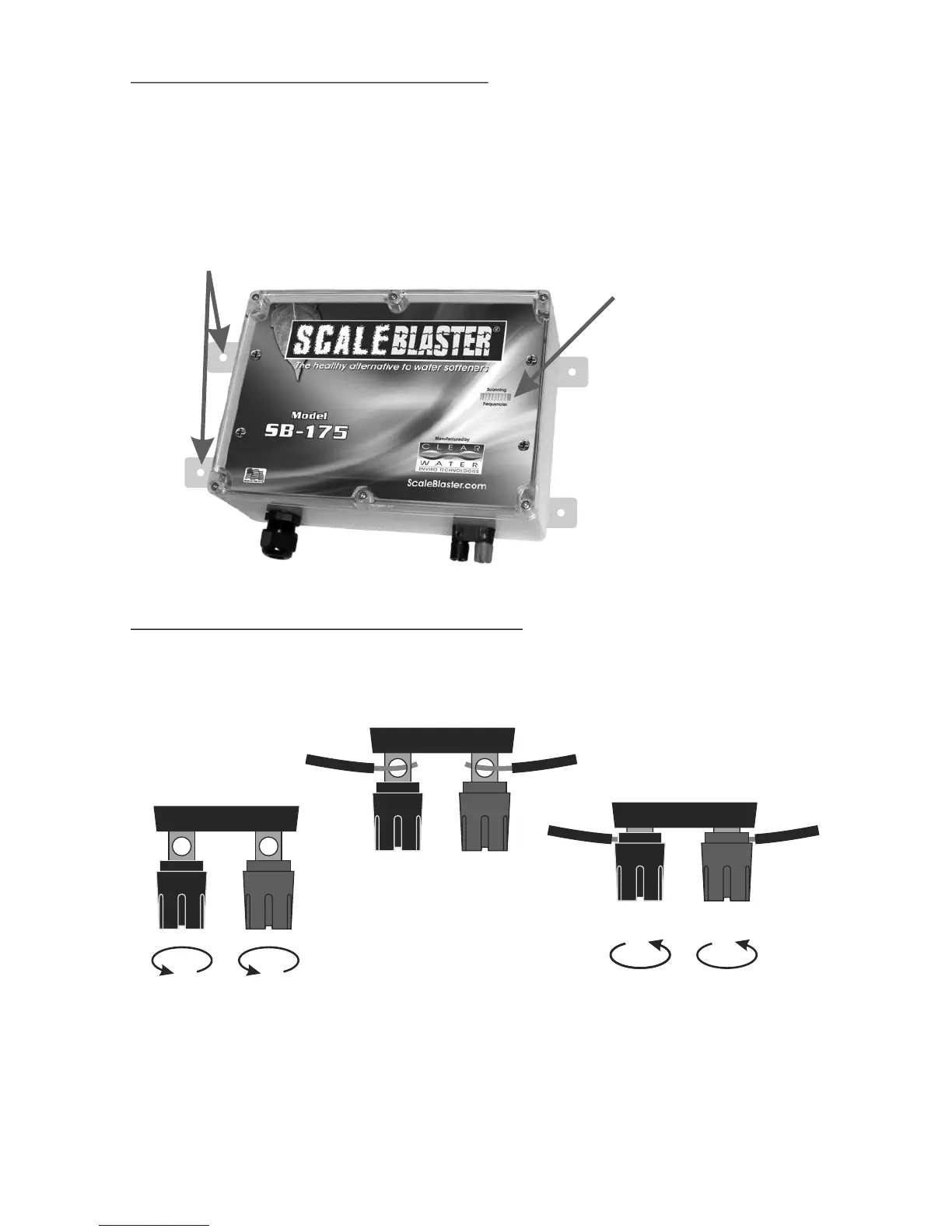

Mount power unit on a solid surface using
enclosed mounting brackets and screws.
