HEAT-STORAGE SYSTEM
Heat-storage stones are available for Scan 83-3, 83-4, 83-7 and 83-8.
Heat-storage stones are made from a special material with a high
heating capacity. The stones are heated up during the firing and gives
off the heat again after the firing, which means that the stove stays
warm for a longer time.
¬ Firing with the vent open will give a quicker heating. Firing with the
vent closed will extend the heating time of the stove.
The heat conductor plate must always be mounted under
the heat accumulating stones.

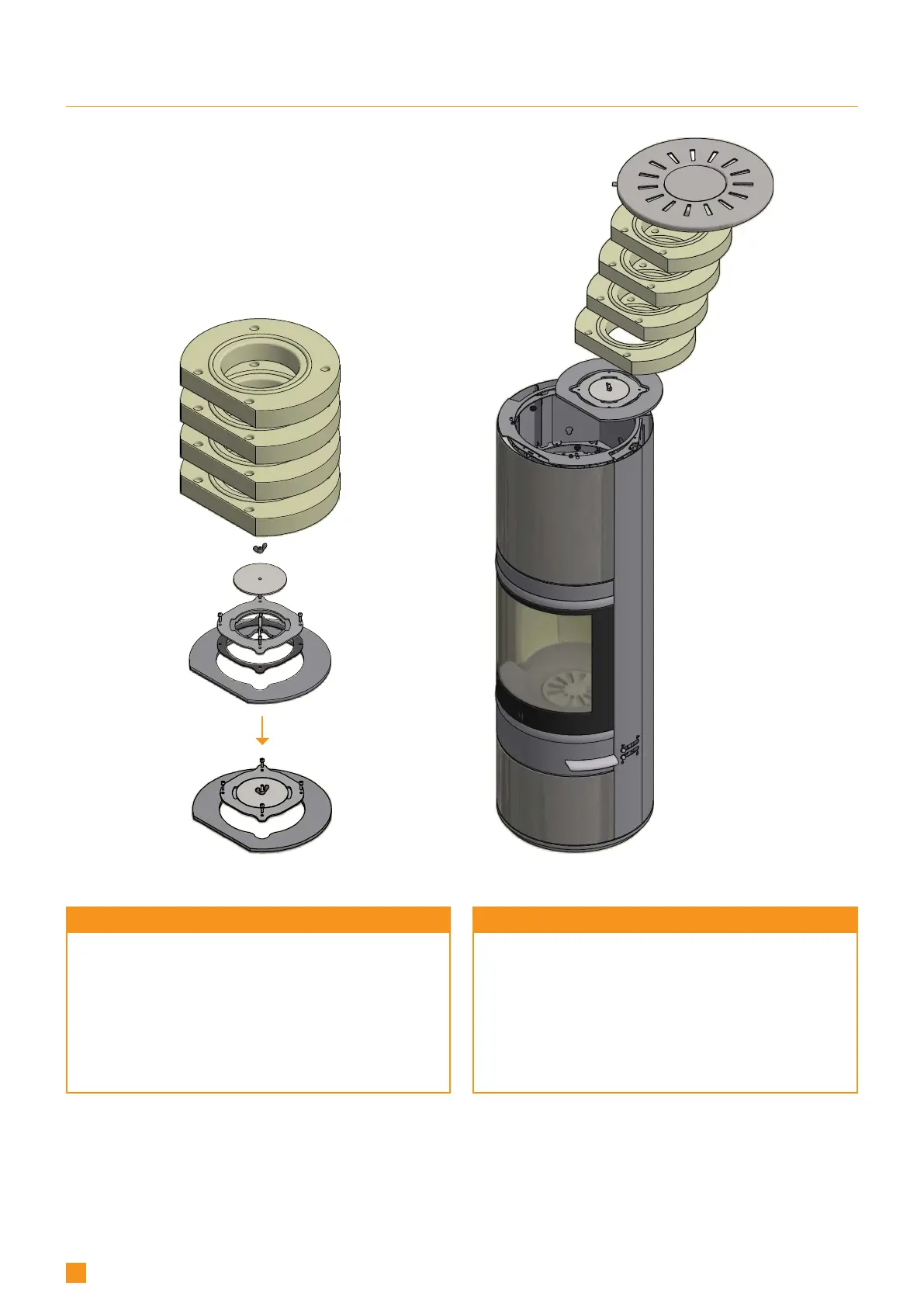

Mount part 2 (heat conductor plate) and the four stones.
Part 1 (access door) is not to be used.
Only to be used at rear outlet.
First mount part 1 (access door). Then mount part 2 (heat
conductor plate) and the four stones.
The access door is easily removed by means of the butter-
fly nut, when the stove has to be cleaned.
Heat-storage stones
