Accessories

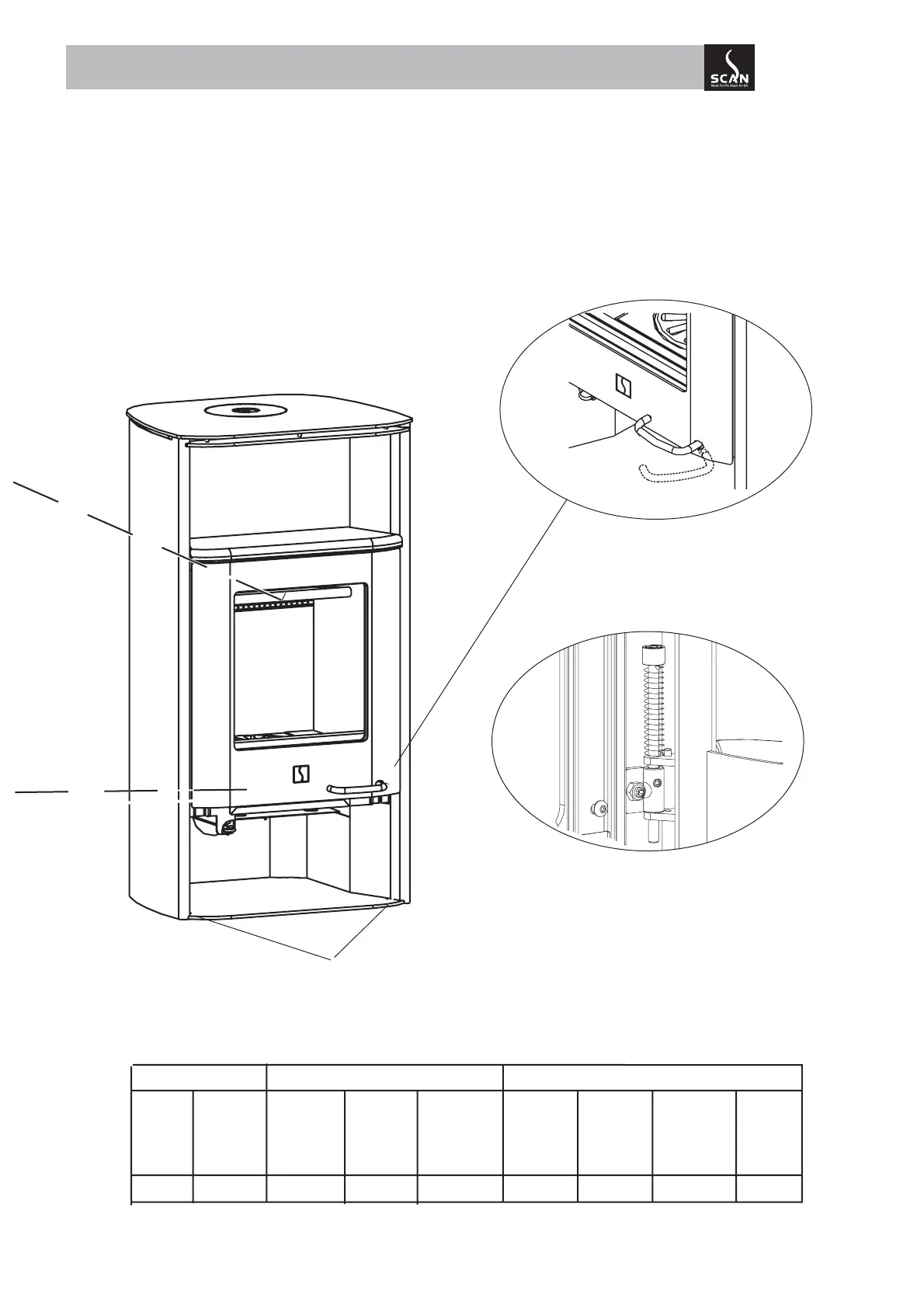

For this model you can have the following accessories:
Handle
Pull out the handle to open the door.
Adjustment screws
The stove has two adjustment screws on the bot-
tom that can be used for levelling the stove.
Self-closing door (BA 1)
The door is prepared with a self-closing function at the fac-
tory. If you tighten the spring with the hexagon spanner, the
door will close automatically when you let go of it.
• Lateral covering in soapstone or ceramic tiles
(white or blue)
• Top plate in soapstone
• Small grill
• Steel floor plate
• Connection piece for fresh-air intake
SCAN Basic 4
Stove
model
SCAN
Connecting
adaptor
mm
1
Density of
flue gas
flow
g/s
2
Flue gas
tempera-
ture
o
C
3
Minimum
draft
Pa
4
Density of
flue gas
flow
g/s
5
Flue gas
temperature
o
C
6
Minimum
draft
Pa
7
0,8
Minimum
draft
Pa
B4
150 29 184 10 5 290 14 11
With closed doorsWith open doors
Data for calculation of the chimney
Columns 2 and 5 show the flue gas temperature in the connecting adaptor
Columns 3 and 6 show the lowest/minimum draft in Pa by rated value
Column 7 shows the lowest/minimum draft in Pa by 0.8 x rated value
The stove can be prepared for an external air sup-
ply where fresh air is let directly into the combustion
chamber (must be mounted from the factory).
