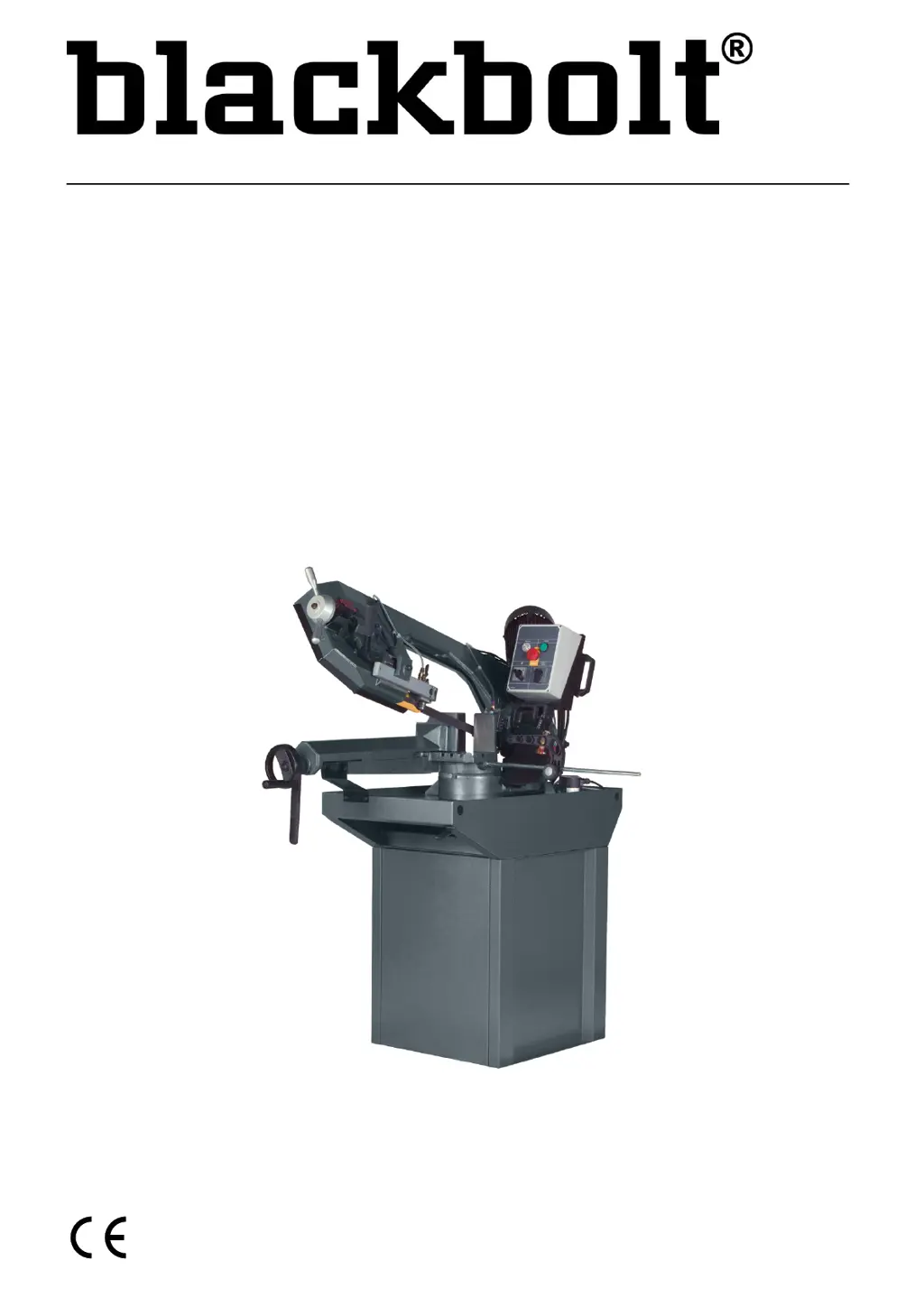

MAD
E BY SCANTOOL GROUP
Manual
BLACKBOLT
Metalbåndsav
Metal Cutting Bandsaw
220 GSHT

Table of Contents

Questions and Answers

  • D
    David PerkinsAug 15, 2025
    Why is the motor running too hot on my Scantool Saw?
    • M
      Marie SmithAug 15, 2025
      If the Scantool Saw motor is running too hot, there are several potential causes: * The blade tension may be too high, so reduce the tension on the blade. * The drive belt tension might be too high, so reduce tension on the drive belt. * The blade might be too coarse or too fine for the material, so use a finer or coarser blade, respectively. * The gears may be aligned improperly; adjust them so the worm is in the center of the path. * The gears may need lubrication; check the oil path. * The cut might be binding the blade; decrease the reed anti-speed.
  • O
    olsonmarkAug 18, 2025
    How to fix bad (crooked) cuts with Scantool Saw?
    • M
      mathewsjamesAug 18, 2025
      If your Scantool Saw is making bad (crooked) cuts, consider the following: 1. The feed pressure may be too great; reduce pressure by increasing spring tension on the side of the saw. 2. The guide bearings may not be adjusted properly; adjust the guide bearing to a clearance no greater than 0.001. 3. The blade tension might be inadequate; increase blade tension by adjusting the blade tension. 4. The blade might be dull; replace the blade. 5. The speed might be incorrect; adjust the speed. 6. The blade guides might be spaced out too much; adjust the guide space. 7. The blade guide assembly might be loose; tighten it. 8. The blade truck might be too far away from the wheel flanges; re-track the blade according to the operating instructions.
  • M
    michaelsanchezAug 26, 2025
    What to do if the blade is twisting on my Scantool Saw?
    • H
      harveylauraAug 26, 2025
      If your Scantool Saw blade is twisting, it could be due to: * The cut is binding the blade; decrease reed pressure. * There is too much blade tension; decrease blade tension.
  • J
    jessica10Aug 28, 2025
    Why is my Scantool Saw blade dulling prematurely?
    • J
      John DavenportAug 28, 2025
      If the Scantool Saw blade is prematurely dulling, consider the following: * The teeth may be too coarse; use finer teeth. * The speed may be too high; decrease speed. * The feed pressure may be inadequate; decrease spring tension on the side of the saw. * There may be hard spots or scale on the material; reduce speed and increase feed pressure. * There may be work hardening of the material; increase feed pressure by reducing spring tension. * The blade may be twisted; replace with a new blade and adjust blade tension. * There may be insufficient blade; tighten the blade tension adjustable knob. * The blade may be sliding; tighten blade tension.
  • B
    Benjamin FletcherAug 31, 2025
    How to troubleshoot a Scantool Saw that cannot be started?
    • K
      Kim HardyAug 31, 2025
      If the Scantool Saw is not starting, check the following: * Ensure the power is plugged in and the power light on the control panel is on. Check the motor specification and connect the power with the correct power supply. * If the motor cannot be started and the power was cut by the limit switch, make sure the cover is in the correct position. * Push the emergency button and return it to the original position, then release the emergency button.
  • K
    katherinevaldezSep 3, 2025
    What causes bad (rough) cuts on a Scantool Saw?
    • E
      Elizabeth BrownSep 4, 2025
      If your Scantool Saw is producing bad (rough) cuts, consider these possibilities: * There may be too much speed or feed; decrease the speed or feed. * The blade may be too coarse; replace it with a finer blade. * The blade tension may be loose; adjust the blade tension.
  • L
    Laura AnthonySep 7, 2025
    Why are teeth ripping from the blade of my Scantool Saw?
    • C
      Christine WallerSep 7, 2025
      If the teeth are ripping from the blade on your Scantool Saw, it could be due to: * The tooth being too coarse for the work; use a finer tooth blade. * Too heavy pressure or too slow speed; decrease pressure and increase speed.
  • M
    Mr. Matthew GarrisonSep 10, 2025
    What to do if the saw arm can not be raised up after pushing the raising button on Scantool Saw?
    • L
      lindseyhollandSep 12, 2025
      If the saw arm of your Scantool Saw cannot be raised after pushing the raising button: * Improper setting of depth gauge. Press the emergency stop Button and RESET. * Check the upper limit switch and stop round position. Make sure the limit switch is always underneath the stop roundbar. * Check the oil gauge; make sure the oil is in proper range. * Check the motor revolution direction; make sure the motor revolution is in clock-wise direction.
  • M
    michaelmuellerNov 20, 2025
    Why is my Scantool Saw experiencing excessive blade breakage?
    • L
      Lindsey AcostaNov 20, 2025
      Excessive blade breakage in a Scantool Saw can be attributed to several factors: * Materials may be loosening in the vise; clamp work securely. * The speed or feed may be incorrect; adjust the speed or feed. * The blade teeth spacing may be too large; replace with a small teeth spacing blade. * The material may be too coarse; use a blade of slow speed and small teeth spacing. * The blade tension may be incorrect; adjust to where the blade just does not slip on the wheel. * The teeth may be in contact with the material before the saw is started; place the blade in contact with work after the motor is started. * The blade may be rubbing on the wheel flange; adjust the wheel alignment. * The guide bearings may be misaligned; adjust the guide bearings. * The blade may be too...
