TechnicalInstructions TSSeries
DocumentNo.TS‐6500
Page6SCCInc.

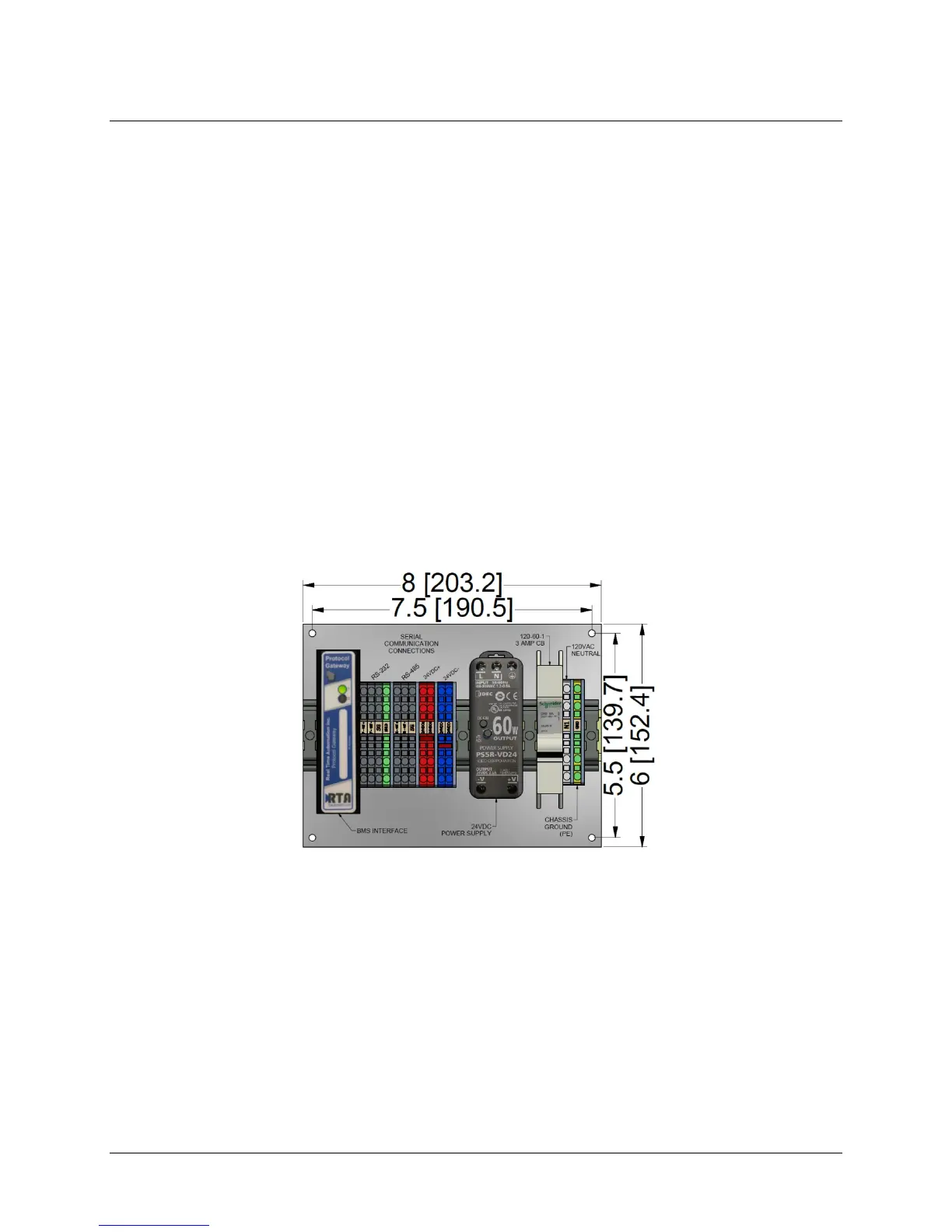

Dimensions
TS‐PN2‐X
LMV5ModbusRTUto:Profinet
TS‐PB2‐X
LMV5ModbusRTUto:Profibus
TS‐PN4‐X
LMV3,LMV5,and/orRWF55to:Profinet
TS‐PB4‐X
LMV3,LMV5,and/orRWF55to:Profibus

