E-312NP / User manual
3
Please refer to the TOOL EXPLOSIVE ILLUSTRATION and the PARTS LIST in this manual in order to have a
good understanding of the tool parts described. The descriptions of the tool parts appear in this manual are
in italics.
1) This pneumatic powered tool should be worked with compressed air supply. It is recommended to use the air
hose with diameter bigger than 8 mm.
2) To check the compressed air pressure within the specified range between 0,5Mpa and 0,7Mpa, and to connect
the air hose adaptor onto the tool air adaptor. The air adaptor has its different versions in different countries
and areas, normally the tools are equipped with the correct version as default, in case the air adaptor does not
apply in your air supply hose adaptor, contact the tool distributor(s).
3) To change and use correct cap screw and anvil according to the size of the rivet nut to be set. This tool is
equipped with cap screws and anvils from M3 up to M12 in the tool kit. For convenience, 7 identical locknuts
provided in the tool kit for each size of the cap screw and anvil in pairs. The steel grade for the screw puller
must be 12.9.

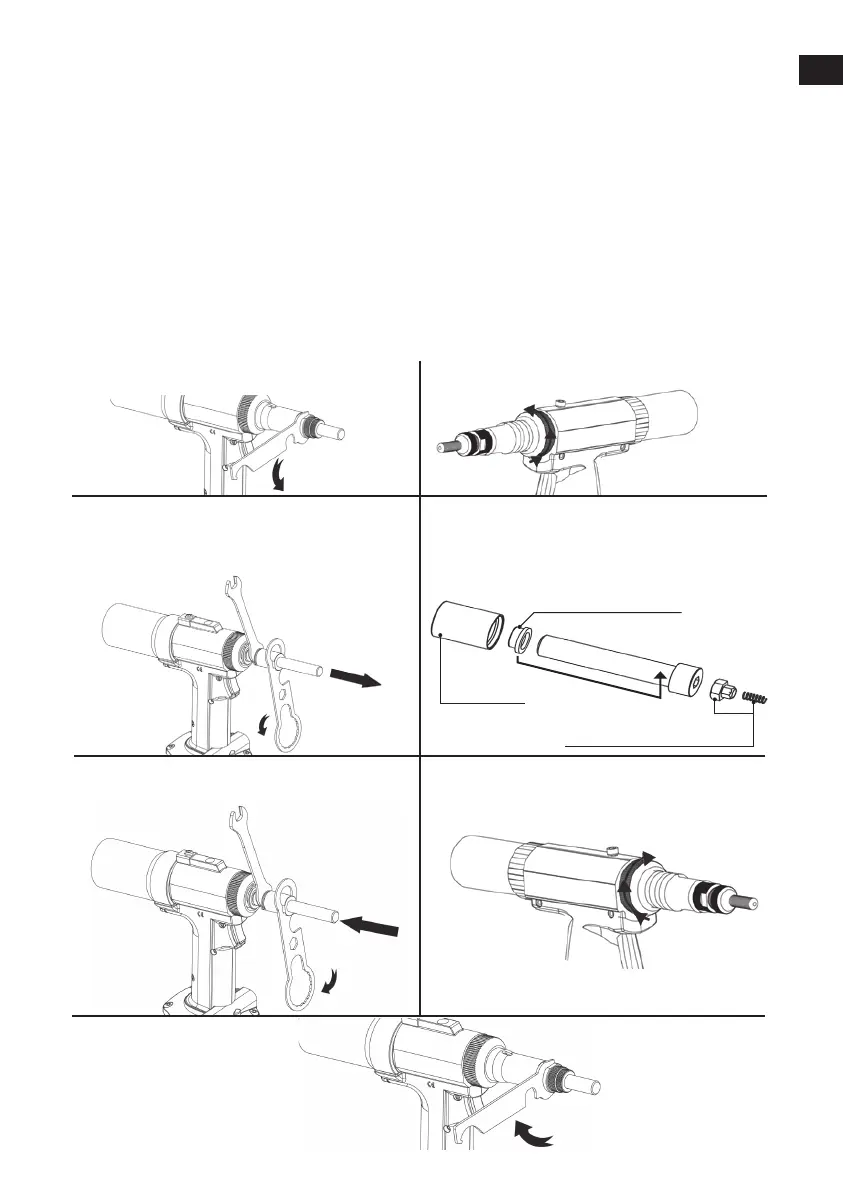

GETTING START TO WORK
a) To remove the anvil from the tool and the locknut
(spanner from the tool kit):
c) To remove the adaptor sleeve, the screw puller,
drive bar (M3 to M8) and drive bar washer (M3 to
M8) (17mm standard spanner + spanner from the
tool kit):
b) To remove the retaining ring and nose sleeve:
d) To assemble the spring into the drive bar
(M3 to M8), the drive bar (M3 to M8) into the cap
head of cap screw, the drive bar washer (M3 to M8)
on to the cap screw and the adaptor sleeve:
f) To install the nose sleeve and screw on the retaining
ring:
g) To screw on the locknut and anvil
(spanner from the tool kit):
e) To screw on adaptor sleeve tight with spring house
with spanners (17mm standard spanner + spanner
from the tool kit):
DRIVE BAR WASHER APPLICABLE
M3-M8 USED ONLY
ADAPTOR SLEEVE
ON THE CAP SCREW
SPRING INTO DRIVE BAR, AND DRIVE BAR
INTO THE CAP HEAD OF CAP SCREW
