– 4 – – 5 –
■ Bring the string over the bobbin
and through the Scotch tension spring
bar on the left (gure B)
■ under the mother-of-all (gure B)
and
■ through the hole in the Scotch ten-
sion rod on the right side (gure C).
Use the thumbscrew underneath
the mother-of-all on the right side to
hold the Scotch tension rod in place.
(Wheels older than late 2003 do not
have the thumbscrew.)

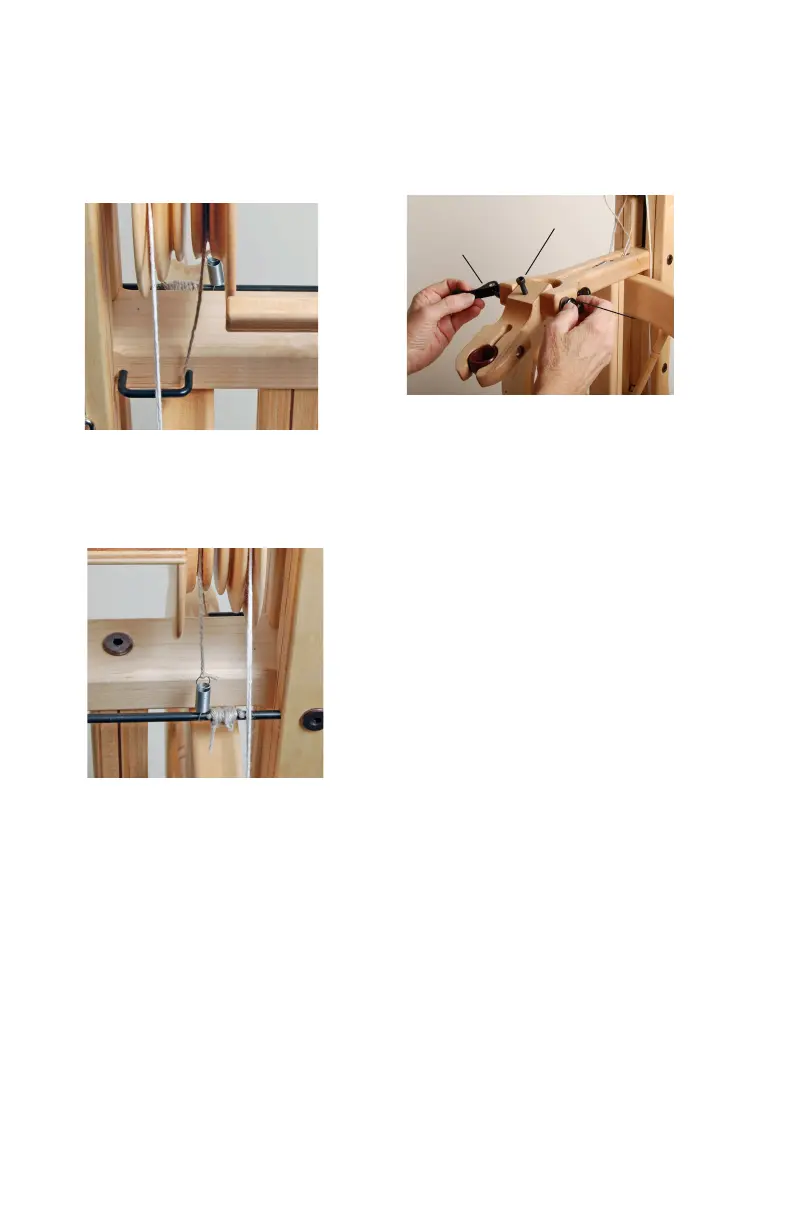

FIGURE B - LEFT SIDE
FIGURE C - RIGHT SIDE
FOR WHEELS BUILT ON OR AFTER 1/19/12
REMOVE THE FRONT MAIDEN
■ Unscrew the knob on the quick
release lever.
quick release
lever
quick release
knob
maiden stop
■ Pull the quick release lever shaft
out of the front maiden (you do not
need to completely remove it).
■ Remove the front maiden.
INSTALL THE BULKY
FRONT MAIDEN
■ Insert the bulky front maiden with
the maiden stop (black hex head
screw) facing away from you.
■ Line up the hole in the maiden and
insert the quick release shaft through
the maiden and the mother-of-all.
■ Screw the quick release knob onto
the shaft.
■ Close the quick release lever. The
knob should be just tight enough to
allow rm pressure when closing the
lever.
■ If the lever closes loosely, open the
lever, tighten the knob a bit, and try
closing the lever again. If the lever
requires a lot of pressure to close,
loosen the knob a bit.
