Save measurement file
Create report
Schaeffler Technologies
AG & Co. KG
Georg-Schäfer-Straße 30
97421 Schweinfurt
Germany
www.schaeffler.de/en
info.de@schaeffler.com
All information has been carefully compiled
and checked by us, but we cannot guarantee
complete accuracy. We reserve the right to
make corrections. Therefore, please always
check whether more up-to-date or amended
information is available. Printing, including
excerpts, is only permitted with our approval.
© Schaeffler Technologies AG & Co. KG
BA 55 / en-GB / DE / 2021-06

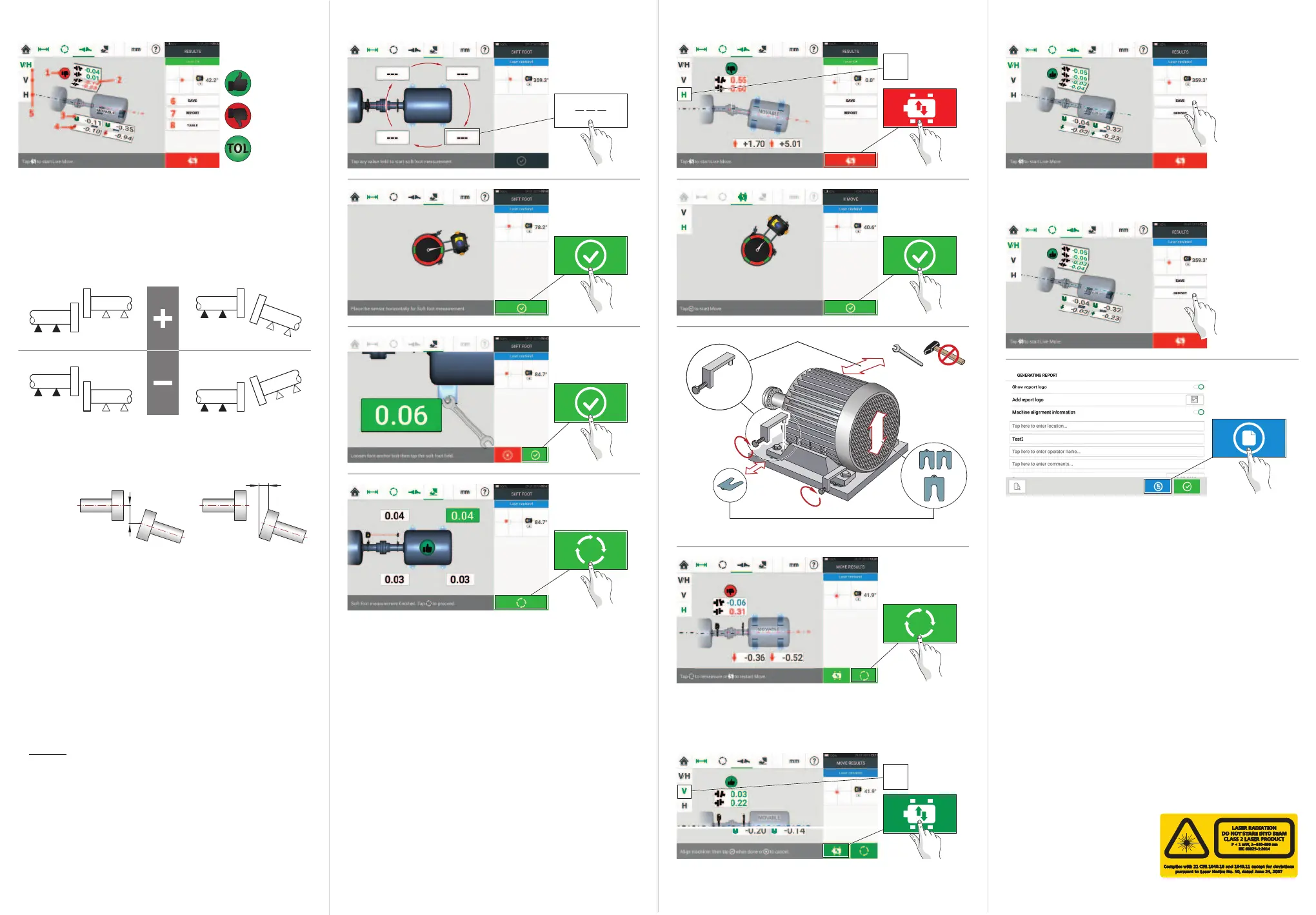

6. Display measurement results
Sign convention
Tolerance table
(Short flexible couplings; speeds for 50 Hz and 60 Hz)
1)
Based on a coupling diameter of 100 mm.
2)
Based on a coupling diameter of 10 inches.
Measure soft foot Make corrections with Live Move
Click the V symbol,
then carry out a second correction run
Tolerance icon
Coupling results (vertical, horizontal)
Vertical foot correction
➔
Shims
Horizontal foot correction
➔
Move
Display mode for the results
Speed Offset Angularity
min
–1
mm mils mm
1))
mils
2))
600 0,23 9 0,15 14,9
750 0,18 7,3 0,12 12,3
900 0,16 6,1 0,1 10,5
1000 0,14 5,5 0,1 9,6
1200 0,12 4,6 0,08 8,2
1500 0,09 3,7 0,07 6,7
1800 0,08 3,1 0,06 5,7
3000 0,05 1,9 0,04 5,7
3600 0,04 1,6 0,03 3,1
6000 0,02 1 0,02 2
7200 0,02 0,8 0,02 1,7
Tolerance icons
Within
tolerance
Out of
tolerance
Tolerances
disabled
H
