5.6 Exchange bellows and suspension-system
Step 1 is to dismount the measuring head.

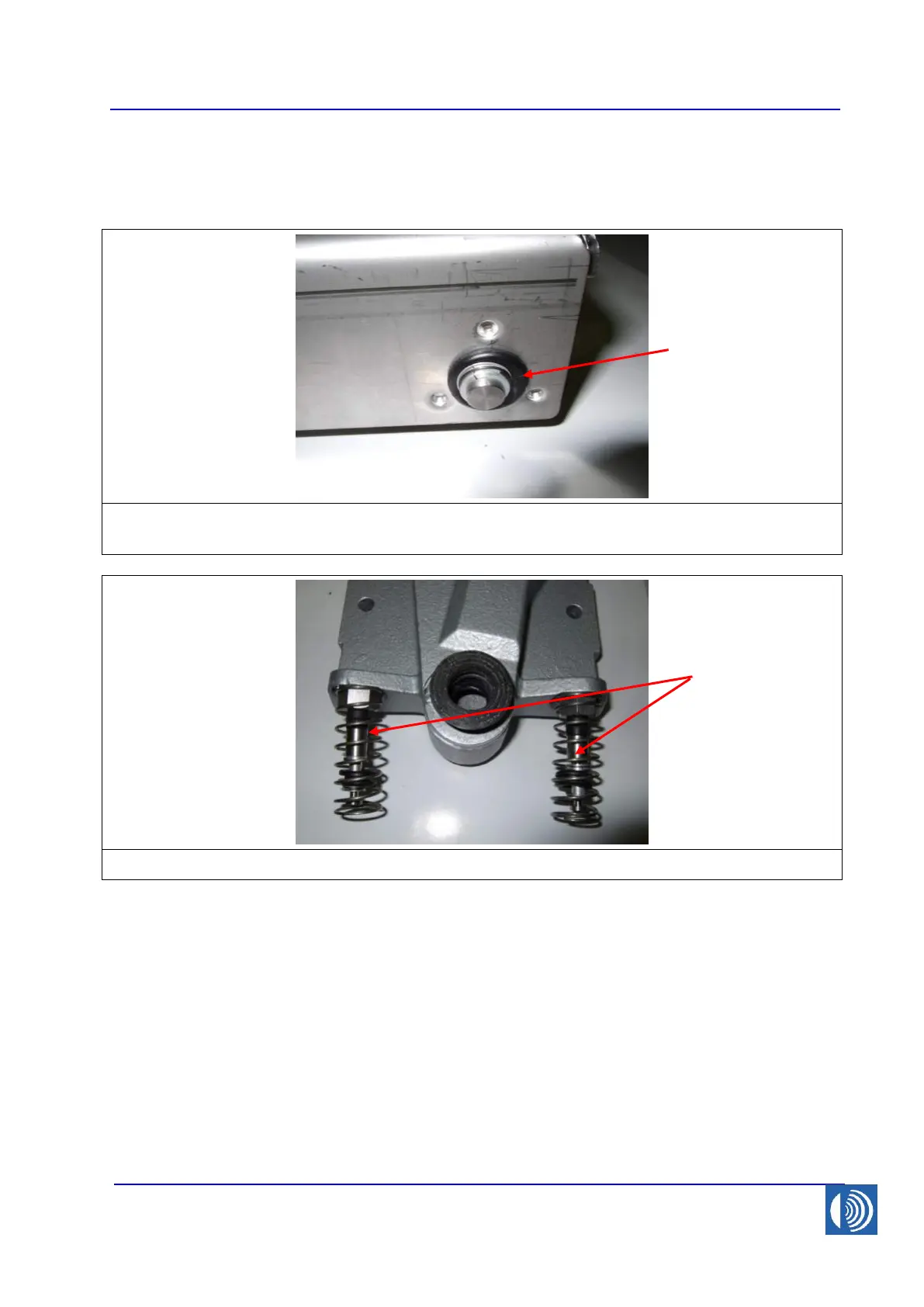

Figure 41: Step 2 is to press out the 4 rubber gaskets with a blunt tool and
finally to remove the carrier plate
Figure 42: Step 3 is to exchange the suspension-system if necessary
Rubber gasket
Upper spring/
insolation-
system
