L’innovation française depuis 1965

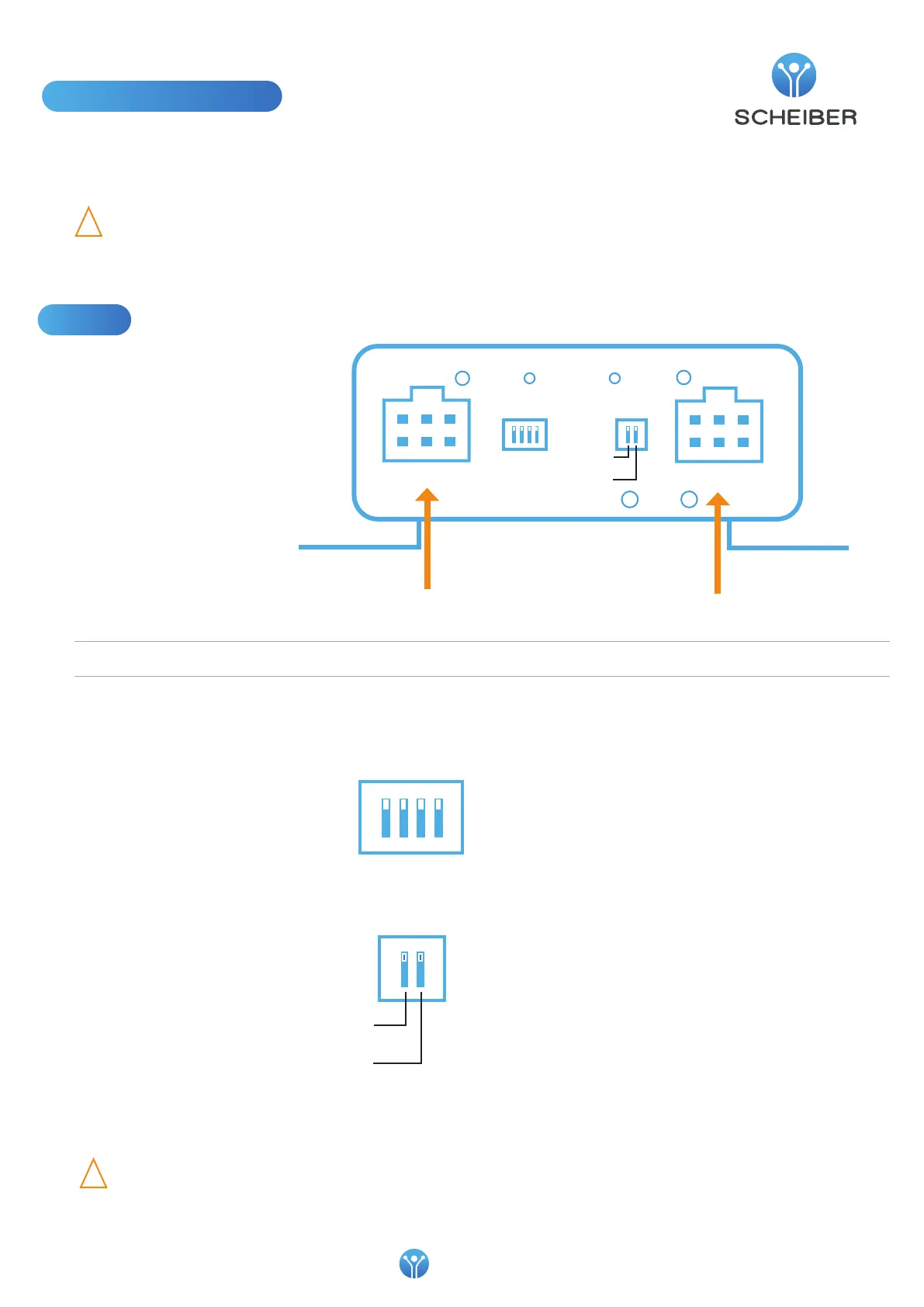

Wiring
2
CODING
CAN 1
CAN 2
CAN 2
CAN 1
120 ohms
1
CONNECTOR CAN 1 CAN 2
Description CAN BUS NMEA CAN BUS Scheiber
R
S
1 2 3 4
ON
OFF
CAN 2
CAN 1
120 ohms
ON
OFF
Switch for product coding
in the Scheiber network
Switch for 120 Ω termination
Network 2
The 120 Ω CAN 1 (NMEA) termination switch must not be used on a NMEA 2000 network,
an external cap must be used to comply with the NMEA 2000 standard.
!
Installation instructions
• This device must be placed in a place protecting it from any risk of water splashing. Install in a ventilated location
• Do not install on supports that are sensitive to heat, such as carpet or PVC ooring, etc.
• The product must be installed away from heat and humidity
WARNING: Connection/disconnection with power on
Do not perform connection or disconnection with power on.
!
