Scheiber BIP 30.65100.48 User Manual

SCHEIBER ISO 9001
SCHEIBER DIFFUSION
85120 SAINT PIERRE DU CHEMIN - FRANCE
Tél : 02 51 51 74 48 Fax : 02 51 51 99 50
Tél international : +33 2 51 51 74 48 Fax international : +33 2 51 51 99 50
E-mail: sav@scheiber.fr Site web: www.scheiber.fr
- 5 -
Date de création
:
10/02
Date de mise à jour :11/08

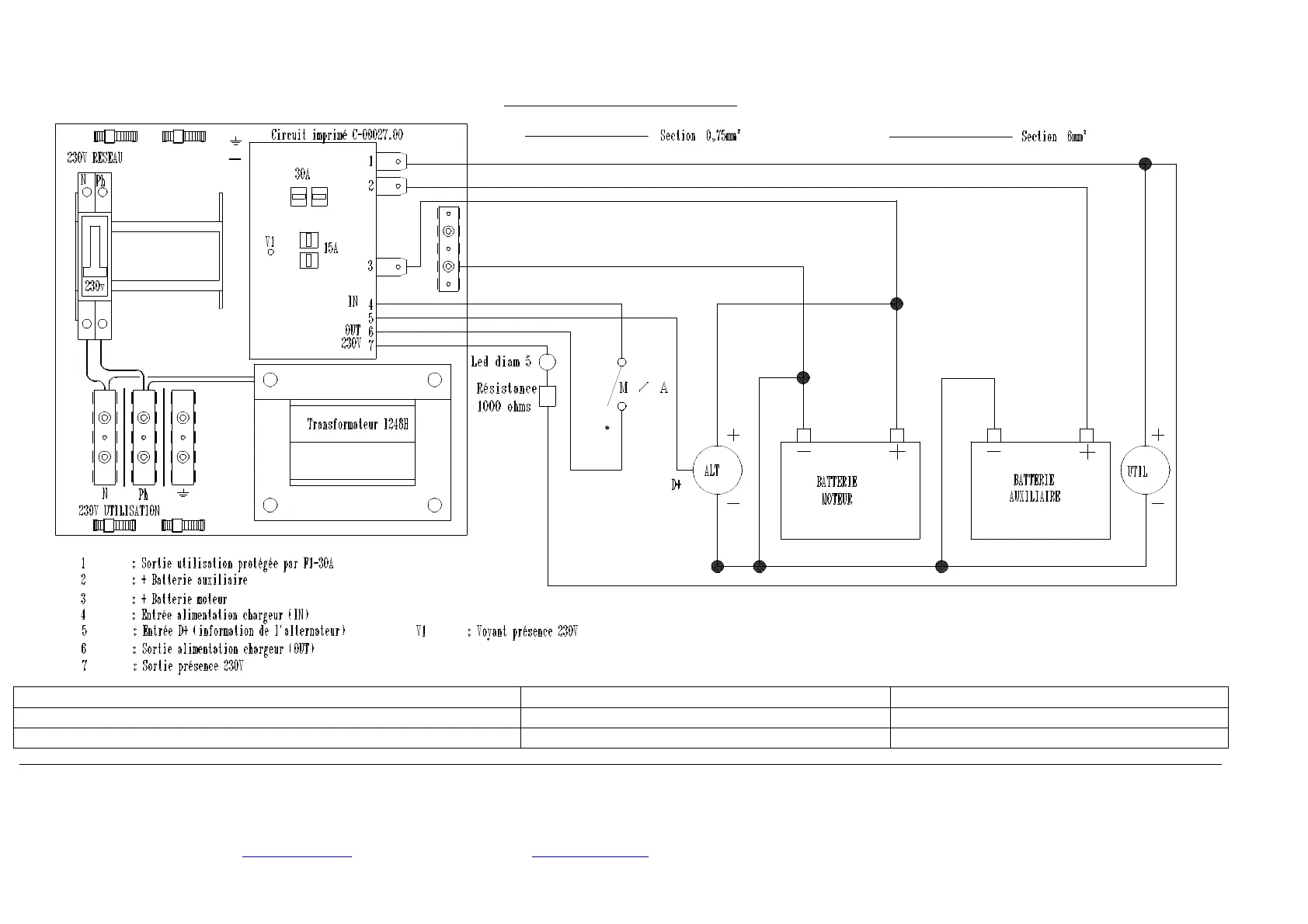

SCHEMA DE BRANCHEMENT
1- Output protected by F1 2- Auxiliary battery 3- Engine battery
4- Charger supply input (IN) 5- Input D+ (alternator information) 6- Charger supply output (OUT)
7- Output toward deported signalling of 230v presence V1 : 230V presence control light

Scheiber BIP 30.65100.48 Specifications

General

Brand	Scheiber
Model	BIP 30.65100.48
Category	Battery Charger
Language	English
