3.8 Safe Access to Car Top and/or Pit in Case of Limited Safety
Space in Endposition EN81-1 and EN81-20
EN81-1 requires a permanent safety space in the end positions of the elevator hoistway.
In installations where the permanent safety space can't be fulfilled due to reduced
headroom and/or pit the required permanent safety space is substituted by a temporary
safety space in line with the state of the art requirements in EN81-21. These installations
are equipped with a type approved TSD (Temporary Safety Device) system.

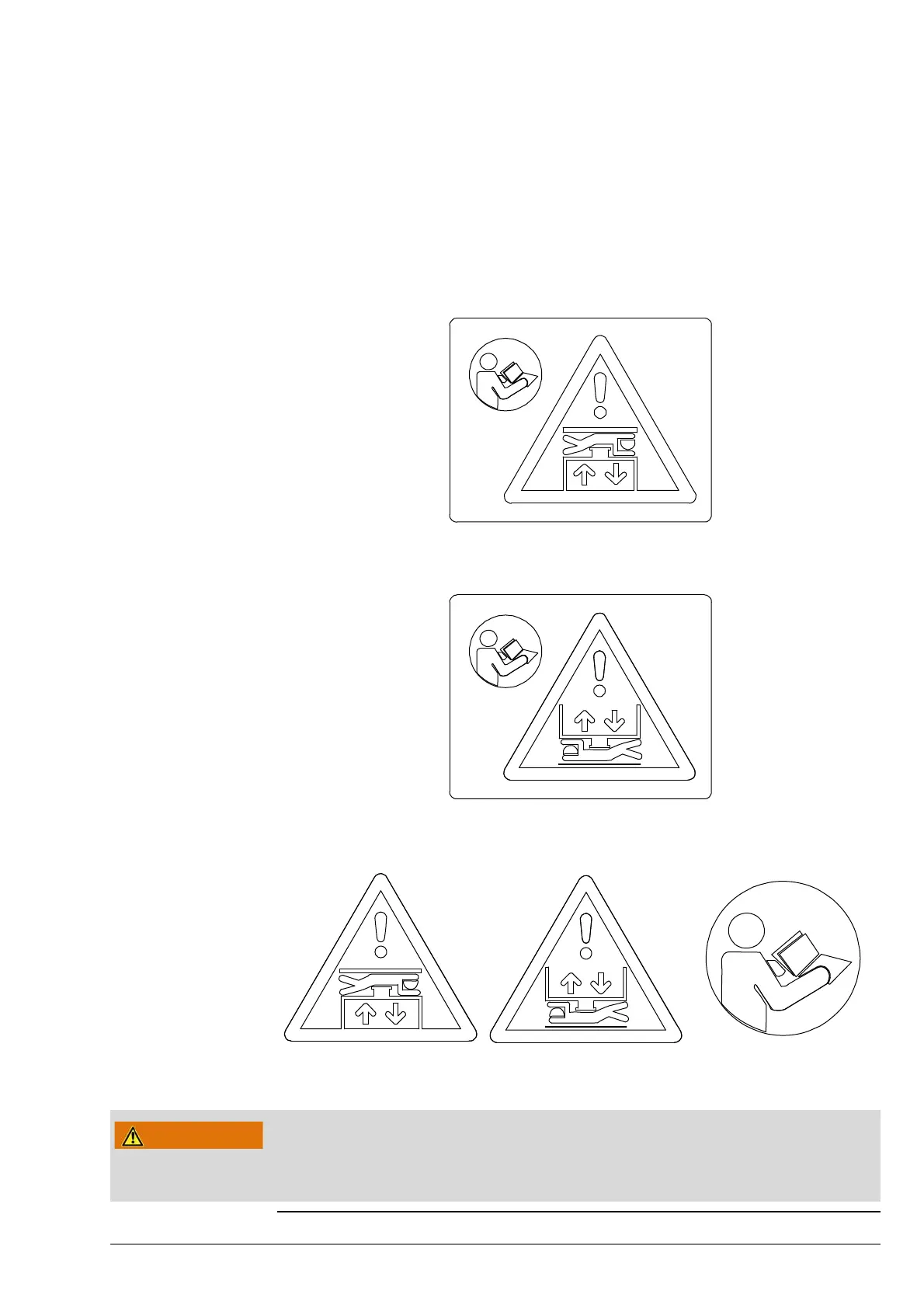

Safety Signs On car roof:
On Car Roof (Crushing+Instruction) [41141759_003; 26.05.2015]
In pit:
In Pit (Crushing+Instruction) [40700160_027; 25.09.2015]
In control cabinet:
Low Head (Crushing)
[41141759_004; 26.05.2015]
Low Pit (Crushing)
[41141759_005; 26.05.2015]
Read Manual
[41141759_005; 26.05.2015]
WARNING
It is forbidden t o manipulate the safety system of the elevator. In a TSD21
equipped elevator it is forbidden to move the car with persons outside the car
and in the hoistway (shaft) as long as the TSD21 system is deactivated due to
risk of crushing.
