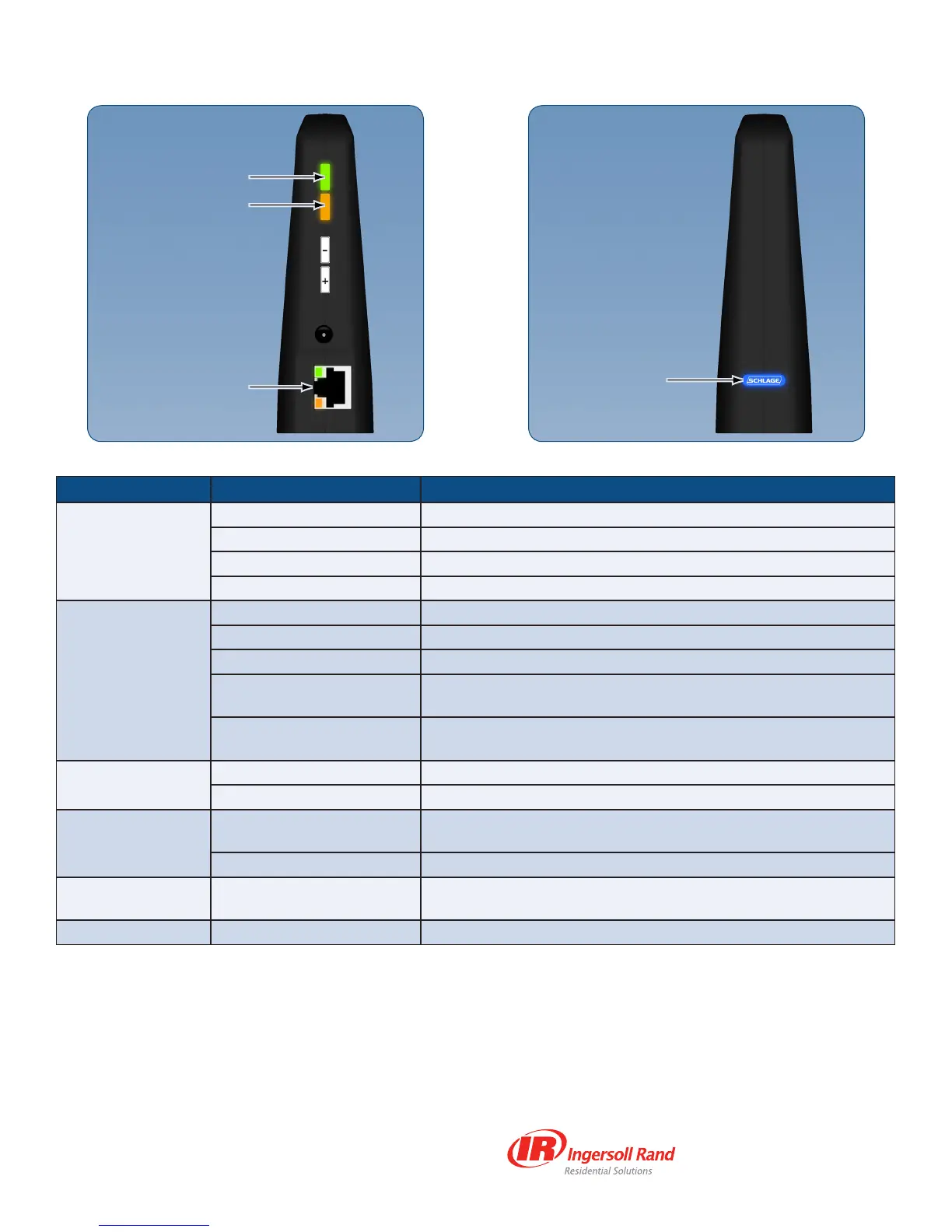

Lights
Server Light
Z-Wave™ Light
Ethernet Lights
Light Light Behavior Action
Orange
(Z-Wave)
slow blink Waiting for enrollment or exclusion to begin
fast blink Enrollment or exclusion is taking place
solid At least one Z-Wave device was enrolled or excluded
flicker Z-Wave activity is detected on the local network
Green
(Server)
solid Connected to the server
flicker Information is being exchanged with the server
2 blinks Ethernet cable is connected, but no Internet connection is found
3 blinks Ethernet cable is connected, Internet connection is established, but
cannot connect to the server
no light
(but orange light is solid)
Ethernet cable is not connected
Blue Schlage solid Bridge is powered by A/C
slow blink Bridge is powered by battery
Blue, Green and
Orange
solid Indicates low battery, when the bridge is not connected to A/C and
battery is installed
no light No A/C or battery
Green and Orange blink simulaneously for 5
seconds
Occurs during reset. After reset, orange light will continue to blink
for 5 seconds.
Ethernet Lights solid or blinking Internet is connected
