Copyright © 2020 Axxiom Manufacturing, Inc. 39
6.2.6. Close the AirPrep System inlet ball valve (#46, provided by user).
The air inlet ball valve is not provided with most AirPrep System. It is the responsibility of
the user to install the inlet ball valve so AirPrep System can be locally isolated from the
compressed air source. See Section 5.1.
6.2.7. Close the drain/blowdown ball valve (#11).

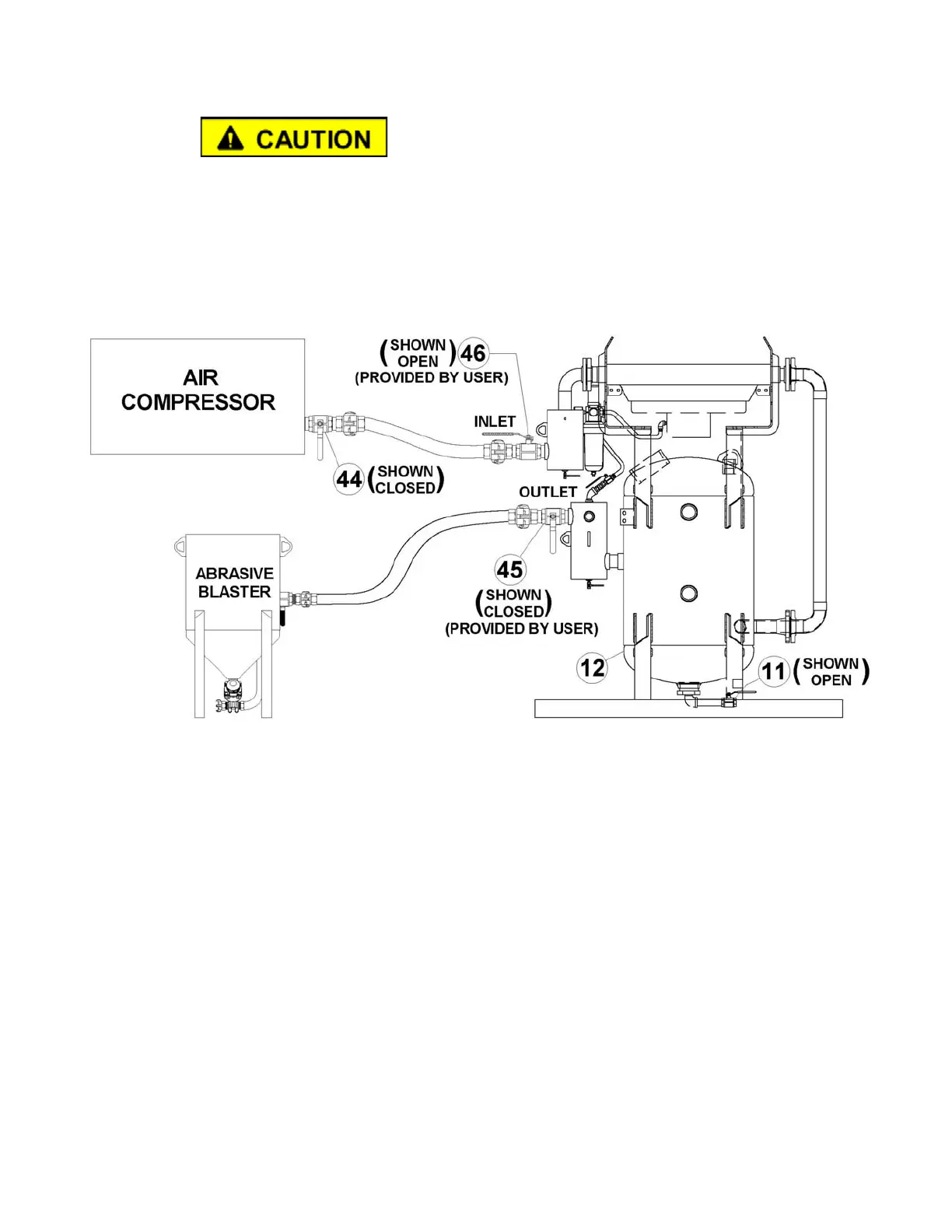

Figure 6.2 – Typical AirPrep System (ADS System shown)
