Schmidt Model 4 - Page 2

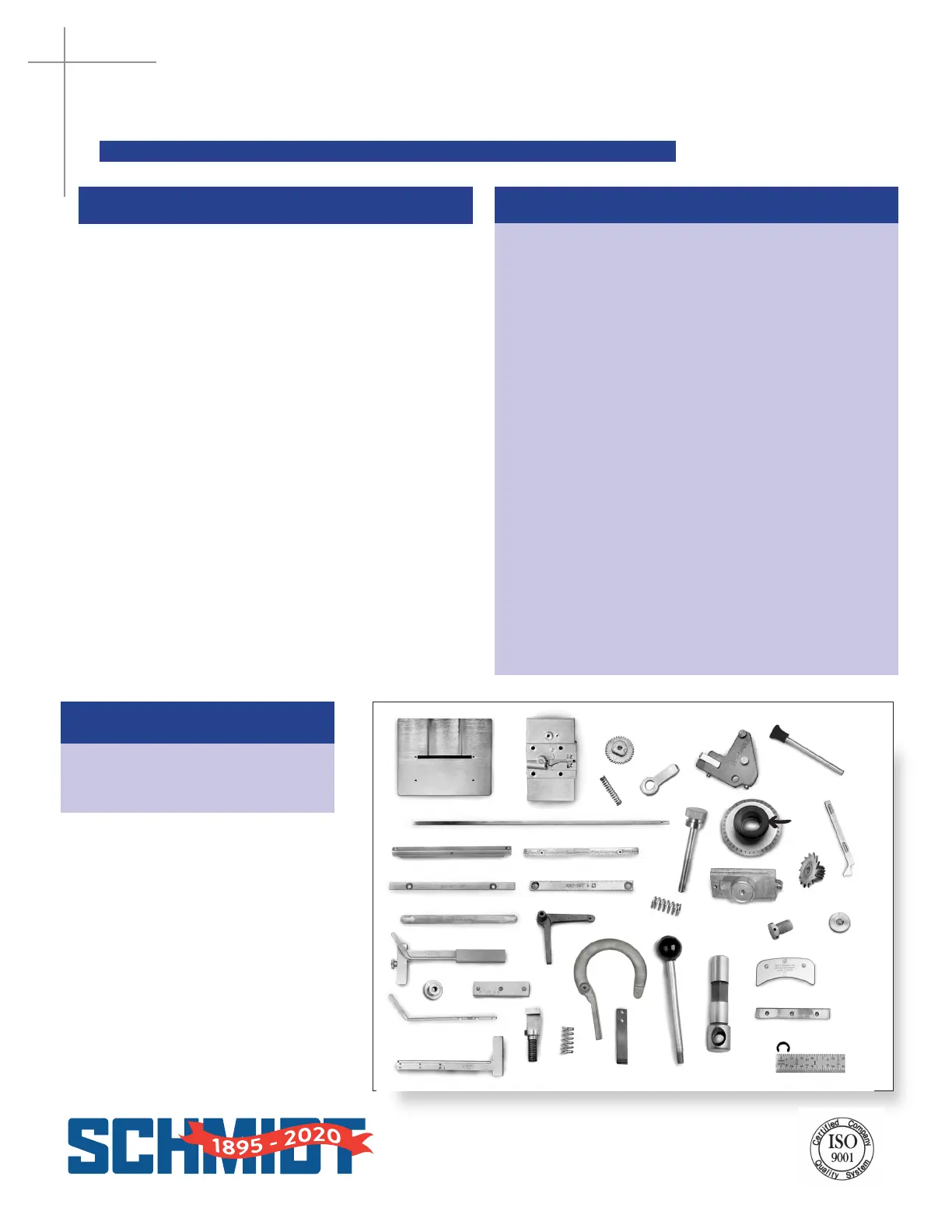

PARTS LIST
MOD E L 4 N A M EPL A T E DE T A IL PRESS
AVAILABLE DIAL SIZES
*Must have character dial size when ordering.
3/32”, 1/8”, 3/16” or 1/4”
Sharp Face Characters Only
Marking Dial Assemblies include: character
dial(#26.), knob(#27.), pointer(#28) and
escapement wheel (#29.) for the dial size
you choose. All dials are interchangeable
on the Model 4
Machines, Dials, and Replacement Parts
can be purchased online at:
https://secure.gtschmidt.com/sunshop/
1. 033025
2. 033023
3. 033062
4. 033080
5. 033031
6. 033033
7. 033020
8. 033058
9. 033076
10. 033060
11. 033022
12. 033027
13. 033082
14. 033097
15. 033091
16. 054791
17. 033088
18. 033090
Table - Model 4
Table Slide Assembly
Drum Gear
Trigger Spring
Stop Arm
Pawl Assembly
Space Button Assembly
Table Spring - Model 4
Anvil
Spacing Rack
Front Guide
Rear Guide
Connector Link Table
Gauge Assembly Table
Gauge Nut
Spring Clamp
Clamp Handle
Table Gauge Bar
19. 033084 Gauge Lock
20. 033147 Crank Spring
21. 033046 Bell Crank - Model 4
23. 033045 Safety Spring
24. 033086 Depth Adjustment Screw
25. Size*
Character Dial
26. 033092 Rubber Knob
27. Size*
Pointer
28. Size*
Escapement Wheel
29. 033074 Ram with Ball Spr
ing
30. 033093 Plunger Spring
31. 033077 Capstan Screw
32. 033081 Washer
33. 033079 Operating Handle Assembly
34. 033078 Cam
35. 033072 Nameplate
36. 033073 Gib
37. 054082 Truarc Ring
Diagram SKU Part Name Diagram SKU Part Name
1.
2.
3.
4.
5.
5.
6.
7.
8.
9 10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
Images for diagram are not to scale of one another
