7 of 13
Service Manual UK English
SITING THE HOB
All Scholtès hobs are suitable for installation over any Scholtès Built -In Ovens. The hob should be
checked to ensure that the voltage corresponds with the voltage supply, this is stated on the rating
plate which is situated on the base panel.

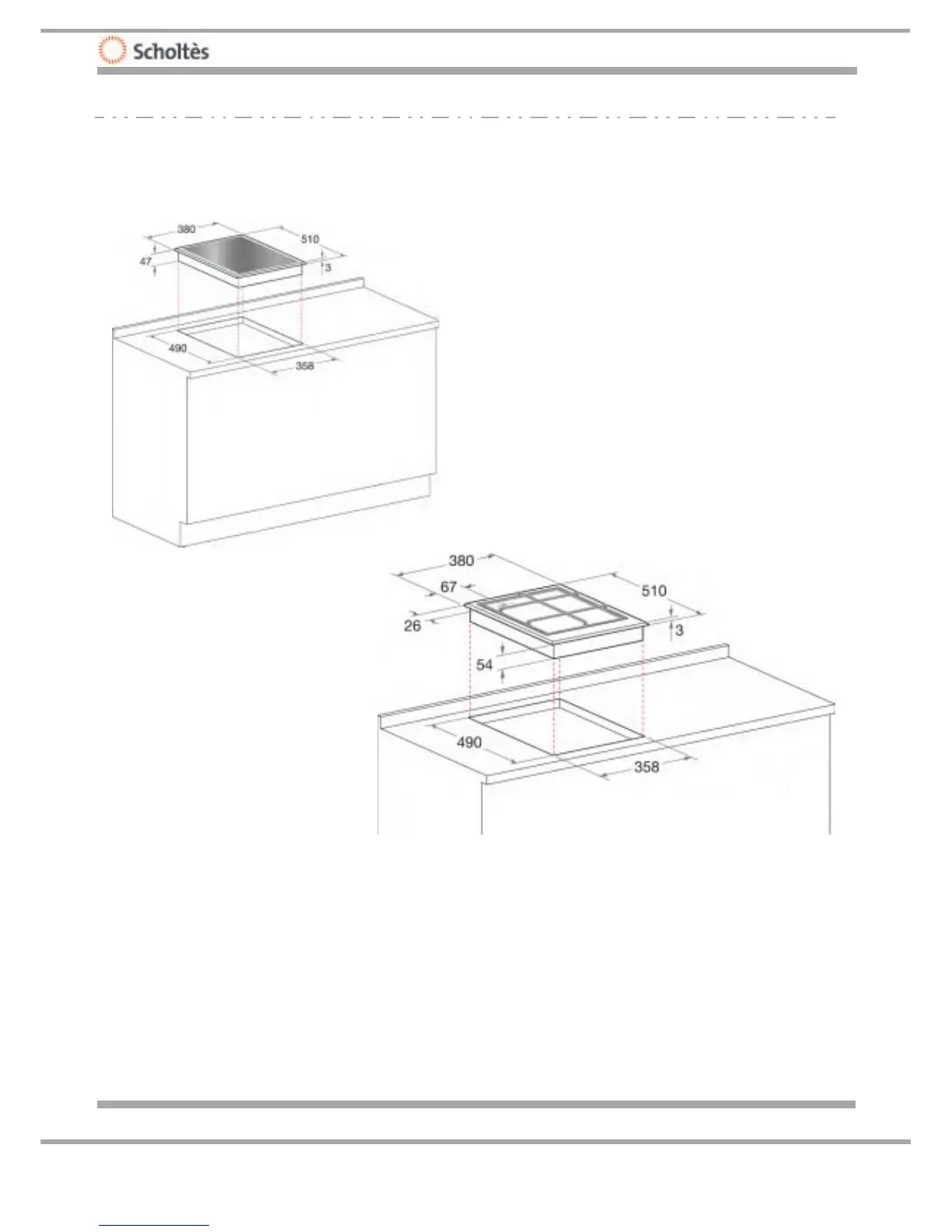

These hobs are designed to fit into a worktop and base unit(s) with a cut-out as shown in Fig. 1.
Fig. 1
PMG42SF
PMG41DCDRSF
Gas Inlet
