Schott provides different material to close the gap between the frames and the side walls. It can be different according
cabinet type and position of the side wall to the frame. The standard delivery consist of a PVC L-profiles (19x19x1mm)
and/or a PVC plates (2000 x 100 x 2 mm). For special cases and bigger gaps on the sides Schott provides specific and
adapted material and a separate drawing
In case of the supply of PVC L-profile and PVC plate:
1- Install the PVC plate flush with the front of the frame to hide the profile
and rivet it in the vertical bar of the frame.
2- Tape the L-profile in the angle between the PVC plate and the side wall
In case of the supply only PVC L-profile:
Tape the L-profile in the angle between the
PVC plate and the side wall

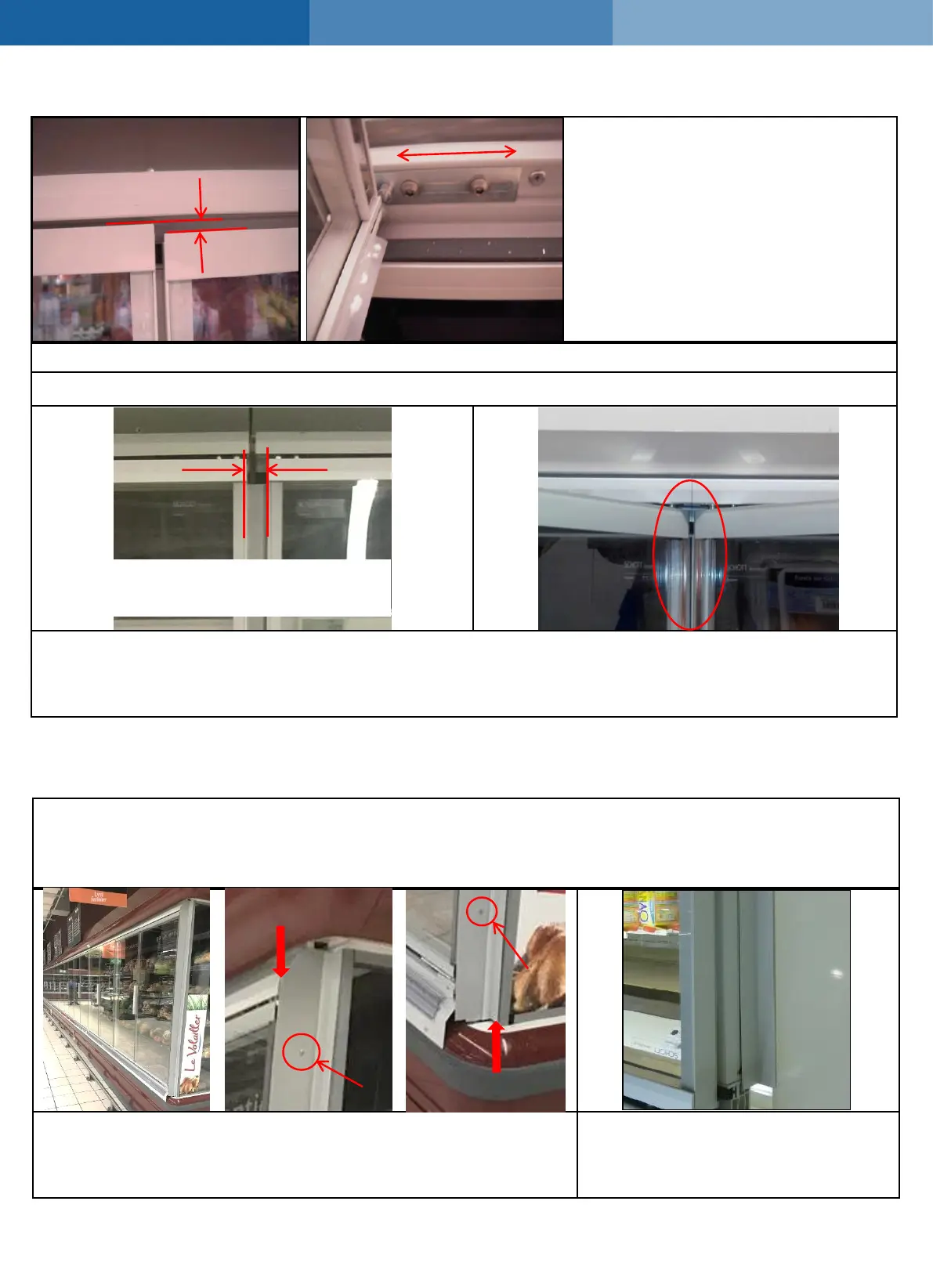

5. Installation | Fine adjusting of the doors
In order to adjust the doors finely, use the upper hinge plate by unscrewing the 2 screws and then moving the door
IMPORTANT NOTE FOR T.AGD3
First check that the distance between the doors on the hinge side is more than 16 mm. Then make sure that the glasses
do not touch each other during opening at around 45° of the two doors at the same time.
If the distance is less than 16 mm, don't open the doors at the risk of glasses touching each other and break,
please modify slightly the adjustment on the upper slider (see above)
Warning : minimum distance
between the doors is 16 mm
5. Installation | Closing the cabinet on the sides using the delivered material
