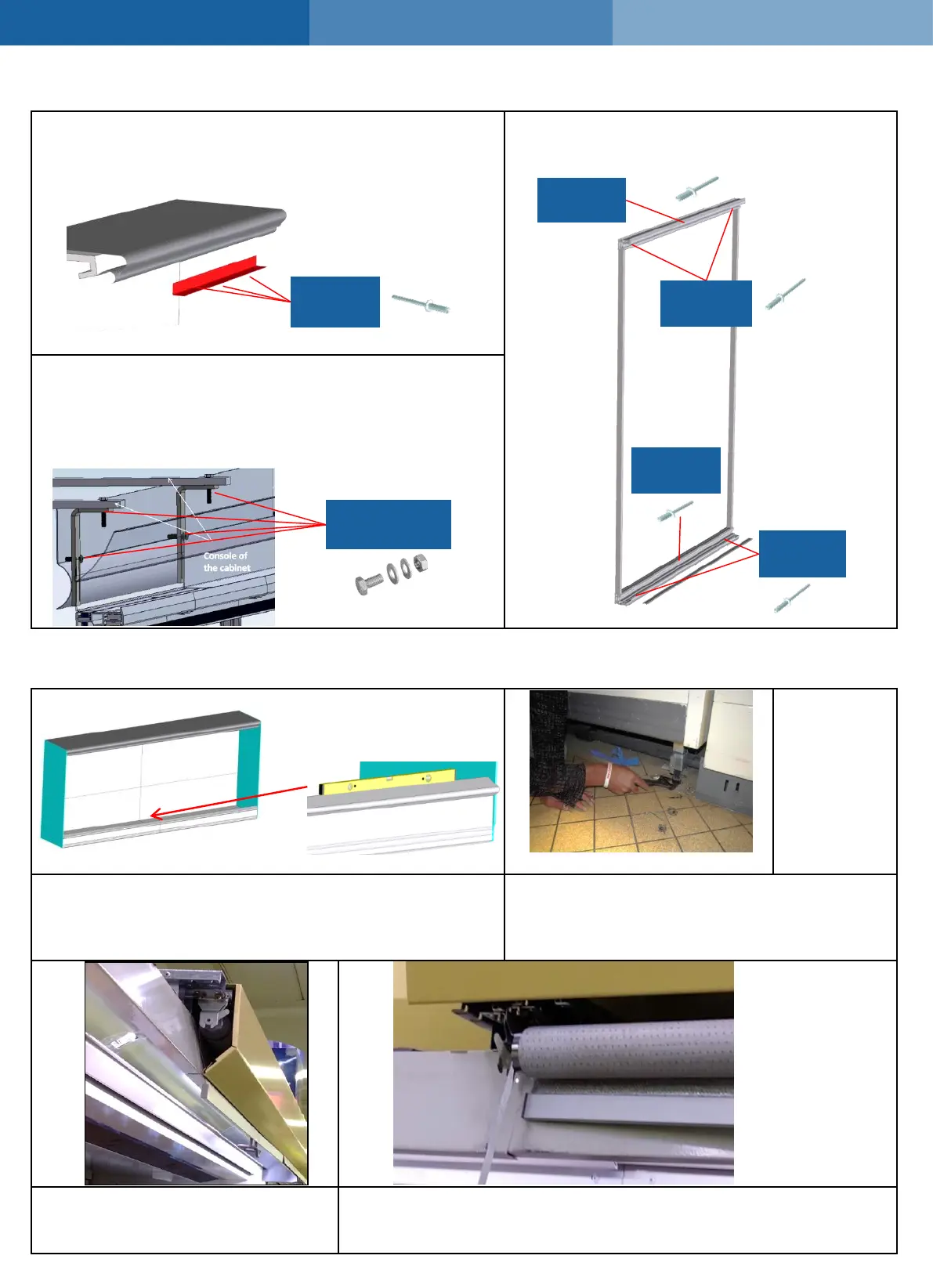

Fixation of the upper adapter to the cabinet. Check the drawing
provided by Schott..
Rivets not provided.
Fixation of the frame to the adapters.
Rivets not provided.
Fixation of the upper adapter to the console of the cabinet.
the drawing provided by Schott
Screws, nut and washer provided.
*Warning: Do
move the
cabinet
upwards with
care to avoid
breaking the
tubing at the
back of the
cabinet!
Check that the lower side of the cabinet is in correct horizontal
position
Use a water level tool to verify
Most of cabinets have feets which can be used to
adjust the level and inclination. Use tools like monkey
wrenches or universal lock pliers and control again
with water level.
Remove the upper cover In case night curtains are in place remove them. If it doesn't interfere with the
installation of the doors, disable the functionality by unplugging them.
3. Recommended accessories for the installation
X
X
X
Alu Rivet
Ø4,8x10
Alu Rivet
Ø4,8x25
Alu Rivet
Ø4,8x10
Alu Rivet
Ø4,8x25
Alu Rivet
Ø4,8x10
Screw M6, nut
and washer
4. Installation | Preparing the cabinet
