SCHOTT Termofrost
®
SCHOTT Termofrost
®

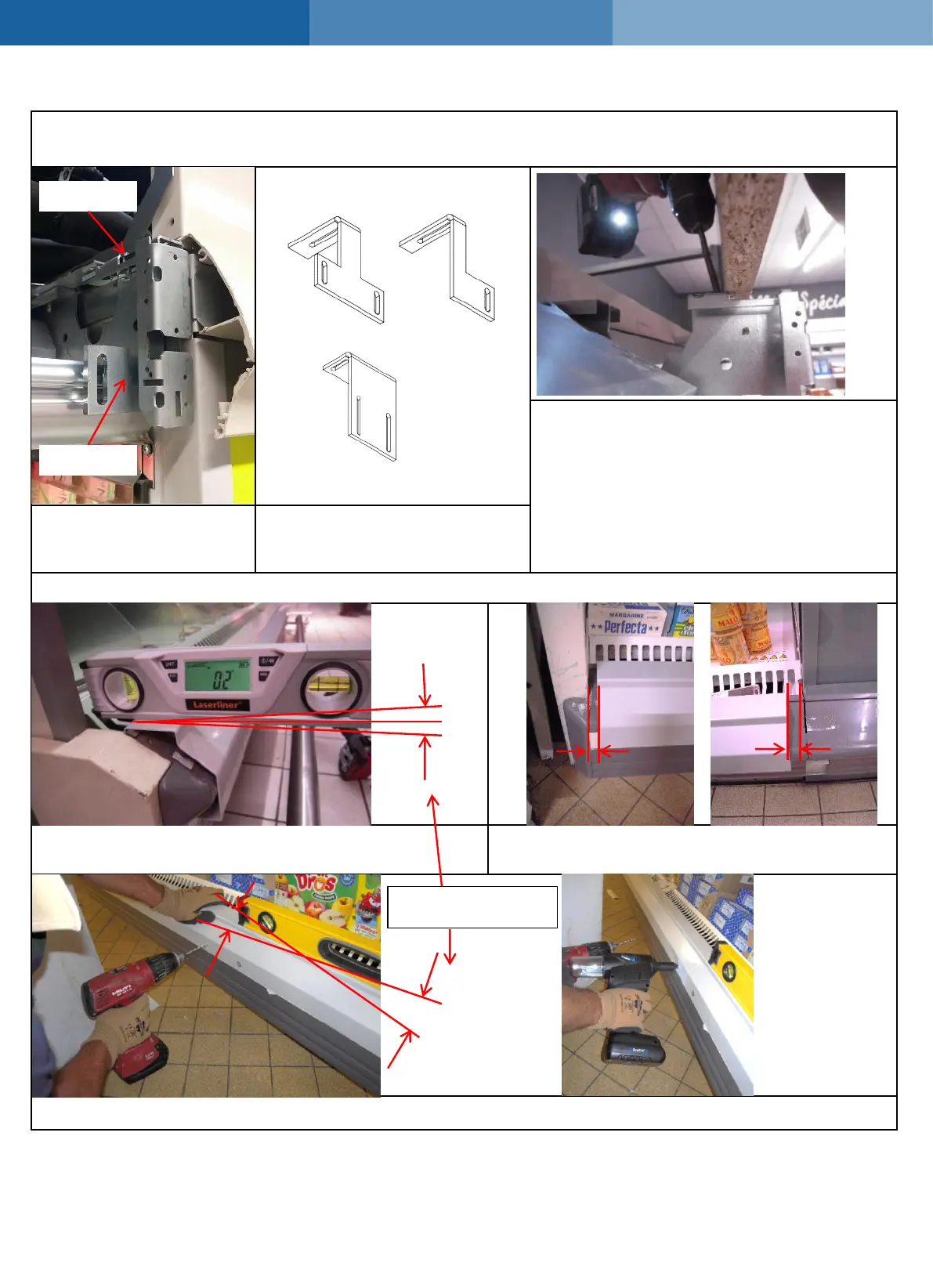

Page 6
Important Remark: L-consoles are provided only for some cabinets. Check on the overview if they are in the delivery. If
not skip the below step.
Depending on the fridge it may be necessary to
drill a 7 mm hole in the upper console.
Fix the L-console to the
cabinet console with the
provided M6 screw.
There are different L-consoles for
different cabinets
Important Remark: Schott provides with all deliveries a sketch showing where the adapter is fixed to the cabinet !
Position the bottom adapters in level Distribute the gap between adapters and sidewalls
identically on both side
Fixing of the adapter from the front side using 3 alu rivets Ø4,8x25.
4. Installation | Preparing the cabinet
+1
-1
0
Tolerance +/- 1°
recommended*
=
=
M6 screw
L-console
