Page 6 of 12

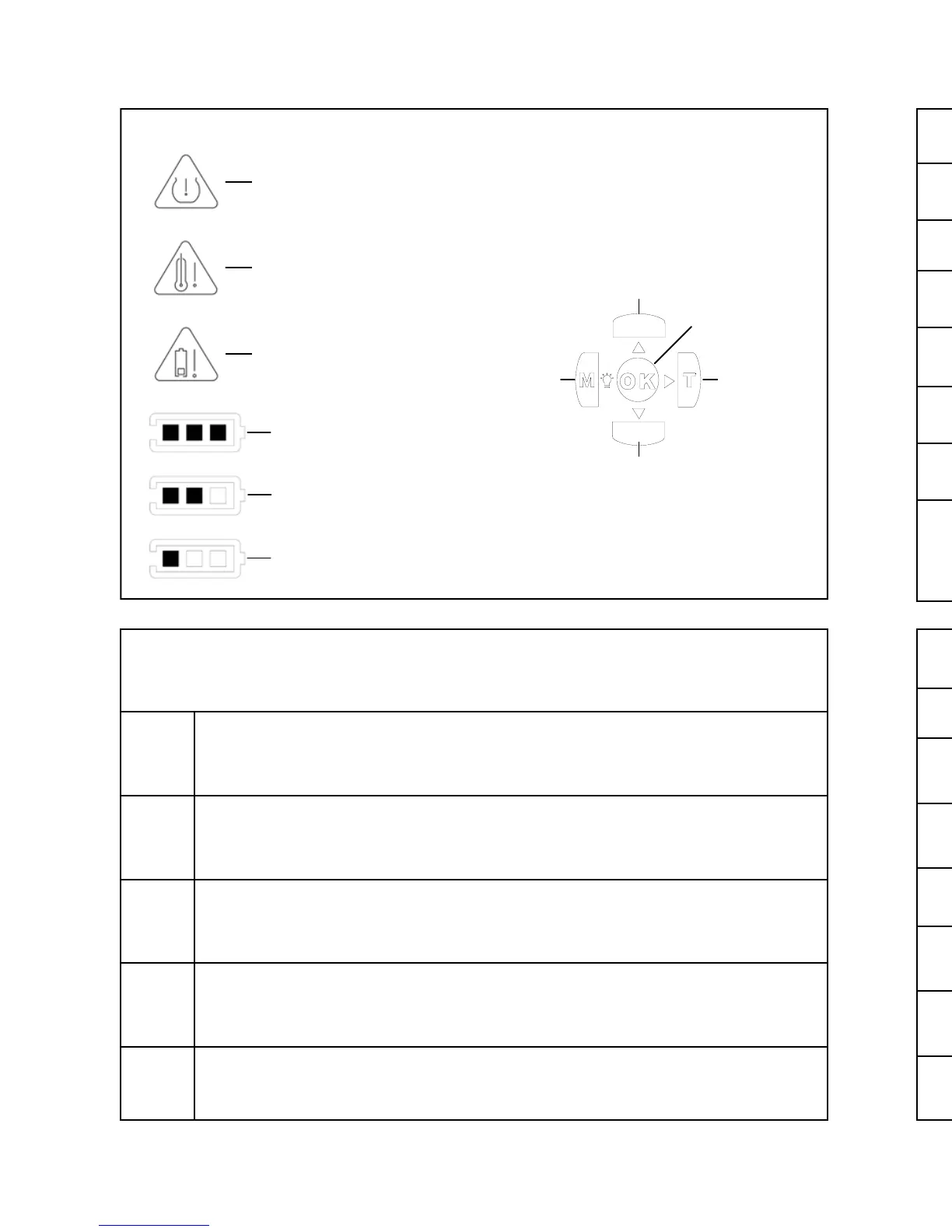

10. Front Panel Legend
Pressure
Warning
Over-temperature
Warning
Sensor Low
Battery Warning
Clockwise /
DOWN
Counter-
Clockwise / UP
Menu /
Backlight
Toggle
Toggle
Rotation /
Accept
▲
Rotate displayed tire counter-clockwise
▼
Rotate displayed tire clockwise
“T” Toggle automatic rotation on display
“M” Momentary=Backlight toggle, Press & hold=Programming Menu
“OK” Temporarily silence alarm condition (sound only)
11. Normal User Features
Save Settings
Battery Full
Battery Half
Battery Low
Page 7 of 12
Operating Temperature Range -40 to 212°F (-40 to 100°C)
Operating Humidity 85%
Weight 32 grams
Size (LxWxH)
2.25 x 0.91 x 0.51 in
(57 x 23 x 13mm)
Battery Life (Projected) 10 years normal use
Transmitter Frequency 433.920MHz (+/- 100kHz)
Transmitter Activation
Pressure Change or
Speed over 25 mph (40km/h)
12. Technical Specifications - Sensor
Power Supply 3V DC (2 x AA Cells)
Current Consumption
200uA (standby), 3mA (nominal)
40mA (alert)
Operating Temperature Range -40 to 185°F (-40 to 85°C)
Weight 72 grams (without batteries)
Size (LxWxH)
1.26 x 3.66 x 1.69 in
(32 x 93 x 43mm)
Monitored Temperature range -40 to 257°F (-40 to 125°C)
Monitored Pressure range 0 to 101.5 PSI (0 to 700kPa)
13. Technical Specifications - Receiver
