3. INSTALLING THE FAN MOTOR TO HANGER BRACKET.

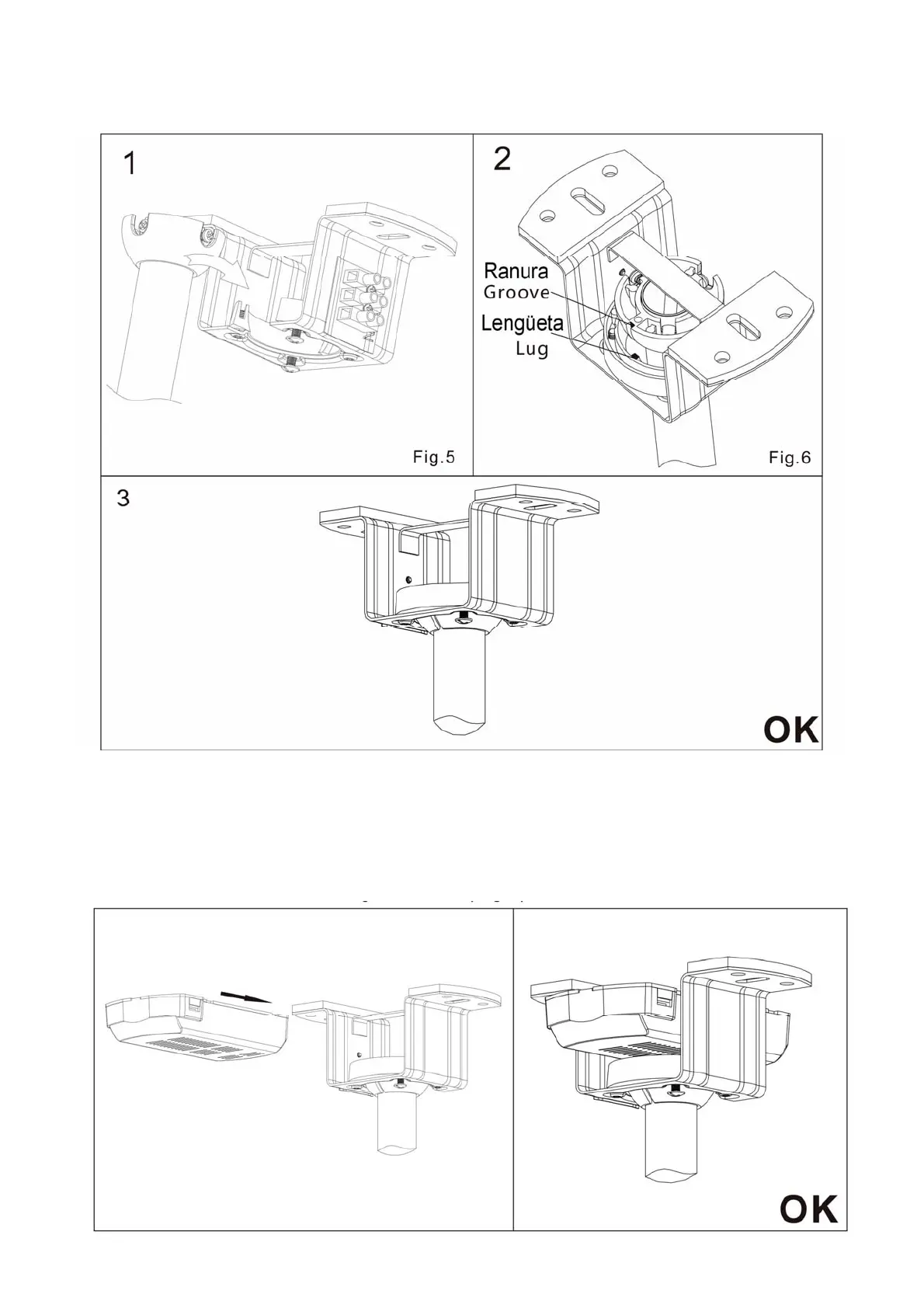

A.Hangingthe fan motor into hanger bracket.(Fig.5)
B.Lockthe groove of the ball mount into the lug of the hanger bracket.(Fig.6)
NOTE: To avoid wobbling and vibrations, make sure the ball is properly seated on the mounting
bracket ring, and the tab matches the groove.
4- WIRING CONNECTION
A. Insert the controller into hanger bracket.(Fig.7)
