Operating the device
Whenever the window or door on which the sensor is installed is opened or closed, the
sensor transmits a corresponding wireless signal.
Communication with a
battery-operated device
The device is battery-powered and to
save power it is thus usually in deep
sleep mode. In deep sleep mode the
device cannot receive any wireless sig
-
nals. Therefore a (static) controller is
required, which is mains powered and
therefore always available for wireless
data transmission.
This controller - for example, an IP
gateway - manages a message mail
-
box for this battery-powered device, in
which messages to the device can be
temporarily stored. Without such a static controller using this battery-operated device will
quickly discharge the battery or render use completely impossible.
This device regularly „wakes up,“ reports this by sending a so-called wake up notification,
and then empties its mailbox in the static controller. The node ID of the controller and a
wake up interval must be defined with the inclusion. If the inclusion is carried by means
of a static controller such as an IP Gateway, the controller will automatically perform this
configuration and usually offer a user interface, to adapt the wake up interval to user
needs. The wake up interval is a compromise between maximum battery life and mini
-
mum response time of the battery-powered device.
Opening the cover and thus activating the manipulation-free safety switch wakes up the
device and keeps it awake.
It is possible to specify the device number 255 as the destination device for the wake up
notification. In this case, the message is sent as a broadcast to all devices with direct
wireless connection. The advantage of immediate notification is offset by the disadvan
-
tage that, where appropriate, the device consumes more time in active mode and thus
more battery capacity.

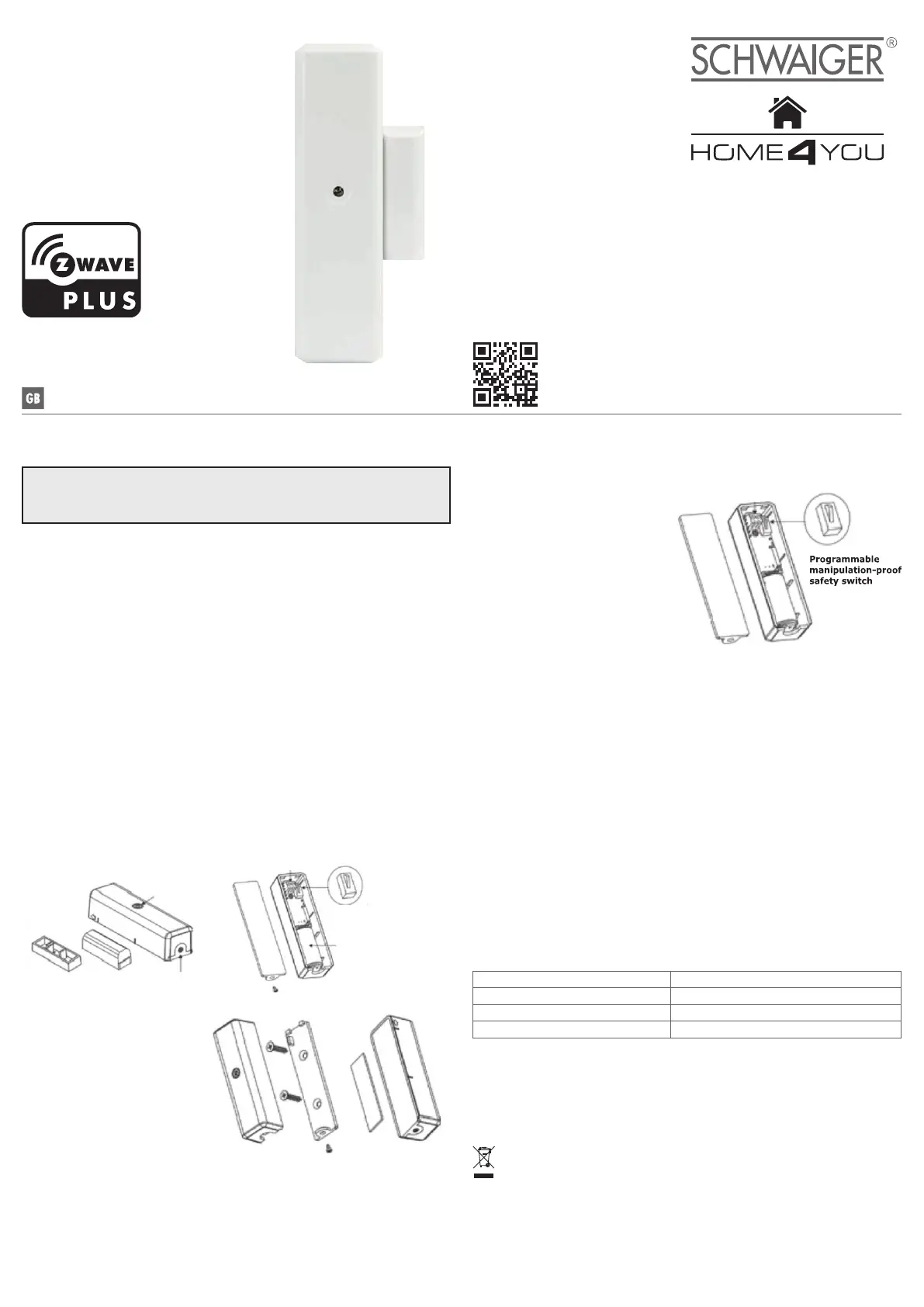

USER MANUAL ZHS09
DOOR AND WINDOW SENSOR
ZHS09
Congratulations and thank you for purchasing the Schwaiger
ZHS09 product. Below you will find useful operating guidelines.
Product description
This sensor provides information on whether a window or a door is open or closed. The
device consists of a magnet which is attached to the movable part of the window or the
door as well as the main unit, which can be mounted on the fixed part. It is mounted
with screws or doubled-sided tape. The ZHS09 is a battery-powered device. The bat
-
teries can be replaced without removing the attachment of the device. The unit also
has a manipulation security feature, which sends an alarm to the controller in the event
of unauthorized removal of the device. The door/window sensor ZHS 09 can report the
status of the sensor via Z-wave to a controller or control other Z-Wave devices directly,
depending on the sensor condition.
Batteries
This device is operated with batteries. Use only batteries of the specified type. Used bat-
teries contain hazardous substances and must not be disposed of with household waste!
Battery type: 1 x C123A
Installation guidelines
1.
Loosen the screw on the cover and slide the cover down.
2.
Insert the CR123A battery into the battery holder. The LED will slowly start lighting
up. This means that the device has not yet been incorporated into the Z-Wave
network.
3.
To install the sensor attach the cover using screws or double sided tape on the
opening part of the window or door.
Disposal
Do not dispose of batteries or electric and electronic devices in the normal house-
hold waste. The consumer is legally obliged to return electrical and electronic de-
vices and batteries that are at the end of their useful life to the point of sale or
public collection points that have been set up for this purpose. Legislation in the
country of use governs individual details regarding disposal. The symbol on the product,
the user guide or the packaging indicates this legal requirement.
Simplified declaration of conformity as per the RED Directive
Schwaiger GmbH hereby declares that the described radio system product complies with
Directive 2014/53/EU and other directives applicable to the product. The complete EU
declaration of conformity is available online at: http://konform.schwaiger.de
Fastening with
screws or adhesive
tape
Functioning of the device in the Z-wave network
When delivered, the device is not yet connected to a Z-wave network. It must be inte-
grated into an existing Z-Wave network so that it can communicate with other Z-Wave
devices. This process is called Z-Wave inclusion. Devices can also be removed from net
-
works again. This process is called Z-Wave exclusion. Both processes are started from a
controller that must be connected to an inclusion and/or exclusion mode. The manual of
the controller contains information on how it is to be connected in these modes.
Devices can only be added when the controller of the Z-Wave network in in inclusion
mode. Leaving the network by exclusion will reset this device to its factory defaults. Set
the controller into the inclusion/exclusion mode.
Technical specifications
Console Magnet Screw
Cover
Connection for external circuit
Programmable
manipulation-proof
safety switch
LED
Battery
Logging in (inclusion) or logging out (exclusion) of the sensor
By pressing the manipulation-proof safety switch for one second you confirm
the inclusion and exclusion of the device.
BDA_ZHS09_b
MANUFACTURER INFORMATION
Dear Customer,
should you require technical advice
and your retailer could not help
please contact our technical support.
Schwaiger GmbH
Würzburger Straße 17
90579 Langenzenn
Hotline: +49 (0) 9101 702-199
www.schwaiger.de
homeautomation@schwaiger.de
Usableness im Haus
Type of battery 1 x C123A
Transmitting power < 1 mW
Frequency 868,42 MHz (Z-Wave)
