9

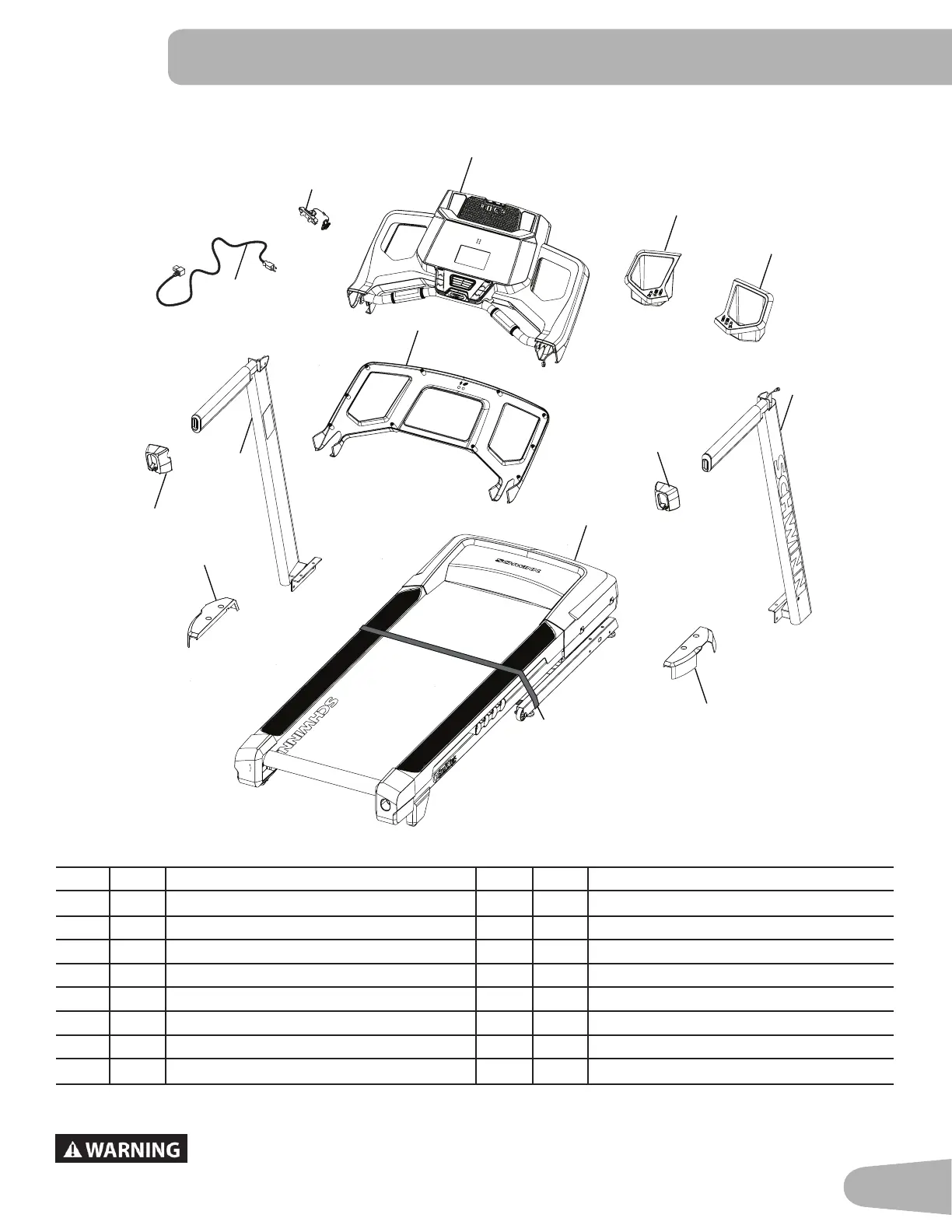

PARTS
1
3
4
5
8
6
12
9
7
11
10
2
13
*
Item Qty Description Item Qty Description
1 1 Console Assembly 9 1 Base Shroud, Left
2 1 Console Backing 10 1 Upright, Left
3 1 Tray, Left 11 1 Handlebar Shroud, Left
4 1 Tray, Right 12 1 Power Cord
5 1 Upright, Right 13 1 Safety Key
6 1 Handlebar Shroud, Right 14 1 Media Cable (not shown)
7 1 Base Shroud, Right 15 1 Silicone Lubricant, Bottle (not shown)
8 1 Base Assembly ( * )
DO NOT CUT the Shipping Strap on the Base Assembly until it has been placed face up as
shown in the appropriate work space ( * ).
