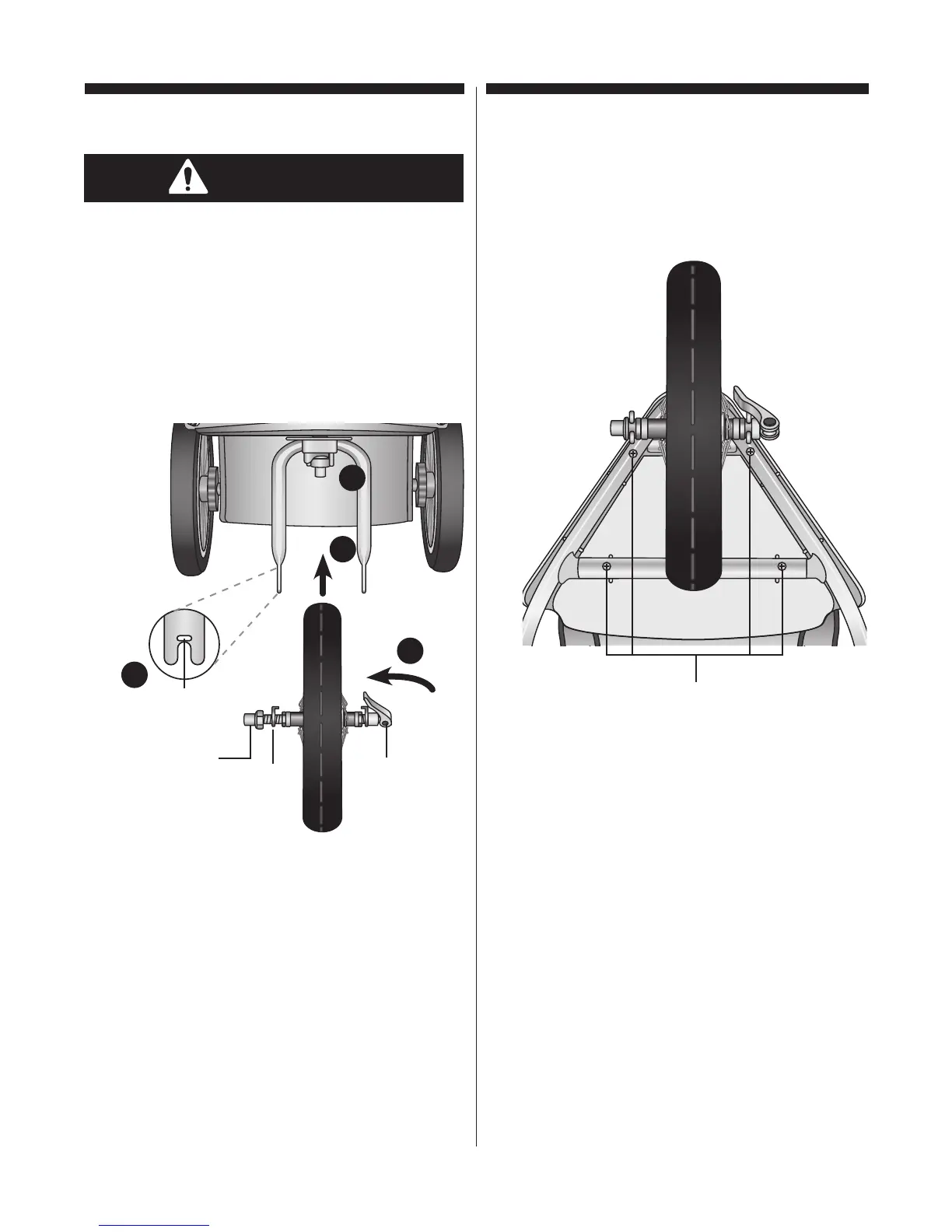

Attach the Front Wheel
WARNING!
If the front wheel is not securely locked in place it
may fall off the Jogging Stroller and cause serious
injury or death. Always check the front wheel is
securely locked in place before use.
Attach the Front Fender
2.
1.
Place the front fender on the frame and over
the front wheel.
Align the mounting holes with the holes in the
frame.
Quick
release
lever
Insert tab washer
into hole
3.
Set wheel into the forks, making sure the axle
is properly seated.
Insert the tab washer into the slot on the fork,
both sides. Hand tighten the cone nut.
Close the quick release lever to the fully
closed locked position. When closing the lever
it should leave an imprint on your hand. The
lever should have firm but not excessive pres-
sure.
Pull on the wheel to ensure it is locked in
place. If necessary loosen the quick release
lever and retighte
n the cone nut. Re-check
the wheel.
1.
2.
4.
Position the stroller so the handle rests on the
ground (front fork is now up).
To ease assembly, lock the front fork (see
Page 11 for details).
6.
2
3
5.
Tab
washer
Cone nut
4
5
3.
Insert the screws through the holes in the
If the front wheel wobbles or shakes, tighten the
nut that holds the fork stem to the frame. This
nut is located underneath the front fender. Do
not overtighten the nut as damage to the fork
and frame could occur or swiveling function
may cease.
frame and tighten the front fender to the
frame. Be sure the front wheel does not rub
against the front fender.
Insert screws (four places)
