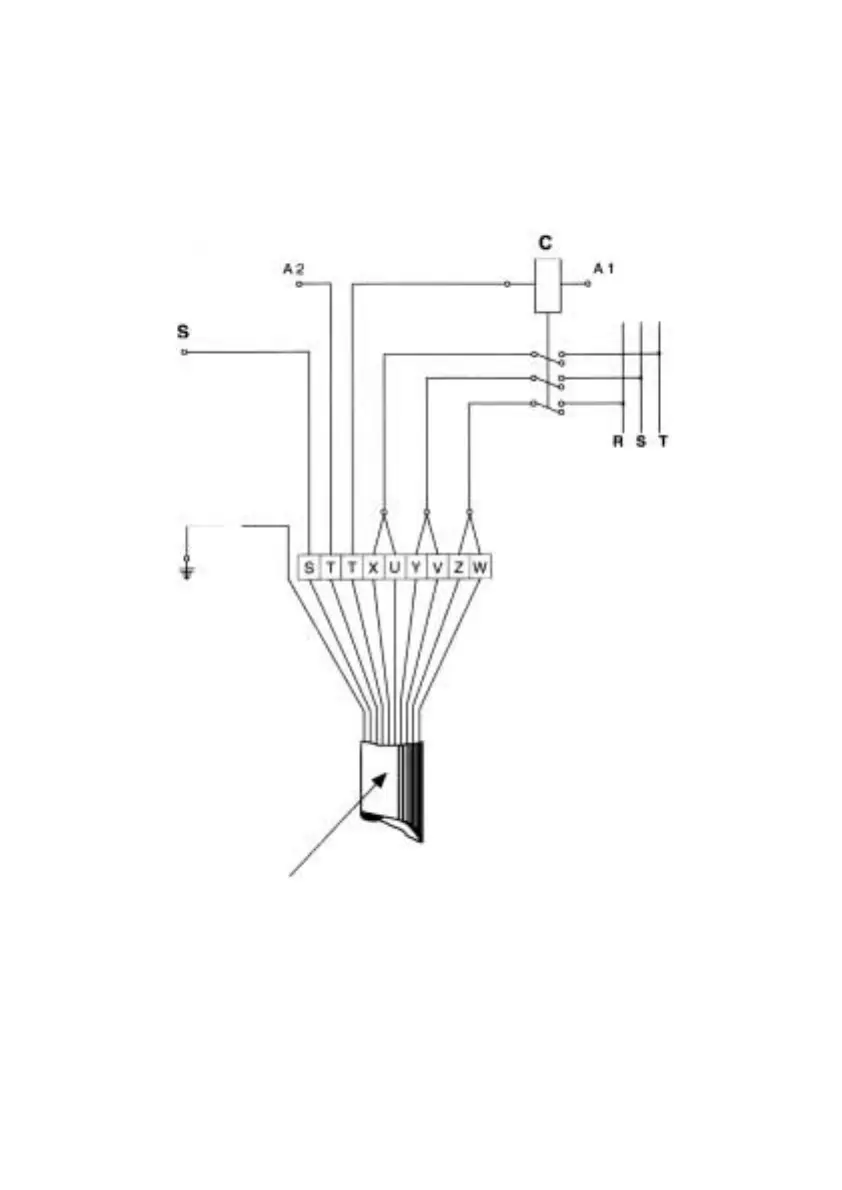

Electrical connection diagram

Direct connection 380V

for motor type FXXX

10 LEAD ELECTRIC

AERATOR CABLE

X U = 400V MAINS

Y V = 400V MAINS

Z W = 400V MAINS

T T = Thermal probes ( to be connected in series to the coil of the standard testing meter)

S = Humidity electrode

To be connected to the water-probe

only if the aerator is equipped with

specific control panel.
