Scosche FD3090 - Page 4

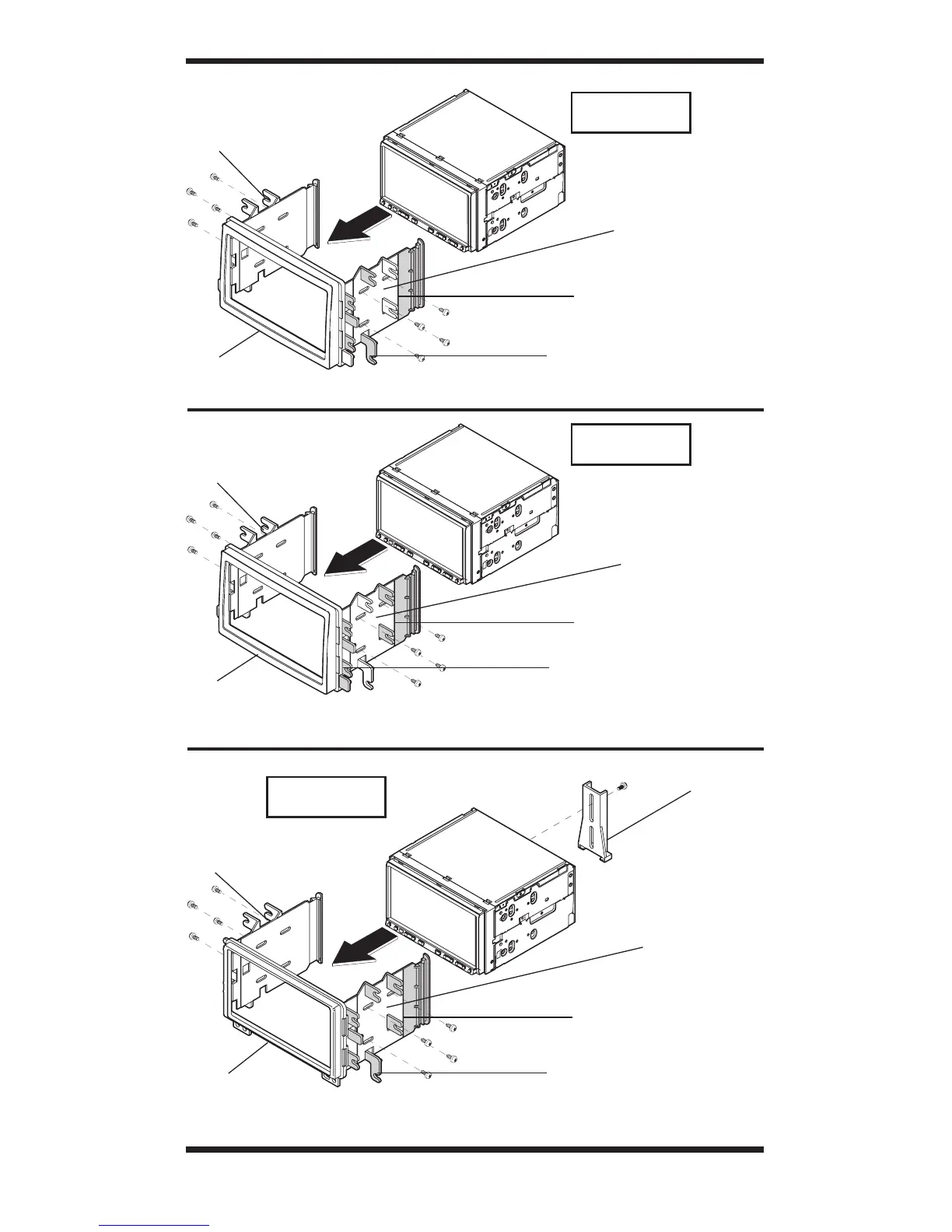

FIGURE 4
AFTERMARKET
DOUBLE-DIN
STEREO
CUT AT SCORE LINE AND
DISCARD SHADED PORTION
(BOTH BRACKETS)
CUT OFF AND DISCARD ALL
SHADED TABS (BOTH BRACKETS)
7021 MOUNTING BRACKET
7022 MOUNTING
BRACKET
7019 TRIM
PANEL
FIGURE 5
AFTERMARKET
DOUBLE-DIN
STEREO
CUT AT SCORE LINE AND
DISCARD SHADED PORTION
(BOTH BRACKETS)
CUT OFF AND DISCARD ALL
SHADED TABS (BOTH BRACKETS)
7021 MOUNTING BRACKET
7022 MOUNTING
BRACKET
7019 TRIM
PANEL
FIGURE 6
7022 MOUNTING
BRACKET
7020 TRIM
PANEL
1525 REAR SUPPORT
BRACKET
AFTERMARKET
DOUBLE-DIN
STEREO
CUT AT SCORE LINE AND
DISCARD SHADED PORTION
(BOTH BRACKETS)
CUT OFF AND DISCARD ALL
SHADED TABS (BOTH BRACKETS)
7021 MOUNTING BRACKET
