MOUNTING THE AFTERMARKET STEREO
1. After removing specified tabs, snap mounting brackets to trim panel as shown.
2. Slide Double-DIN head into back of kit. Align screw holes with mounting slots on
brackets, and secure in place using screws supplied with aftermarket stereo.

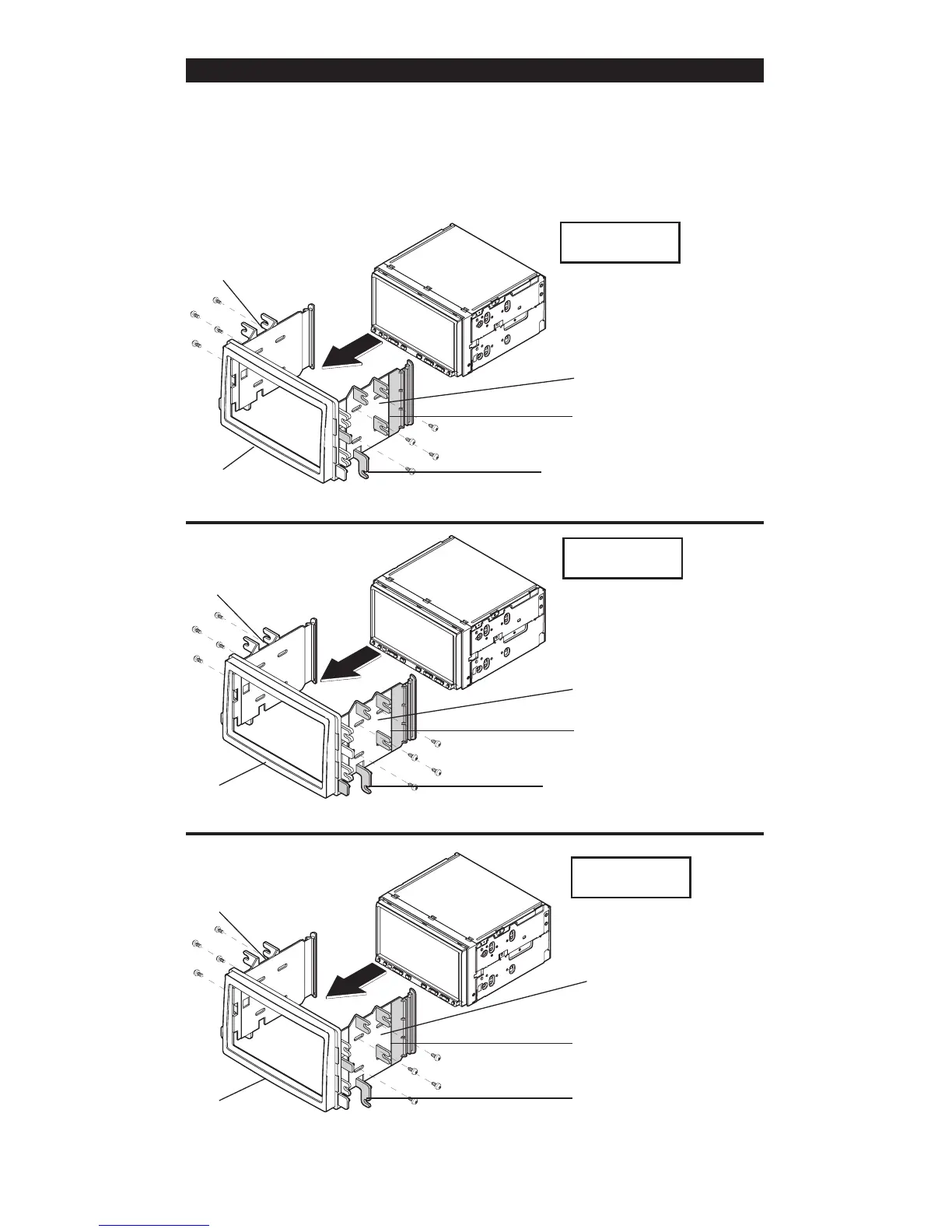

DOUBLE DIN INSTALLATION (FIGURES 1-6*)
CUT AT SCORE LINE AND
DISCARD SHADED PORTION
(BOTH BRACKETS)
FIGURE 1
CUT OFF AND DISCARD ALL
SHADED TABS (BOTH BRACKETS)
7022 MOUNTING
BRACKET
7021 MOUNTING BRACKET
7019 TRIM
PANEL
*BEFORE BEGINNING: Refer to Factory Stereo Removal section (pgs. 6-8) to
determine the proper kit configuration for your vehicle.
USE 7023 & 7024 SPACERS
(BOTH BRACKETS )
NOTE:
WHEN USING SPACERS
ATTACH KIT TO VEHICLE DASH
WITH SUPPLIED BLACK SCREWS
AFTERMARKET
DOUBLE-DIN
STEREO
CUT AT SCORE LINE AND
DISCARD SHADED PORTION
(BOTH BRACKETS)
FIGURE 2
CUT OFF AND DISCARD ALL
SHADED TABS (BOTH BRACKETS)
7022 MOUNTING
BRACKET
7021 MOUNTING BRACKET
7019 TRIM
PANEL
USE 7023 & 7024 SPACERS
(BOTH BRACKETS)
NOTE:
WHEN USING SPACERS
ATTACH KIT TO VEHICLE DASH
WITH SUPPLIED BLACK SCREWS
AFTERMARKET
DOUBLE-DIN
STEREO
FIGURE 3
AFTERMARKET
DOUBLE-DIN
STEREO
CUT AT SCORE LINE AND
DISCARD SHADED PORTION
(BOTH BRACKETS)
CUT OFF AND DISCARD ALL
SHADED TABS (BOTH BRACKETS)
7021 MOUNTING BRACKET
7022 MOUNTING
BRACKET
7019 TRIM
PANEL
To Next Page
